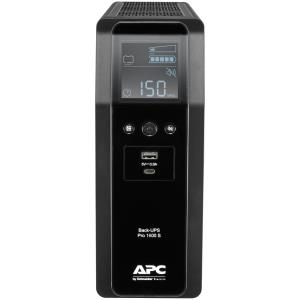

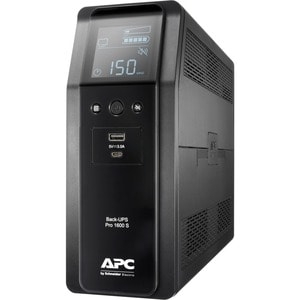

Apc - Schneider Back UPS Pro BR 1600VA. Sinewave.8 Outlets. AVR. LCD interface BR1600SI
SKU
368707
Brand
MPN
BR1600SI
Warranty
Standard Manufacturer's Warranty
$757.00
Buy Now And Earn 757 Reward Points!
BR1600SI Features
Key Features
Run time for load
Min-max: 96-960 W
W
3m 36s
Max. Capacity Used
Output power capacity
960 Watts / 1.6kVA
Output Connections
(6) IEC 60320 C13 (Battery Backup)
(2) IEC 60320 C13 (Surge Protection)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C14
Back UPS Pro BR 1600VA, Sinewave,8 Outlets, AVR, LCD interface
High Performance Computer and Electronics UPS for Premium Power
Protection
Includes: USB cable, User manual
-
Audible alarmsProvides notification of changing utility power and UPS power conditions
-
Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.
-
Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenance
-
Battery replacement without toolsEnables fast battery replacement, lowering Mean Time to Repair (MTTR).
-
Battery-protected and surge-only outletsReserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
-
Boost and Trim Automatic Voltage Regulation (AVR)Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
-
Cold-start capableProvides temporary battery power when the utility power is out.
-
Dataline surge protectionProvides protection of connected equipment from power surges on the data lines.
-
Disconnected battery notificationWarns when a battery is not available to provide backup power.
-
Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replaced
-
LCD graphics displayText and mimic diagrams that display modes of operation, system parameters and alarms.
-
PowerChute Personal Edition OS CompatibilityThis software supports numerous operating systems and processors. For further information, please
br a href="http://www.apc.com/wp/?um=300" click here./a -
Safety-agency approvedThe UPS is UL1778 Listed
-
Sine wave outputEliminates humming and heat generated when powering tube lights and fans
-
USB connectivityProvides management of the UPS via a USB port (not available on all models).
-
User-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Back UPS Pro BR 1600VA, Sinewave, 8 Outlets, AVR, LCD interface.
High Performance Computer and Electronics UPS for Premium Power
Protection
Guides & Documents
Controls/Indicators
Status Indicators | LCD Interface:
|
Battery Information
Battery Chemistry | Lead Acid |
Replaceable Battery | Yes |
Management
Alarm | Low Battery |
On Battery | |
Replace Battery |
Technical Information
Application/Usage | Multimedia Device |
Business | |
Desktop Computer | |
Electronic Equipment | |
SOHO Office | |
Home | |
Workstation | |
Dataline Protection | RJ-45 |
Overload Protection | Yes |
Receptacles | 8 x IEC |
2 x USB Outlet | |
Plug/Connector Type | IEC |
AVR | Yes |
Number of Battery & Surge Outlets | 6 |
Number of Surge-only Outlets | 2 |
Physical Characteristics
Weight (Approximate) | 12.10 kg |
Form Factor | Tower |
Height | 368 mm |
Width | 100 mm |
Depth | 260 mm |
Power Description
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Load Capacity | 1.60 kVA/960 W |
Waveform Type | Sine Wave |
Output Frequency | 50 Hz to 60 Hz |
Input Frequency | 50 Hz to 60 Hz |
General Information
Product Type | Line-interactive UPS |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Model | BR1600SI |
Product Name | Back-UPS Pro BR1600SI 1600VA Tower UPS |
Product Line | Back-UPS Pro |
Product Series | BR |
Brand Name | APC by Schneider Electric |
