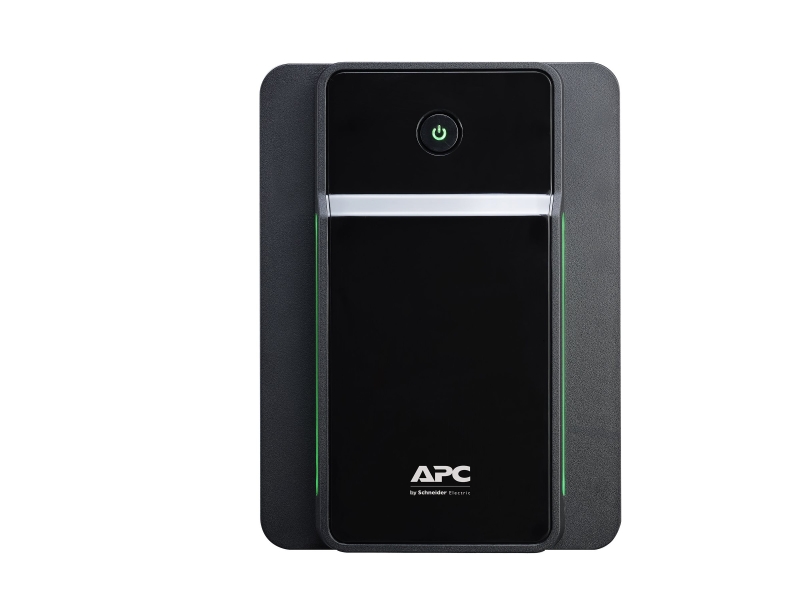

APC BACK-UPS (BX) 1200VA, 230V, AVR, 2 YEAR WTY BX1200MI-AZ
SKU
307815
Brand
MPN
BX1200MI-AZ
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$238.00
Buy Now And Earn 238 Reward Points!
BX1200MI-AZ Features
Key Features
Run time for load
Min-max: 65-650 W
W
1m 1s
Max. Capacity Used
Output power capacity
650 Watts / 1.2kVA
Output Connections
(4) Australian (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C14
Cord Length
4ft (1.2meters)
APC Back-UPS 1200VA, 230V, AVR, Australian Sockets
Battery Backup & Surge Protector for Electronics and Computers
Includes: User manual
Back-UPS Features & Benefits
Marketing features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Protection
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability
LED status display
Quickly understand unit and power status with visual indicators.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Product Distribution
Australia
Output
Max Configurable Power (Watts)
650 Watts / 1.2kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations
140 - 300V
Number of Power Cords
1
Input Power Factor at Full Load
0.54
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
8hour(s)
Expected Battery Life (years)
3 - 5
Battery Volt-Amp-Hour Capacity
108
Runtime
Efficiency
Communications & Management
Control panel
LED Status display with on line : on battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating
273Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection
| Product Description | APC Back-UPS BX Series BX1200MI-AZ - UPS - 650 Watt - 1200 VA |
| Device Type | UPS - external |
| Weight | 7.6 kg |
| Localisation | Australia |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ? 10% |
| Power Capacity | 650 Watt / 1200 VA |
| Input Connectors | 1 x power IEC 60320 C14 |
| Output connectors | 3 x power |
| Battery | Lead Acid |
| Run Time (Up To) | 1 min at full load |
| Colour | Black |
| Dimensions (WxDxH) | 14 cm x 39 cm x 19 cm |
| Manufacturer Warranty | 2-year warranty |
APC BACK-UPS (BX) 1200VA, 230V, AVR, 2 YEAR WTY
