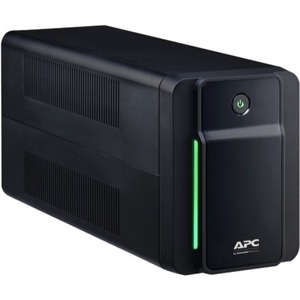

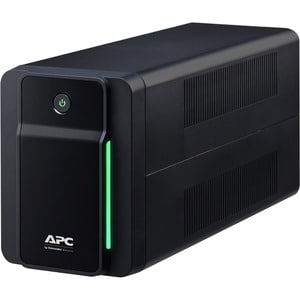

Apc - Schneider BACK-UPS 750VA 230V AVR AUSTRALIAN SOCKETS BX750MI-AZ
SKU
367359
Brand
MPN
BX750MI-AZ
Warranty
Standard Manufacturer's Warranty
$163.00
Buy Now And Earn 163 Reward Points!
Battery Backup & Surge Protector for Electronics and Computers
The Back-UPS battery backup offers guaranteed power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. Models supply battery backup during outages and unsafe voltage fluctuations, as well as provide protection from damaging surges and spikes. They're available in 'tower' or 'floor' styles, and together with a variety of standard features, they are the perfect choice to protect your data and keep you connected.
Guides & Documents
Controls/Indicators
Status Indicators |
LED Status Display:
|
Miscellaneous
Package Contents |
|
Warranty
Limited Warranty | 2 Year |
Management
Alarm | On Battery |
Low Battery |
Environmental Conditions
Sound Emission | 40 dB(A) |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 914.40 m |
Maximum Storage Elevation | 914.40 m |
Storage Temperature | -15°C - 40°C |
Physical Characteristics
Weight (Approximate) | 5.40 kg |
Form Factor | Tower |
Height | 160 mm |
Width | 120 mm |
Depth | 355 mm |
Technical Information
Application/Usage | Home |
Wireless Local Loop | |
Business | |
Electronic | |
Computer | |
Gaming Console | |
Mission Critical Equipment | |
Dataline Protection | RJ-45 |
Receptacles | 3 x AUS |
Plug/Connector Type | IEC 60320 C14 |
AVR | Yes |
Transfer Time | 6 ms |
Battery Information
Battery Chemistry | Lead Acid |
Battery Capacity | 388.8 kJ |
Backup/Run Time (Half Load) | 6.30 Minute |
Backup/Run Time (Full Load) | 12 Second |
Replaceable Battery | Yes |
Typical Battery Recharge Time | 8 Hour |
General Information
Product Type | Line-interactive UPS |
Manufacturer Part Number | BX750MI-AZ |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Name | Back-UPS 750VA Tower UPS |
Product Line | Back-UPS |
Brand Name | APC by Schneider Electric |
Power Description
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Load Capacity | 750 VA/410 W |
Surge Energy Rating | 273 J |
Waveform Type | Stepped Approximated Sine Wave |
Input Voltage Range | 140 V AC - 300 V AC |
Output Frequency | 50 Hz to 60 Hz |
Input Frequency | 50 Hz to 60 Hz |
