MPN	C000000L066B
SKU	C000000L066B
Brand	Cambium Networks
Model	cnPulse
Category	Networking
Warranty	1 year
Condition	New
Description	cnPulse is a GPS/GNSS sync generator designed for Cambium Networks PMP and PTP radios to provide precise TDD synchronization. It uses a 1PPS timing signal, integrates with CambiumSYNC, and requires no software configuration. The unit is IP67 rated for rugged environments, supports wide temperature operation, and can be powered either from the ODU AUX port (Mode 1) or from the CAT-5 drop cable (Mode 2) so no external power supply is required. A single cnPulse can provide synchronization to two APs by using Mode 1 on the first ODU and Mode 2 on the second ODU.
Key Features	Precise time and frequency synchronization for TDD networks GPS/GNSS receiver with 1PPS timing Integrates with CambiumSYNC IP67 weatherproof rating for rugged outdoor use Wide operating temperature range (rugged environments) No configuration or software settings required
Product Line	Enterprise
Product Type	Synchronization / Sync Generator
Sub-Category	Wireless Networking
Compatibility	Designed for Cambium Networks PMP and PTP radios; can provide sync to two APs using Mode 1 and Mode 2 across ODUs
Power Options	Mode 1: Powered from ODU AUX port Mode 2: Powered from CAT-5 drop cable No external power supply required

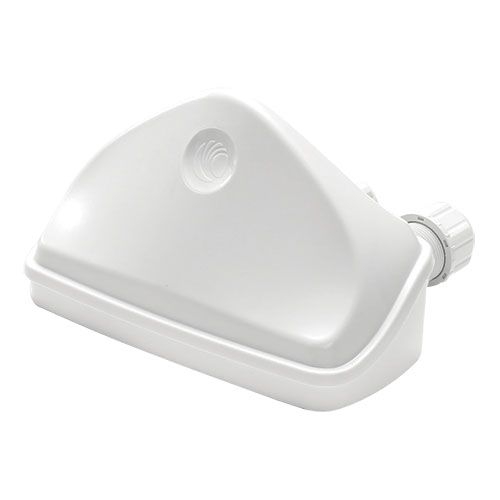

Product Title	Cambium Networks cnPulse Sync Generator (C000000L066B)
Old Part Number	C000000L066A
Synchronization	GPS/GNSS 1PPS (one pulse per second) timing
Country of Origin	China
Environmental Rating	IP67 (weatherproof); wide temperature range for rugged environments
Manufacturer Part Number	C000000L066B

Cambium Networks Cambium cnPulse Sync Generator with CambiumSYNC is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: CB30148. Order online for Australia-wide delivery with local support.
