SKU	C000065L002D
Brand	Cambium Networks
Model	C000065L002D
Ports	2 x RJ-45 (Data In; Data + Power Out)
AC Input	90–264 VAC, 47–63 Hz
DC Input	48 VDC (acceptable DC input)
Features	AC + DC inputs; redundant configuration support for high availability; meets Level VI efficiency and regulatory compliance for broad deployments
Replaces	C000065L002C
Interface	Gigabit Ethernet (GbE)
Efficiency	Level VI

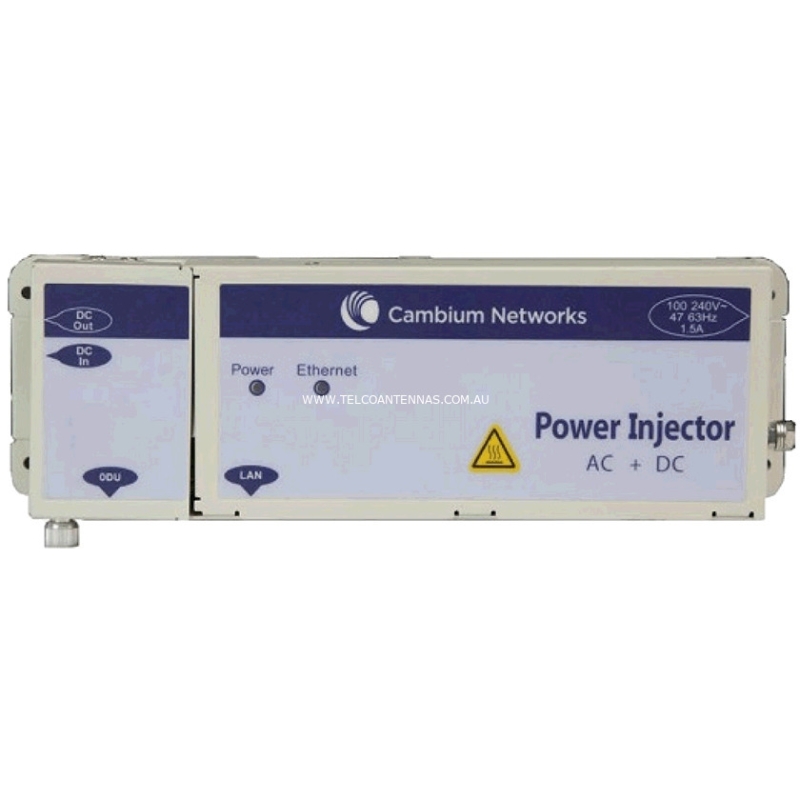

Description	The Cambium Networks AC+DC Enhanced Power Injector (C000065L002D) delivers up to 100 W of PoE power and data over Gigabit Ethernet with a 58 V DC output. It accepts AC or DC input (90–264 VAC, 47–63 Hz or 48 VDC), meets Level VI efficiency, and operates across a wide temperature range (-40 to 60 °C / -40 to 140 °F). Designed for use with PTP 650/670 radios and the ODU auxiliary port, the injector includes 2x RJ-45 ports (Data In; Data+Power Out) and can be configured for redundant, high-availability deployments.
Output Type	PoE (Power + Data over Ethernet)
Output Power	100 W (maximum)
Compatibility	Cambium PTP 650 / PTP 670 radios; ODU auxiliary port (can power devices such as cameras or APs)
Product Title	Cambium Networks AC+DC Enhanced Power Injector (C000065L002D) — 58V, 100W, GbE PoE
Output Voltage	58 V DC
Country of Origin	China
Manufacturer Part Number	C000065L002D
Operating Temperature Range	-40 to 60 °C (-40 to 140 °F)

Cambium Networks Cambium PTP 670 AC+DC Enhanced Power Injector is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: CBPP670AD. Order online for Australia-wide delivery with local support.
