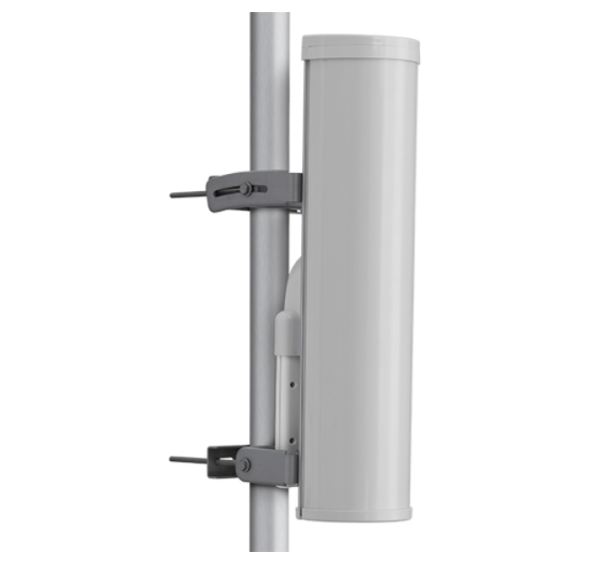

Cambium Epmp Sector Antenna, 5 GHz, 90/120 With Mounting Kit C050900D021B
SKU
381631
Brand
MPN
C050900D021B
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$330.00
Buy Now And Earn 330 Reward Points!
ePMP Sector Antenna, 5 GHz, 90/120 with Mounting Kit
| Gain | 18 dBi |
|---|---|
| Brand | Cambium Networks |
| Model | C050900D021B |
| Series | ePMP 2000 |
| Category | Networking |
| Replaces | C050900D021A |
| IP Rating | IP65 |
| Description | Cambium Networks ePMP 2000 sector antenna (C050900D021B) is a 5 GHz outdoor sector antenna engineered for high-density point-to-multipoint deployments. It provides 18 dBi gain across the 4.9–5.97 GHz band (reported also as up to 6.0 GHz), a 35 dB front-to-back ratio, excellent null-fill for consistent sector coverage, and IP65 environmental protection. Designed for ABAB frequency reuse and integrated ePMP radio/GPS mounting, the antenna includes a complete mounting kit for mast installation and is modeled in LINKPlanner for predictable network planning. |
| Polarization | Horizontal and Vertical |
| Sub-Category | Wireless Networking |
| Product Title | Cambium Networks ePMP 2000 5 GHz 90/120° Sector Antenna (C050900D021B) with Mounting Kit |
| Frequency Range | 4.9–5.97 GHz |
| Input Impedance | 50 ohms |
| Radome Material | UV-protected ABS |
| Electrical Downtilt | -2° |
| Front-to-Back Ratio | 35 dB |
| Maximum Input Power | 5 W |
| Mounting Connectors | 2 × RP-SMA |
| Compatibility / Notes | Integrated mount and GPS antenna integration; designed for ePMP point-to-multipoint deployments; modeled in Cambium LINKPlanner |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Weight (Antenna Body) | 8.8 lbs (4.0 kg) |
| Country of Manufacture | China |
| Port-to-Port Isolation | > -30 dB |
| 3 dB Beamwidth (Azimuth) | 90° |
| 6 dB Beamwidth (Azimuth) | 120° |
| Manufacturer Part Number | C050900D021B |
| Dimensions (Antenna Body) | 23.4 x 6.2 x 4.3 in (584 x 157 x 110 mm) |
| 3 dB Beamwidth (Elevation) | 6° |
| Mounting Mast Diameter Range | 2 to 4 in (5 to 10 cm) |
| Dimensions (With ePMP 1000 Access Point) | 23.4 x 6.2 x 5.9 in (593 x 157 x 150 mm) |
| Mounting Hardware / Included Accessories | Antenna body ePMP 1000 holder ePMP 2000 sector mount Environmental cover 2 pole brackets 2 front mast clamps 2 rear mast clamps 4 M8 x 160 bolts 4 M8 x 12 screws 8 M8 nuts 2 RP-SMA cables |
| Weight (With ePMP 1000 and Mounting Brackets) | 11.6 lbs (5.26 kg) |
Cambium ePMP Sector Antenna, 5 GHz, 90/120 with Mounting Kit
