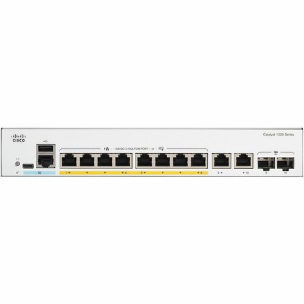

Cisco Catalyst 1200 C1200-8P-E-2G 10 Ports Manageable Ethernet Switch - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - 3 Layer Supported - Modular - 2 SFP Slots - 80.86 W Power Consumption - 67 W PoE Budget - Optical Fiber, Twisted Pair - PoE Port C12
Cisco Catalyst 1200 C1200-8P-E-2G 10 Ports Manageable Ethernet Switch - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - 3 Layer Supported - Modular - 2 SFP Slots - 80.86 W Power Consumption - 67 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
Build a reliable, easy-to-use business network at an affordable price
From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be top of mind, while ongoing management and operations add complexity that takes time and resources.
The Cisco Catalyst™ 1200 Series Switches are affordable smart switches designed and built for small and medium-sized businesses. Managed through the Cisco® Business mobile app or dashboard, the switch portfolio
provides a simple and reliable experience.
Cisco Catalyst 1200 Series switches
The Cisco Catalyst 1200 Series is the next generation of affordable smart switches, combining powerful performance and reliability with a complete suite of the features you need for a small or medium-sized business
network. The switches operate on customized Linux OS software and provide flexible management options, comprehensive security capabilities, and Layer 3 static routing features far beyond those of an unmanaged or
consumer-grade switch, at a lower cost than for fully managed switches. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, the Catalyst 1200 Series smart switches provide the ideal solution at an affordable pricing point.
- Gigabit Ethernet port for ultra-fast network speeds
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Features 10 networking ports to easily establish a local network or expand your existing one
Manageable | Yes |
Features | Fanless |
Expansion Slot Type | SFP (mini-GBIC) |
Number of Total Expansion Slots | 2 |
Number of SFP Slots | 2 |
Shared SFP Slot | Yes |
Network Technology | 10/100/1000Base-T |
1000Base-X | |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Twisted Pair |
Optical Fiber |
Network (RJ-45) | Yes |
Modular | Yes |
Uplink Port | Yes |
Total Number of Network Ports | 10 |
Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
2 x Gigabit Ethernet Combo |
Layer Supported | 3 |
Networking Standards | IEEE 802.1x |
IEEE 802.3 | |
IEEE 802.3ab | |
IEEE 802.3ad | |
IEEE 802.3af | |
IEEE 802.3at | |
IEEE 802.3az | |
IEEE 802.3u | |
IEEE 802.11ac | |
IEEE 802.1ab | |
IEEE 802.3x | |
IEEE 802.3z | |
IEEE 802.1p | |
IEEE 802.1Q | |
IEEE 802.1s | |
IEEE 802.1D | |
IEEE 802.1w |
Weight (Approximate) | 1.53 kg |
Form Factor | Rack-mountable |
Height | 43.9 mm |
Width | 268.2 mm |
Depth | 184.9 mm |
Compatible Rack Unit | 1U |
Product Type | Ethernet Switch |
Manufacturer Part Number | C12008PE2G |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | C1200-8P-E-2G |
Product Name | Catalyst C1200-8P-E-2G Ethernet Switch |
Product Line | Catalyst |
Product Series | 1200 |
Brand Name | Cisco |
Application/Usage | IP Phone |
Office | |
Wireless Access Point | |
Enterprise | |
Business | |
IP Camera | |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | WEEE |
Input Voltage | 120 V AC |
230 V AC | |
Power Source | Power Supply |
AC | |
Frequency | 60 Hz |
50 Hz | |
Power Consumption | 80.86 W |
Number of Power Supplies Installed | 1 |
PoE (RJ-45) Port | Yes |
PoE Budget | 67 W |
