CISCO (C1200-8P-E-2G) CATALYST 1200 8-PORT GE, POE, EXT PS, 2X1G COMBO C1200-8P-E-2G
SKU
409322
Brand
MPN
C1200-8P-E-2G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$382.00
Buy Now And Earn 382 Reward Points!

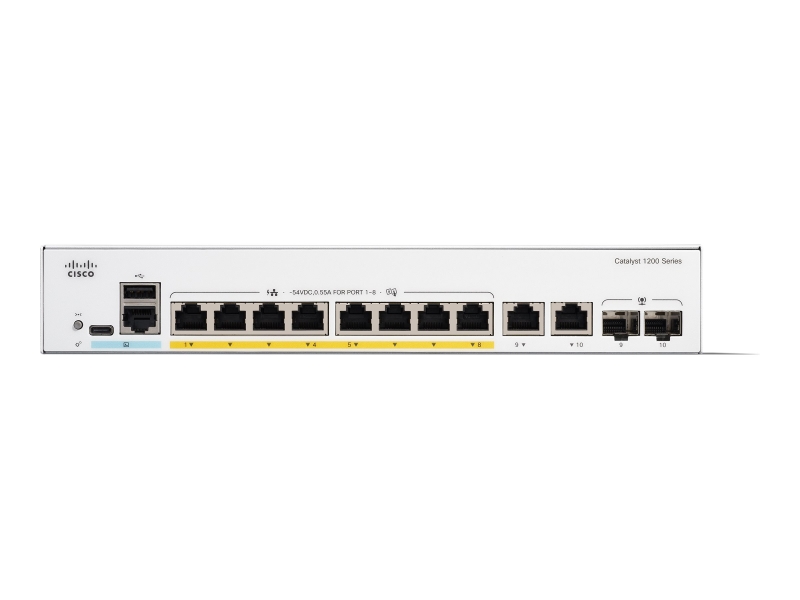

Cisco Catalyst 1200-8P-E-2G - Switch - L3 - smart - 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP/RJ-45 - rack-mountable - PoE+ (67 W)
| Product Description | Cisco Catalyst 1200-8P-E-2G - switch - 8 ports - smart - rack-mountable |
| Device Type | Switch - 8 ports - L3 - smart |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP/RJ-45 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 67 W |
| Performance | Forwarding rate (64-byte packets): 14.88 Mpps ? Switching capacity: 20 Gbps |
| Capacity | MSTP instances: 8 ? PVST+ instances: 126 ? RPVST+ instances: 126 ? Link aggregation groups: 4 ? Link aggregation ports: 8 ? Active VLANs: 255 ? IGMP multicast groups: 255 ? IPv4 routes (static): 32 ? IPv4 interfaces: 16 ? ACL rules: 512 ? Priority queues: 8 ? Packet buffer size: 1.5 MB |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9000 bytes |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
| Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), reset button, Cable Diagnostics Function, fanless, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, SNMP trap, DHCP client, Class of Service (CoS), Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), port grouping, Type of Service (ToS), Storm Control, Secure Copy (SCP), Link Aggregation, IGMP querier, VLAN mirroring, DNS client, Voice VLAN, VLAN management, Secure Core Technology (SCT), Secure Sensitive Data (SSD), Guest VLAN, User Datagram Protocol (UDP), ingress rate limiting, STP loop guard, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), TCP/UDP proxy, Weighted Round Robin (WRR), DSCP based CoS, Head-of-line (HOL) Blocking Prevention, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, Link Aggregation Group (LAG), IPv4 and IPv6 dual stack, Cisco Discovery Protocol (CDP), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD), Zero-Touch Deployment, cable length detection, Media Endpoint Discovery (LLDP-MED), trustworthy systems, layer 3 routing, remote firmware upgrade, Link Layer Discovery Protocol, eco-friendly button, Egress Queue Shaping (EQS), Auto Surveillance VLAN, path maximum transmission unit (MTU) discovery, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 26.8 cm x 18.5 cm x 4.4 cm |
| Weight | 1.53 kg |
| Manufacturer Warranty | Limited lifetime warranty |
CISCO (C1200-8P-E-2G) CATALYST 1200 8-PORT GE, POE, EXT PS, 2X1G COMBO
