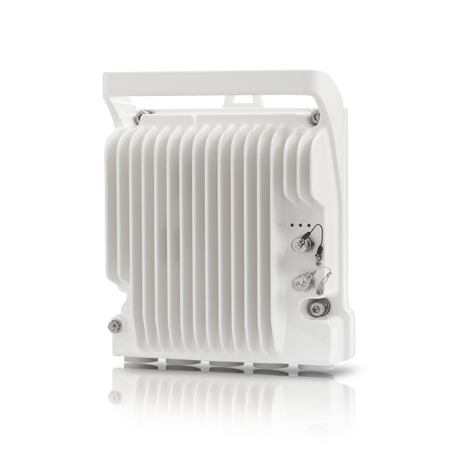

CambiumPTP 820S Radio 18GHz,TR1010,ChHigh,Hi,19160-19700MHz C180082B003A
SKU
407139
Brand
MPN
C180082B003A
Warranty
Standard Manufacturer's Warranty
$4,226.00
Buy Now And Earn 4226 Reward Points!
PTP 820S Radio 18GHz,TR1010,ChHigh,Hi,19160-19700MHz
| MPN | C180082B003A |
|---|---|
| SKU | C180082B003A |
| Brand | Cambium Networks |
| Color | White |
| Model | PTP820S |
| Series | PTP 820 |
| EAN/UPC | 5715063168882 |
| Capacity | Up to 650 Mbps (full duplex) |
| Features | Point-to-point licensed microwave backhaul High spectral efficiency and low latency with frame cut-through Header de-duplication for capacity boost Hierarchical QoS and advanced OA&M for service-centric management Low power consumption with adaptive green mode |
| Warranty | 1 year |
| IP Rating | IP66 |
| Interfaces | 10/100/1000Base-T(X) Gigabit Ethernet |
| Modulation | QPSK 8PSK 16-QAM 32-QAM 64-QAM 128-QAM 256-QAM 512-QAM 1024-QAM 2048-QAM |
| Description | The Cambium Networks PTP 820S (MPN C180082B003A) is a single-core, all-outdoor point-to-point licensed microwave radio in the PTP 820 series designed for microwave backhaul. This 18 GHz ODU (19160–19700 MHz) delivers up to 650 Mbps full-duplex capacity for high-throughput links and supports advanced air-interface features including LOS MIMO, up to 2048-QAM modulation and 11-step hitless Adaptive Coding & Modulation (ACM). The unit supports channel bandwidths up to 80 MHz, integrates a Gigabit Ethernet interface (10/100/1000Base-T(X)), and provides carrier-grade functionality (MEF Carrier Ethernet 2.0, MPLS-TP ready, ITU-T Y.1731). Synchronization options include Native, SyncE and IEEE 1588v2. Built for outdoor deployments, the radio is IP66 rated and operates from 48 V DC across a wide temperature range. |
| Form Factor | Single-core all-outdoor radio (ODU) |
| Power Input | 48 V DC |
| Manufacturer | Cambium Networks |
| Product Title | Cambium Networks PTP 820S 18 GHz All-Outdoor Radio (C180082B003A) |
| Antenna / MIMO | Line-of-Sight (LOS) MIMO |
| Frequency Band | 18 GHz |
| Synchronization | Native SyncE IEEE 1588v2 |
| Packaging Weight | 5.30 KGS |
| Datasheets / PDFs | https://www.ispsupplies.com/core/media/media.nl?id=25183907&c=4148527&h=gXLTXtNiFRgMzSYHUWR3Vo6bA5-doCxo9J--wzQ5sV6IpgWd https://www.winncom.com/pdf/Cambium_PTP820S/Cambium_PTP_820S_SS.pdf https://www.winncom.com/pdf/Cambium_PTP820S/Cambium_PTP_820_Brochure.pdf https://www.cticonnect.com/PDF%20Files/C180082B003A |
| Power Source Type | DC |
| Storage Temperature | -45 to 60 °C |
| Frequency Range (MHz) | 19160-19700 |
| Operating Temperature | -33 to 55 °C |
| Maximum Channel Bandwidth | Up to 80 MHz |
| Adaptive Coding & Modulation | 11-step hitless ACM |
| Regulatory / Compliance Notes | Meets carrier-grade synchronization and performance management requirements (MEF, ITU-T). |
| Networking Standards / Protocols | MEF Carrier Ethernet 2.0 MPLS-TP ready ITU-T Y.1731 G.8032 MSTP IEEE 802.1ab IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3ac IEEE 802.3ad |
| Package Dimensions (W x H x D, cm) | 29.00 x 18.00 x 37.00 |
