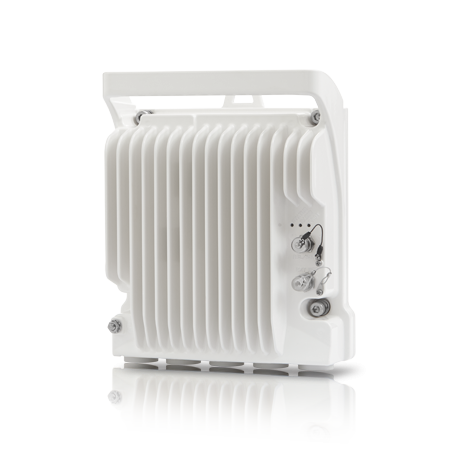

Cambium Ptp 820S Radio 18GHz,TR1010,ChHigh,Lo,18126-18690MHz C180082B004A
SKU
407140
Brand
MPN
C180082B004A
Warranty
Standard Manufacturer's Warranty
$4,226.00
Buy Now And Earn 4226 Reward Points!
PTP 820S Radio 18GHz,TR1010,ChHigh,Lo,18126-18690MHz
| MPN | C180082B004A |
|---|---|
| SKU | C180082B004A |
| Brand | Cambium Networks |
| Color | White (reported) |
| Model | PTP 820S |
| Notes | Throughput figures vary by source and measurement method (Layer 2 vs full‑duplex). The PTP 820 series includes dual‑core models (PTP 820C) that are software‑upgradeable for higher multi‑gigabit capacity; that capability pertains to series variants rather than this single‑core PTP 820S SKU. |
| Series | PTP 820 |
| Weight | 5.30 kg (reported) |
| Barcode | 90008205 (reported) |
| EAN/UPC | 5715063360415 (reported) |
| Warranty | 1 year (reported) |
| IP Rating | IP66 |
| Description | Cambium Networks PTP 820S (MPN C180082B004A) is an all‑outdoor, single‑core licensed microwave point‑to‑point (PTP) radio optimized for backhaul transport in the 18 GHz band. This ODU model is specified for 18126–18690 MHz operation and supports advanced modulation up to 2048‑QAM, 11‑step hitless ACM and channel bandwidths up to 80 MHz for high spectral efficiency. The unit provides multi‑gigabit class architecture with vendor‑reported throughput figures for the PTP 820S of up to ~605 Mbps (Layer 2) or up to 650 Mbps full‑duplex (sources vary). Integrated carrier‑grade features include an Ethernet switch (MEF Carrier Ethernet 2.0 compliant), header de‑duplication, hierarchical QoS, G.8032/MSTP resiliency, ITU‑T Y.1731 performance management, and low‑latency frame cut‑through. Synchronization options include Native/SyncE and IEEE 1588v2. The PTP 820 series additionally supports flexible deployment modes (all‑outdoor, split‑mount, all‑indoor). The radio is rated IP66, operates in -33 °C to +55 °C (operating) with storage to -45 °C to +60 °C (reported), uses DC power (-48 VDC nominal), and ships in a compact enclosure. |
| Power Input | -48 VDC (nominal) / DC power |
| Manufacturer | Cambium Networks |
| Product Title | Cambium Networks PTP 820S 18 GHz All-Outdoor Point-to-Point Radio (MPN C180082B004A) |
| Max Modulation | 2048‑QAM |
| Channel Bandwidth | Up to 80 MHz |
| Datasheets / PDFs | https://www.ispsupplies.com/core/media/media.nl?id=25183908&c=4148527&h=vFpyvak4FaX2A2bmJOHqn1bHyrDruaW-WKTbBQcE8ZkC3oRT https://www.winncom.com/pdf/Cambium_PTP820S/Cambium_PTP_820S_SS.pdf https://www.winncom.com/pdf/Cambium_PTP820S/Cambium_PTP_820_Brochure.pdf https://www.barcodesinc.com/media/pdf/Cambium-Networks/ptp-820.pdf https://www.cticonnect.com/PDF%20Files/C180082B004A |
| Power Source Type | DC |
| Cabling Technology | 10/100/1000Base-T(X) |
| Storage Temperature | -45 °C to +60 °C (reported) |
| Modulation Supported | QPSK, 8PSK, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM (per source list) |
| Networking Standards | IEEE 802.1ab, 802.1p, 802.1Q, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad; IEEE 1588v2 support |
| Latency / Performance | Low latency with frame cut‑through (vendor stated) |
| Networking Interfaces | Integrated Gigabit Ethernet (10/100/1000), MEF Carrier Ethernet 2.0 compliant |
| Operating Temperature | -33 °C to +55 °C (operating, reported) |
| Throughput / Capacity | Reported: PTP 820S up to 605 Mbps (Layer 2) and up to 650 Mbps (full duplex) per various sources; series/other models support higher (see notes) |
| Resiliency & Protocols | Header de-duplication, G.8032, MSTP, MPLS-TP ready |
| Antenna / Configuration | All‑outdoor single‑core ODU (specific SKU is ODU model for 18 GHz) |
| Frequency Range (this SKU) | 18126-18690 MHz |
| Management & Synchronization | Advanced OA&M, NMS/EMS support, Native/SyncE and IEEE 1588v2 synchronization, hierarchical QoS, performance monitoring (ITU-T Y.1731) |
| Supported Frequency Bands (series) | Licensed bands 6-42 GHz (PTP 820 series) |
| Physical Dimensions (device, reported) | 230 x 233 x 98 mm (reported) |
Cambium PTP 820S Radio 18GHz,TR1010,ChHigh,Lo,18126-18690MHz
