Sophos Cs101-8Fp Sophos Switch - 8 Port With Full PoE - Au Power Cord C18CTCHAU
SKU
382318
Brand
MPN
C18CTCHAU
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$526.00
Buy Now And Earn 526 Reward Points!

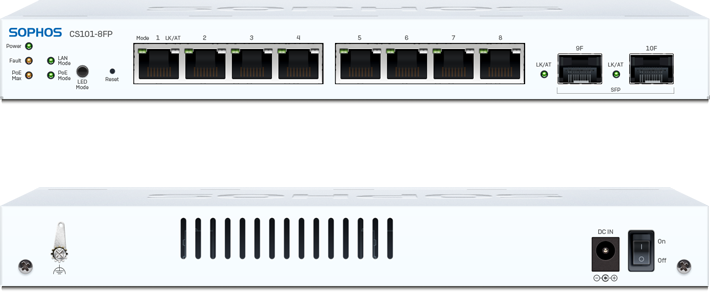

Sophos CS101-8FP Sophos Switch - 8 port with Full PoE - AU power cord
| MPN | C18CTCHAU |
|---|---|
| PoE | Total Budget: 110 W Max Power Per Port: Up to 30 W (subject to total PoE budget) Supported Standards: [ "IEEE 802.3af", "IEEE 802.3at" ] |
| SKU | C18CTCHAU |
| Brand | Sophos |
| Color | Silver |
| Layer | Layer 2 (static/IP routing supported) |
| Model | CS101-8FP |
| Notes | Local management available via Web/CLI/SNMP. Sophos Central cloud management and some advanced services may require an additional subscription. |
| Ports | 8 x 10/100/1000Base-T (Gigabit RJ-45) PoE-capable ports; 2 x 1G SFP ports |
| Power | Power Source: DC (external adapter) Power Connector: DC-in jack Power Plug Type: Type I (AU plug listed on AU-specific SKUs) |
| VLANs | Support for up to 256 simultaneous VLANs (out of 4096 VLAN IDs) |
| GTIN/EAN | 5054074008917 |
| Hardware | Flash Memory: 32 MB Packet Buffer: 512 KB Internal Memory: 256 MB |
| Warranty | Limited lifetime warranty (manufacturer) — some listings reference a 12-month base warranty; check manufacturer warranty terms for specific coverage |
| SFP Slots | 2 |
| Standards | IEEE 802.1AX IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3bz IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3af IEEE 802.3at |
| Dimensions | 274.0 x 170.0 x 88.0 cm |
| Management | Cloud: Sophos Central (cloud-managed; may require separate subscription) Local: [ "Web UI", "CLI", "SNMP (v2/v3)" ] Other Management Features: [ "Quality of Service (QoS)", "IGMP snooping", "GVRP", "MIB support (RFC 1643, RFC 1213, RFC 2618, RFC 1493)", "Port mirroring", "Link aggregation", "System event log" ] |
| Description | The Sophos CS101-8FP is a managed, cloud-capable network access layer switch designed for SMB and branch deployments. It provides 8 Gigabit PoE-capable RJ45 ports plus 2 x 1G SFP uplink slots, a 110 W total PoE budget (supports 802.3af/802.3at), and a 20 Gbps switching capacity. Manage locally via web/CLI/SNMP or centrally with Sophos Central (cloud management; may require separate subscription). Features include VLAN segmentation (up to 256 simultaneous VLANs), QoS, IGMP snooping, link aggregation, port mirroring, ACLs, static routing/IP routing support, and hardware-level security and MIB support for enterprise management. |
| Form Factor | Desktop / Wall-mountable |
| Jumbo Frames | 9000 bytes |
| Product Type | Managed Gigabit Ethernet PoE Switch |
| Product Title | Sophos CS101-8FP Managed 8-Port Gigabit PoE Switch (110W PoE, 2x1G SFP) |
| Product Family | Sophos 100 |
| Product Series | 100 |
| MAC Address Table | 8K entries (8000) |
| Switching Capacity | 20 Gbps |
| Ethernet Technology | Gigabit Ethernet (10/100/1000Base-T); 100/1000Base-X (SFP) |
| Included Accessories | Wall mount kit Power adapter and cable |
| Packet Buffer Memory | 512 KB (0.5 MB) |
| Performance Features | IGMP Snooping: Yes Auto MDI/MDI-X: Yes Port Mirroring: Yes Static Routing: Yes Auto-negotiation: Yes Link Aggregation: Yes Broadcast Storm Control: Yes |
| Security & Protocols | SSH HTTPS SNMP RADIUS authentication client ACLs DHCP relay |
Sophos CS101-8FP Sophos Switch - 8 port with Full PoE - AU power cord
