Cambium 60GHz CnWave V3000 Client Node Antenna Assembly C600500D001A
SKU
375144
Brand
MPN
C600500D001A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$128.00
Buy Now And Earn 128 Reward Points!

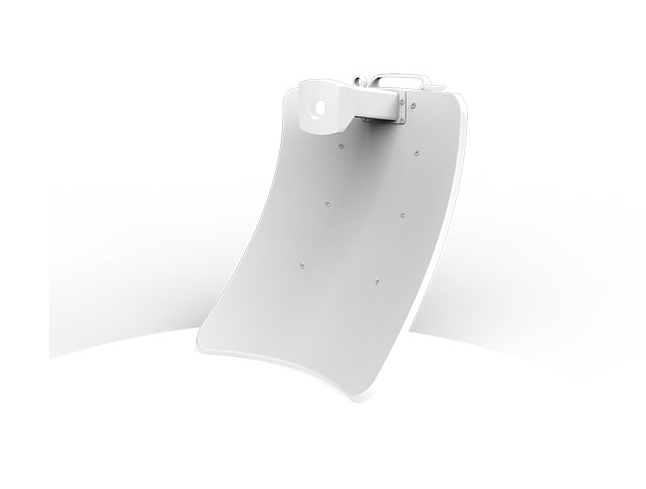

Cambium 60GHz cnWave V3000 Client Node Antenna Assembly
| SKU | C600500D001A |
|---|---|
| Brand | Cambium Networks |
| Model | cnWave V3000 |
| Latency | < 1 ms |
| Includes | Antenna assembly only |
| Datasheets | https://www.winncom.com/pdf/Cambium_cnWave_V3000/Cambium_cnWave_V3000_DS.pdf https://www.cticonnect.com/PDF%20Files/cnWave%20V3000%20Data%20Sheet.pdf https://www.ispsupplies.com/core/media/media.nl?id=20542336&c=4148527&h=SPUsxXjnzJvRTH7xrL4UaqVt1fKkDrIm3T9WuB5JkTZpeg5- https://www.mbsiwav.com/core/media/media.nl?id=20542336&c=4148527&h=SPUsxXjnzJvRTH7xrL4UaqVt1fKkDrIm3T9WuB5JkTZpeg5- |
| Management | Operates with Cambium cnMaestro (cloud-based or on-premises) |
| Description | High-gain 44.5 dBi antenna assembly for the Cambium Networks cnWave V3000 client node. Operates across 57–66 GHz and supports up to 7.6 Gbps aggregate throughput (3.8 Gbps UL / 3.8 Gbps DL) with channel bonding. Features easy installation with auto-beamforming, low latency (<1 ms), 802.11ay technology and Facebook Terragraph certification. Designed for long-range, high-capacity and high-density deployments—suitable for edge access and backhaul (Wi‑Fi, LTE/5G small cell). Managed via Cambium cnMaestro (cloud or on-premises). Antenna assembly only. |
| Antenna Gain | 44.5 dBi |
| Product Type | 60 GHz Client Node Antenna Assembly (High-Gain) |
| Product Title | Cambium Networks cnWave 60 GHz V3000 Client Node Antenna Assembly, 44.5 dBi (C600500D001A) |
| Frequency Range | 57 to 66 GHz |
| Throughput Notes | Aggregate throughput stated with channel bonding; supports PMP and PTP configurations |
| Antenna Beamwidth | Azimuth ±2°, Elevation ±1° |
| Country of Origin | China |
| Typical Use Cases | Long-range, high-capacity and high-density deployments; edge access and/or high-capacity backhaul for Wi‑Fi access or LTE/5G small cells |
| Maximum Throughput | Up to 7.6 Gbps (3.8 Gbps UL and 3.8 Gbps DL) with channel bonding |
| Compatibility / Notes | Designed for Cambium cnWave V3000 client node radios (e.g., C600500C024A listed as companion radio on some sources); may be used in PMP and PTP configurations |
| Installation Features | Easy installation with auto-beamforming |
| Manufacturer Part Number | C600500D001A |
| Technology / Certification | 802.11ay; Facebook Terragraph certified |
Cambium 60GHz cnWave V3000 Client Node Antenna Assembly
