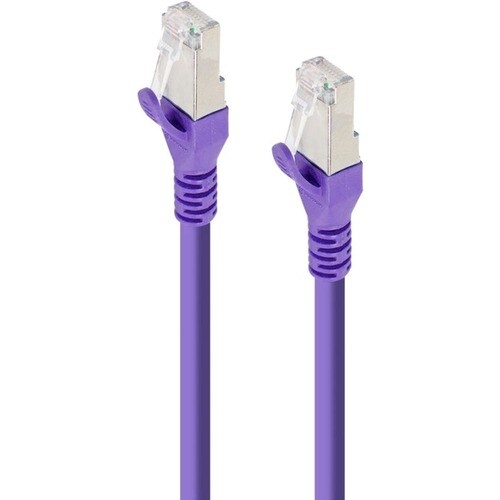

ALOGIC 1m Purple 10GbE Shielded CAT6A LSZH Network Cable C6A-01-PURPLE-SH
SKU
425438
Brand
MPN
C6A-01-PURPLE-SH
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $9.00 Regular Price $10.00
Buy Now And Earn 9 Reward Points!
ALOGIC CAT6a shielded snagless patch cables come in 10 different colours and a range of lengths from 0.5m to 30m, which lets you colour code your installation.
- Connect Your Ethernet Devices
- Performance rated for 750 MHz bandwidth.
- Suitable for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet, & Lower.
- Each twisted pair in the cable is individually wrapped in aluminum foil Mylar (100% Coverage).
- Overall Copper Braided Shielded.
- Comes with LSZH (Low Smoke Zero Halogen) Jacket.
- Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs.
- Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt.
- Warranty: Lifetime
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Material Details |
|
| Shielding Material | Braided Copper |
| Product Color | Purple |
| Product Material | Bare Copper |
| Aluminum Mylar Foil | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | C6A-01-PURPLE-SH |
| Manufacturer Website Address | http://www.alogic.co |
| Manufacturer | Alogic |
| Product Name | Purple Shielded CAT6A LSZH Network Cable - 1m |
| Package Type | Retail |
| Brand Name | Alogic |
| Technical Information | |
| Cable Length | 1 m |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Network Device |
| Patch Panel | |
| Jacket Type | LSZH |
| Shielding | Yes |
| Features | Alien Near End Crosstalk (ANEXT) |
| Strain Relief | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6a |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Plating | Gold |
| American Wire Gauge | 26 AWG |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Molded |
| Snagless |
