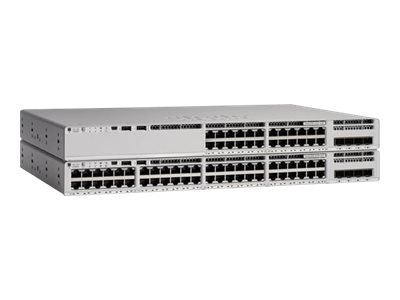

Cisco - Catalyst 9200 48-port PoE+, Network Advantage C9200-48P-A
SKU
371832
Brand
MPN
C9200-48P-A
Warranty
Standard Manufacturer's Warranty
$7,918.00
Buy Now And Earn 7918 Reward Points!
Cisco Catalyst 9200 - Network Advantage - switch - L3 - smart - 48 x 10/100/1000 (PoE+) - rack-mountable - PoE+
DNA LICENSE MANDATORY
DNA LICENSE MANDATORY
| Ports | 48 x 10/100/1000 (PoE+) |
| Power | AC 120/230 V (50 - 60 Hz) |
| Weight | 5.5 kg |
| Subtype | Gigabit Ethernet |
| Capacity | Virtual networks: 4 ? IPv4 routing table entries: 4000 ? IPv6 routing table entries: 2000 ? ACL scale entries: 1600 ? Packet buffer size: 6 MB ? VLAN IDs: 4096 ? Switched virtual interfaces (SVIs): 1000 |
| Features | Cisco StackWise Technology, Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), MACsec support, built-in ASIC, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Blue Beacon LED, Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, DNA support, Superior QoS |
| Device Type | Switch - 48 ports - L3 - smart - stackable |
| Performance | Stacking bandwidth: 160 Gbps ? Switching bandwidth: 176 Gbps ? Forwarding rate: 261.9 Mpps |
| Enclosure Type | Rack-mountable |
| Power Redundancy | Optional |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP |
| Dimensions (WxDxH) | 4.4 cm x 44.5 cm x 35 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| Jumbo Frame Support | 9198 bytes |
| Product Description | Cisco Catalyst 9200 - Network Advantage - switch - 48 ports - smart - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32000 entries |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | NETCONF, RESTCONF |
Cisco Catalyst 9200 - Network Advantage - switch - L3 - smart - 48 x 10/100/1000 (PoE+) - rack-mountable - PoE+
