Cisco Catalyst 9200 C9200-48PL 48 Ports Manageable Layer 3 Switch - 3 Layer Supported - Modular - 600 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable C9200-48PL-E

SKU
411019
Brand
MPN
C9200-48PL-E
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$7,839.00
Buy Now And Earn 7839 Reward Points!

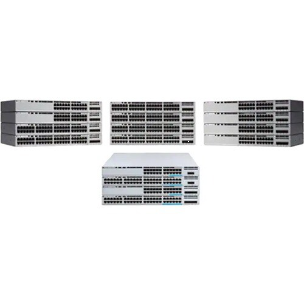

Cisco Catalyst 9200 C9200-48PL 48 Ports Manageable Layer 3 Switch - 3 Layer Supported - Modular - 600 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable

Extend intent-based networking everywhere

Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

Features
  • Gigabit Ethernet port for ultra-fast network speeds
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Supports layer 3 switching for enhanced performance and usability
  • Management capability provides control over setup and configuration of your network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Stack port provides an easy and hassle-free way to extend your office network
  • Cascade to other network devices through the uplink port to expand your local area network
  • Features 48 networking ports to establish large network
Management & Protocols
ManageableYes
Network & Communication
Layer Supported3
I/O Expansions
Expansion Slot TypeUplink Module
Number of Total Expansion Slots1
Physical Characteristics
Weight (Approximate)5.50 kg
Form FactorRack-mountable
Height43.9 mm
Width444.5 mm
Depth350.5 mm
Power Description
Power SourcePower Supply
Frequency60 Hz
50 Hz
Power Consumption600 W
Plug/Connector TypeIEC 60320 C14
C15
IEC 60320 C16
Number of Power Supplies Supported2
Number of Power Supplies Installed1
PoE (RJ-45) PortYes
Redundant Power Supply SupportedYes
PoE Budget370 W
Interfaces/Ports
ModularYes
Uplink PortYes
Stack PortYes
Total Number of Network Ports48
Port/Expansion Slot Details1 x Expansion Slot
48 x Gigabit Ethernet PoE+
Media & Performance
Network Technology10GBase-X
1000Base-T
Ethernet Technology10 Gigabit Ethernet
Gigabit Ethernet
Media Type SupportedTwisted Pair
Optical Fiber
General Information
Product TypeLayer 3 Switch
Manufacturer Part NumberC9200-48PL-E
Manufacturer Website Addresshttp://www.cisco.com/c/en_au
ManufacturerCisco Systems, Inc
Product ModelC9200-48PL
Product NameCatalyst 9200 48-Port partial PoE+ Switch, Network Essentials
Product LineCatalyst
Product Series9200
Brand NameCisco
