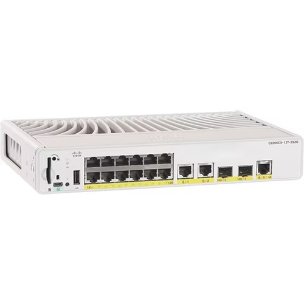

Cisco Catalyst 9200 C9200CX-12P-2X2G 12 Ports Manageable Ethernet Switch - 10 Gigabit Ethernet - 10GBase-T, 10GBase-X - 3 Layer Supported - 310 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Wall Mountable, Under Table - Life C92
SKU
412364
Brand
MPN
C9200CX-12P-2X2G-E
Warranty
Standard Manufacturer's Warranty
$2,236.00
Buy Now And Earn 2236 Reward Points!
Cisco Catalyst 9200 C9200CX-12P-2X2G 12 Ports Manageable Ethernet Switch - 10 Gigabit Ethernet - 10GBase-T, 10GBase-X - 3 Layer Supported - 310 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Wall Mountable, Under Table - Lifetime Limited Warranty
Extend intent-based networking everywhereCisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or Meraki cloud monitoring.
Features
- Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX.
- Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.
- Flexible downlink options with data, PoE+ or mGig
- Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family
- Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- Advanced network monitoring using Full Flexible NetFlow
Guides & Documents
Management & Protocols
Manageable | Yes |
Technical Information
Features | Fanless |
Power Description
Power Source | Power Supply |
PoE (RJ-45) Port | Yes |
PoE Budget | 310 W |
Interfaces/Ports
Modular | No |
Uplink Port | Yes |
Total Number of Network Ports | 12 |
Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Ports |
12 x 1 Gigabit Ethernet Ports |
Network & Communication
Layer Supported | 3 |
Networking Standards | IEEE 802.3 |
IEEE 802.1x | |
IEEE 802.3ad | |
IEEE 802.3af | |
IEEE 802.3an | |
IEEE 802.3at | |
IEEE 802.3bz | |
IEEE 802.3u | |
IEEE 802.3z | |
IEEE 802.3ab | |
IEEE 802.1w | |
IEEE 802.1s | |
IEEE 802.1Q | |
IEEE 802.1p | |
IEEE 802.1D | |
IEEE 802.1ae |
Media & Performance
Network Technology | 10GBase-T |
10GBase-X | |
Ethernet Technology | 10 Gigabit Ethernet |
Media Type Supported | Twisted Pair |
Optical Fiber |
Miscellaneous
Application/Usage | Enterprise |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | WEEE |
RoHS-5 |
Physical Characteristics
Weight (Approximate) | 2.99 kg |
Form Factor | Rack-mountable |
Under Table | |
Compact | |
Wall Mountable | |
Height | 43.9 mm |
Width | 243.8 mm |
Depth | 269.2 mm |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | C9200CX-12P-2X2G-E |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | C9200CX-12P-2X2G |
Product Name | Catalyst C9200CX-12P-2X2G Ethernet Switch |
Product Line | Catalyst |
Product Series | 9200 |
Brand Name | Cisco |
