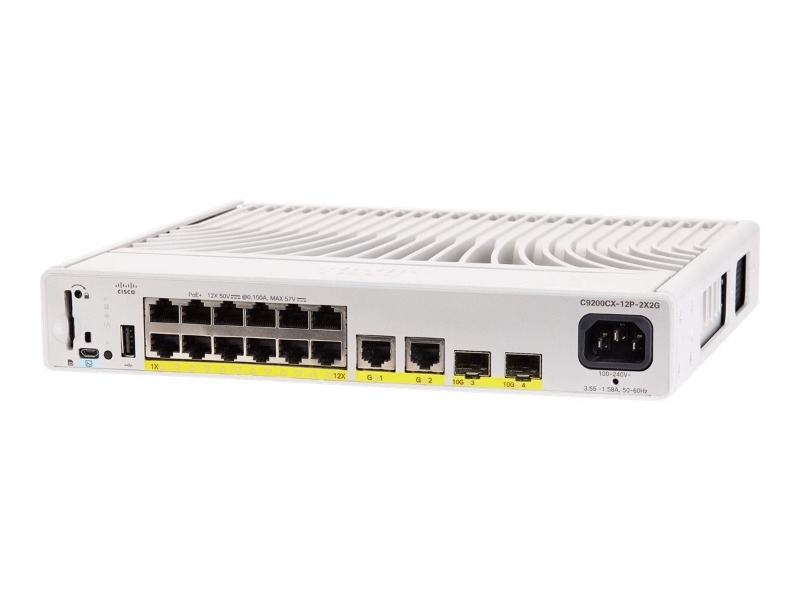

Cisco - Catalyst 9000 Compact Switch 12-Port PoE+, 240W, Essentials C9200CX-12P-2X2G-E
SKU
419376
Brand
MPN
C9200CX-12P-2X2G-E
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,033.00
Buy Now And Earn 3033 Reward Points!
Cisco Catalyst 9200CX - Network Essentials - switch - compact - L3 - Managed - 12 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (240 W)
| Ports | 12 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) |
| Power | AC 100-240 V (50/60 Hz) |
| Weight | 2.99 kg |
| Subtype | Gigabit Ethernet |
| Capacity | Virtual networks: 16 ? IPv4 routes: 14000 ? Direct IPv4 routes: 10000 ? Indirect IPv4 routes: 4000 ? IPv4 routing entries: 4000 ? IPv6 routing entries: 2000 ? Multicast scale: 1000 ? QoS scale entries: 1000 ? ACL scale entries: 1600 ? Flexible NetFlow entries: 16000 ? VLAN IDs: 4096 ? PVST instances: 128 ? STP Virtual Ports for PVST: 13000 ? STP Virtual Ports for MST: 13000 |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
| PoE Budget | 240 W |
| Device Type | Switch - 12 ports - L3 - Managed |
| Performance | Switching capacity: 120 Gbps ? Forwarding rate: 95.23 Mpps ? Packet buffer size: 6 MB |
| Enclosure Type | Rack-mountable 1U |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Dimensions (WxDxH) | 26.9 cm x 24.4 cm x 4.4 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at |
| Jumbo Frame Support | 9198 bytes |
| Product Description | Cisco Catalyst 9200CX - Network Essentials - switch - compact - 12 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32000 entries |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG |
Cisco Catalyst 9200CX - Network Essentials - switch - compact - L3 - Managed - 12 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (240 W)
