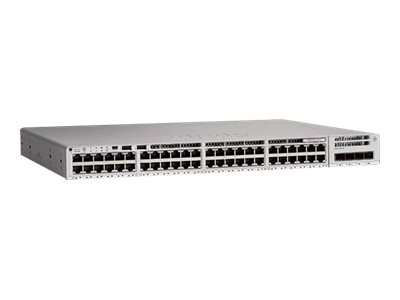

Cisco - Catalyst 9200L 48-port Partial PoE+, 4 X 10G, Nw Essentials C9200L-48PL-4X-E
SKU
419819
Brand
MPN
C9200L-48PL-4X-E
Warranty
Standard Manufacturer's Warranty
$10,641.00
Buy Now And Earn 10641 Reward Points!
Cisco Catalyst 9200L - Network Essentials - switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (370 W)
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power | AC 100-240 V (50 - 60 Hz) |
| Weight | 4.8 kg |
| Subtype | Gigabit Ethernet |
| Capacity | Virtual networks: 1 ? IPv4 routes: 11000 ? IPv4 routing table entries: 3000 ? IPv6 routing table entries: 1500 ? Multicast scale: 1000 ? ACL scale entries: 1500 ? FNF entries: 16000 ? VLANs supported: 1024 ? Switched virtual interfaces (SVIs): 512 ? QoS hardware queues per port: 8 ? Packet buffer size: 6 MB |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco StackWise-80 technology, Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0 |
| PoE Budget | 370 W |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Performance | Stacking bandwidth: 80 Gbps ? Switching capacity: 176 Gbps ? Forwarding rate: 130.95 Mpps ? Switching capacity with stacking: 256 Gbps ? Forwarding rate with stacking: 190 Mpps |
| Enclosure Type | Rack-mountable |
| Power Redundancy | Optional |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Dimensions (WxDxH) | 44.5 cm x 28.8 cm x 4.4 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz |
| Jumbo Frame Support | 9198 bytes |
| Product Description | Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 16000 entries |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, IPv4, IPv6, YANG |
Cisco Catalyst 9200L - Network Essentials - switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (370 W)
