CISCO (C9300-48T-E) CATALYST 9300 48-PORT DATA ONLY, NETWORK ESSENTIALS, DNA LICENSE MANDA

SKU
371835
Brand
MPN
C9300-48T-E
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$9,030.00
Buy Now And Earn 9030 Reward Points!

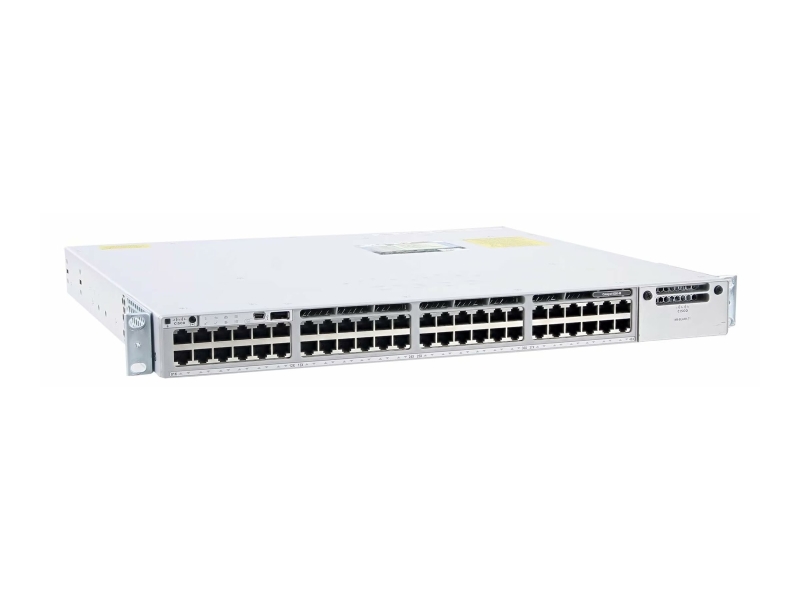

Cisco Catalyst 9300 - Network Essentials - switch - L3 - Managed - 48 x 10/100/1000 - rack-mountable

Product Description Cisco Catalyst 9300 - Network Essentials - switch - 48 ports - Managed - rack-mountable
Device Type Switch - 48 ports - L3 - Managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000
Performance Switching capacity: 128 Gbps ? Stacking bandwidth: 480 Gbps ? Forwarding rate: 190.48 Mpps
Capacity IPv4 routing table entries: 32000 ? IPv6 routing table entries: 16000 ? Flexible NetFlow entries: 64000 ? VLAN IDs: 4000 ? Switched virtual interfaces (SVIs): 2000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power AC 120/230 V (50 - 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 44.5 cm x 4.4 cm
Weight 7.45 kg
System Requirements Cisco IOS Universal
Manufacturer Warranty Limited lifetime warranty
CISCO (C9300-48T-E) CATALYST 9300 48-PORT DATA ONLY, NETWORK ESSENTIALS, DNA LICENSE MANDA
