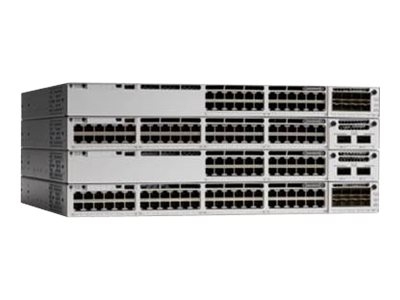

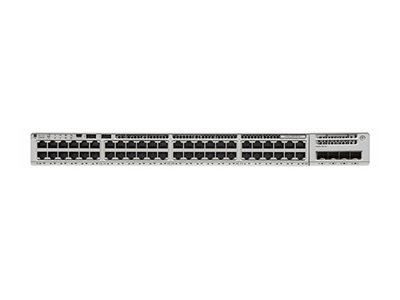

CISCO (C9300-48U-E) CATALYST 9300 48-PORT UPOE, NETWORK ESSENTIALS, DNA LICENSE MANDATORY
SKU
371142
Brand
MPN
C9300-48U-E
Warranty
Standard Manufacturer's Warranty
$12,542.00
Buy Now And Earn 12542 Reward Points!
Cisco Catalyst 9300 - Network Essentials - switch - L3 - Managed - 48 x 10/100/1000 (UPOE) - rack-mountable - UPOE (822 W)
| Product Description | Cisco Catalyst 9300 - Network Essentials - switch - 48 ports - Managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (UPOE) |
| Power Over Ethernet (PoE) | UPOE |
| PoE Budget | 822 W |
| Performance | Switching capacity: 128 Gbps ? Stacking bandwidth: 480 Gbps ? Forwarding rate: 190.48 Mpps |
| Capacity | IPv4 routing table entries: 32000 ? IPv6 routing table entries: 16000 ? Flexible NetFlow entries: 64000 ? VLAN IDs: 4000 ? Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features | Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 44.5 cm x 4.4 cm |
| Weight | 7.72 kg |
| System Requirements | Cisco IOS Universal |
| Manufacturer Warranty | Limited lifetime warranty |
