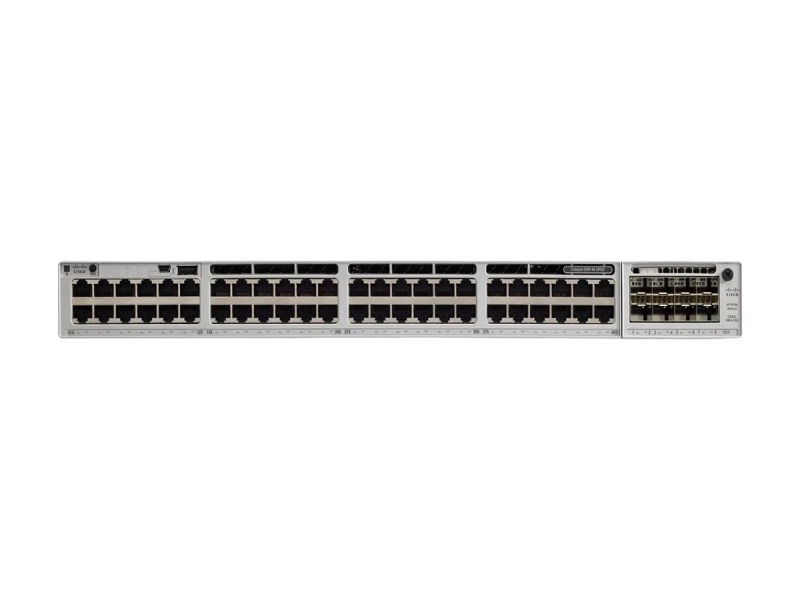

Cisco - Catalyst 9300 48-port Of 5Gbps Network Essentials C9300-48UN-E
SKU
419820
Brand
MPN
C9300-48UN-E
Warranty
Standard Manufacturer's Warranty
$23,477.00
Buy Now And Earn 23477 Reward Points!
Cisco Catalyst 9300 - Network Essentials - switch - L3 - Managed - 48 x 100/1000/2500/5000/10000 (UPOE) - rack-mountable - UPOE
| Ports | 48 x 100/1000/2.5G/5GBase-T (UPOE) |
| Power | AC 120/230 V (50 - 60 Hz) |
| Weight | 7.59 kg |
| Subtype | Gigabit Ethernet |
| Capacity | IPv4 routing table entries: 32000 ? IPv6 routing table entries: 16000 ? Flexible NetFlow entries: 64000 ? VLAN IDs: 4000 ? Switched virtual interfaces (SVIs): 2000 |
| Features | Trunking, full duplex mode, WRED, STP support, ACL support, QoS, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, CoPP, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Performance | Switching capacity: 640 Gbps ? Stacking bandwidth: 480 Gbps ? Forwarding rate: 190.48 Mpps |
| Enclosure Type | Rack-mountable 1U |
| Power Redundancy | Optional |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Dimensions (WxDxH) | 44.5 cm x 44.5 cm x 4.4 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| Jumbo Frame Support | 9198 bytes |
| Product Description | Cisco Catalyst 9300 - Network Essentials - switch - 48 ports - Managed - rack-mountable |
| System Requirements | Cisco IOS Universal |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32000 entries |
| Power Over Ethernet (PoE) | UPOE |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Cisco Catalyst 9300 - Network Essentials - switch - L3 - Managed - 48 x 100/1000/2500/5000/10000 (UPOE) - rack-mountable - UPOE
