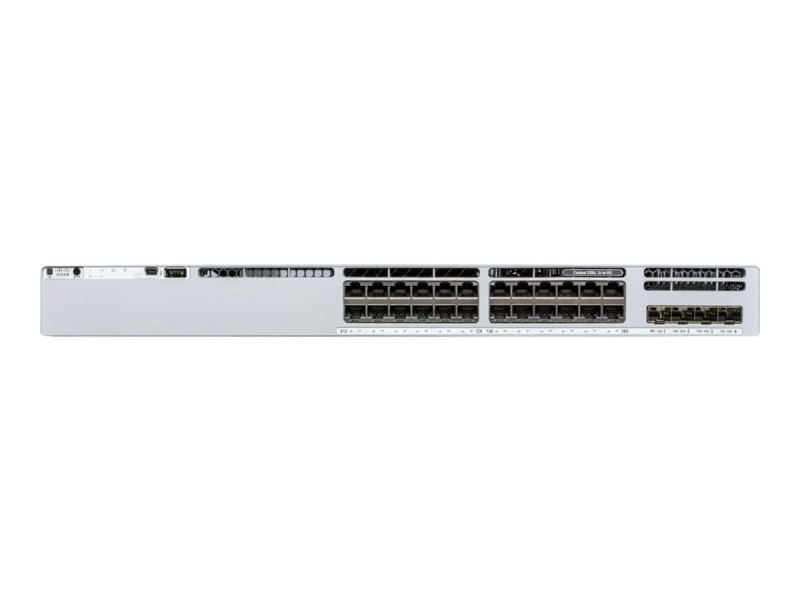

CISCO (C9300L-24P-4G-E) CATALYST 9300L 24P POE, NETWORK ESSENTIALS ,4X1G UPLINK
SKU
376364
Brand
MPN
C9300L-24P-4G-E
Warranty
Standard Manufacturer's Warranty
$5,569.00
Buy Now And Earn 5569 Reward Points!
Cisco Catalyst 9300L - Network Essentials - switch - L3 - Managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - rack-mountable - PoE+ (505 W)
| Product Description | Cisco Catalyst 9300L - Network Essentials - switch - 24 ports - Managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 505 W |
| Performance | Switching capacity: 56 Gbps ? Stacking bandwidth: 320 Gbps ? Switching capacity with stacking: 376 Gbps ? Forwarding rate: 41.66 Mpps ? Forwarding rate with stacking: 279.76 Mpps |
| Capacity | IPv4 routes: 32000 ? IPv6 routes: 16000 ? Multicast scale: 8000 ? QoS scale entries: 5120 ? ACL scale entries: 5120 ? VLANs supported: 4094 ? FNF entries: 64000 ? Switched virtual interfaces (SVIs): 1000 ? Packet buffer size: 16 MB ? Virtual networks: 64 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6 |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 40.9 cm |
| Weight | 6.81 kg |
| Manufacturer Warranty | Limited lifetime warranty |
