Catalyst 9300L 24p PoE, Network Advantage ,4x10G Uplink C9300L-24P-4X-A
SKU
417307
Brand
MPN
C9300L-24P-4X-A
Warranty
Standard Manufacturer's Warranty
$7,681.00
Buy Now And Earn 7681 Reward Points!

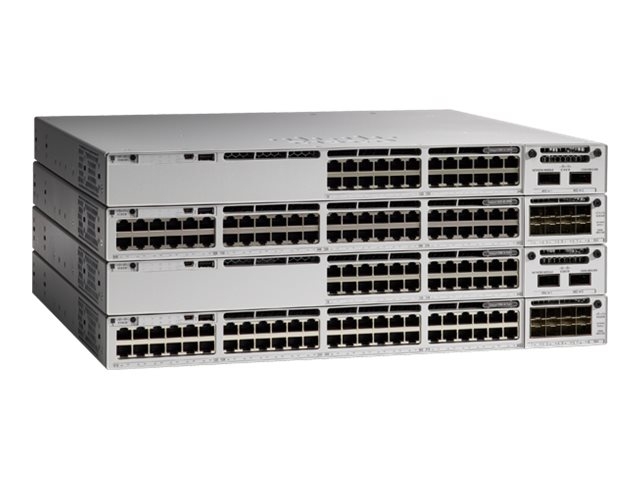

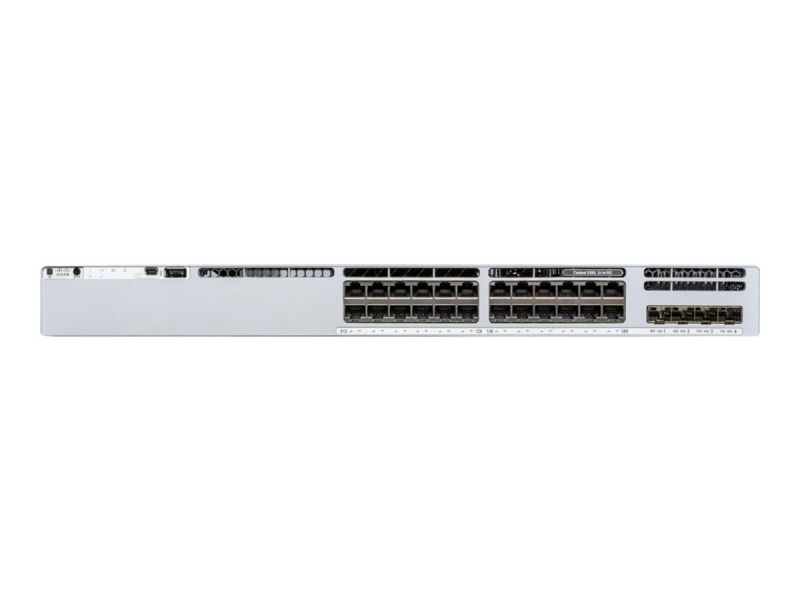

Cisco Catalyst 9300L - Network Advantage - switch - L3 - Managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - rack-mountable - PoE+ (505 W)
| Product Description | Cisco Catalyst 9300L - Network Advantage - switch - 24 ports - Managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 505 W |
| Performance | Switching capacity: 128 Gbps ? Stacking bandwidth: 320 Gbps ? Switching capacity with stacking: 448 Gbps ? Forwarding rate: 95.23 Mpps ? Forwarding rate with stacking: 333.33 Mpps |
| Capacity | IPv4 routes: 32000 ? IPv6 routes: 16000 ? Multicast scale: 8000 ? QoS scale entries: 5120 ? ACL scale entries: 5120 ? VLANs supported: 4094 ? FNF entries: 64000 ? Switched virtual interfaces (SVIs): 1000 ? Packet buffer size: 16 MB ? Virtual networks: 64 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MPLS, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
| Features | NSF, ACL support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, VRF, CoS, FNF, 802.1x authentication, PTP, DSCP support, MACsec support, CoPP, LISP, Blue Beacon LED, ZTP, CoAP support, secure boot, SPAN, SGT caching, PIM, FHS, AVB, PVLAN support, GIR mode, CIR, Cisco Trust Anchor module, Cisco UADP 2.0, Cisco StackWise-320 technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6 |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 48.8 cm |
| Weight | 6.81 kg |
| Manufacturer Warranty | Limited lifetime warranty |
Catalyst 9300L 24p PoE, Network Advantage ,4x10G Uplink
