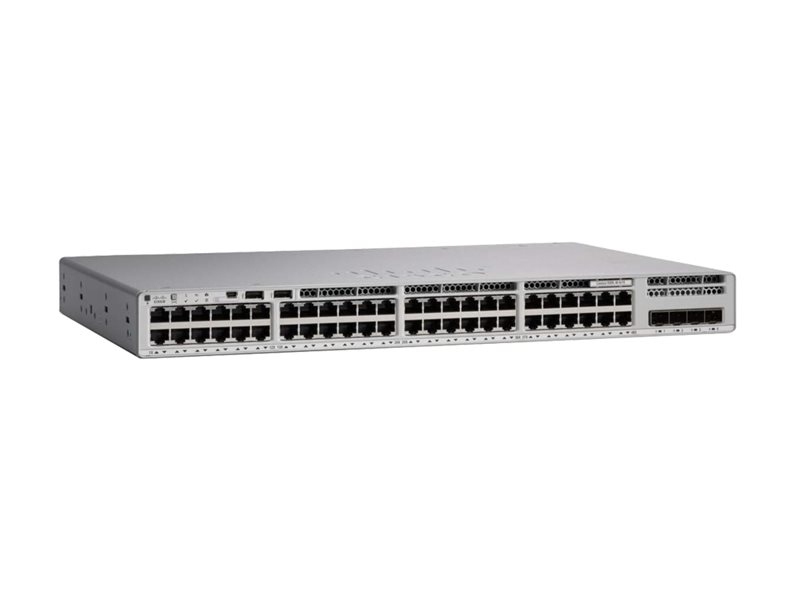

Cisco - Catalyst 9300L 48p PoE, Network Advantage,4x10G Uplink C9300L-48P-4X-A
SKU
426905
Brand
MPN
C9300L-48P-4X-A
Warranty
Standard Manufacturer's Warranty
$14,300.00
Buy Now And Earn 14300 Reward Points!
Cisco Catalyst 9300L - Network Advantage - switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (505 W)
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power | AC 120/230 V (50 - 60 Hz) |
| Weight | 7.03 kg |
| Subtype | Gigabit Ethernet |
| Capacity | IPv4 routes: 32000 ? IPv6 routes: 16000 ? Multicast scale: 8000 ? QoS scale entries: 5120 ? ACL scale entries: 5120 ? Routed ports: 416 ? VLANs supported: 4094 ? Switched virtual interfaces (SVIs): 1000 |
| Features | NSF, ACL support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, VRF, CoS, FNF, 802.1x authentication, PTP, DSCP support, MACsec support, CoPP, LISP, Blue Beacon LED, ZTP, CoAP support, secure boot, SPAN, SGT caching, PIM, FHS, AVB, PVLAN support, GIR mode, CIR, Cisco Trust Anchor module, Cisco UADP 2.0, Cisco StackWise-320 technology |
| PoE Budget | 505 W |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Performance | Switching capacity with stacking: 496 Gbps ? Switching capacity: 176 Gbps ? Forwarding rate: 130.95 Mpps ? Forwarding rate with stacking: 369.05 Mpps |
| Enclosure Type | Rack-mountable |
| Power Redundancy | Optional |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MPLS, MSTP |
| Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 44.9 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6 |
| Jumbo Frame Support | 9198 bytes |
| Product Description | Cisco Catalyst 9300L - Network Advantage - switch - 48 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32000 entries |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Cisco Catalyst 9300L - Network Advantage - switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (505 W)
