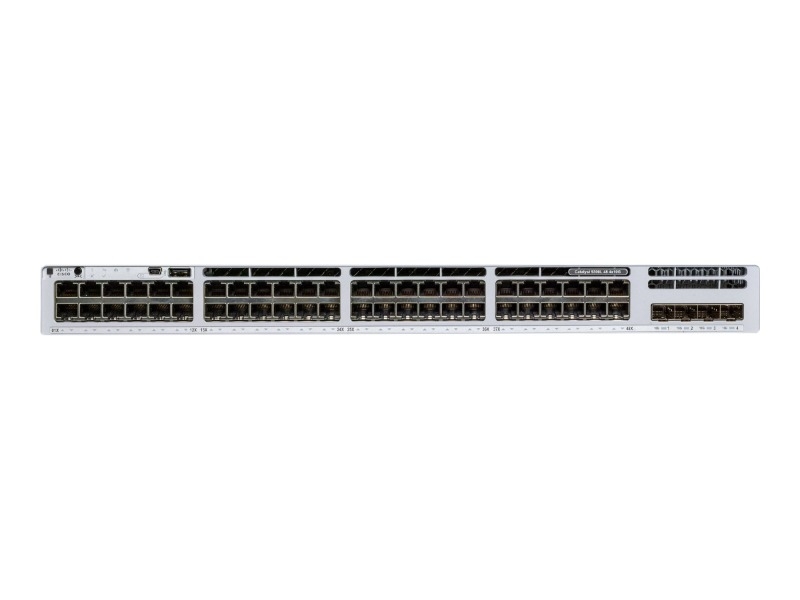

Cisco Catalyst 9300L 48p, 12mGig, Network Essentials ,4x10G Uplink C9300L-48UXG-4X-E
SKU
396593
Brand
MPN
C9300L-48UXG-4X-E
Warranty
Standard Manufacturer's Warranty
$15,324.00
Buy Now And Earn 15324 Reward Points!
Cisco Catalyst 9300L - Network Essentials - switch - L3 - Managed - 48 x 10/100/1000 (UPOE) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - UPOE (675 W)
| Product Description | Cisco Catalyst 9300L - Network Essentials - switch - 48 ports - Managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (UPOE) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | UPOE |
| PoE Budget | 675 W |
| Performance | Switching capacity: 392 Gbps ? Switching capacity with stacking: 712 Gbps ? Forwarding rate: 291.66 Mpps ? Forwarding rate with stacking: 529.76 Mpps |
| Capacity | IPv4 routes: 32000 ? IPv6 routes: 16000 ? Multicast scale: 8000 ? QoS scale entries: 5120 ? ACL scale entries: 5120 ? VLANs supported: 4094 ? Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bt, Wi-Fi CERTIFIED 6 |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 48.8 cm |
| Weight | 7.65 kg |
| Manufacturer Warranty | Limited lifetime warranty |
Catalyst 9300L 48p, 12mGig, Network Essentials ,4x10G Uplink
