Catalyst 9500 48-port x 1/10/25G + 4-port 40/100G, Advantage C9500-48Y4C-A
SKU
400536
Brand
MPN
C9500-48Y4C-A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$33,175.00
Buy Now And Earn 33175 Reward Points!

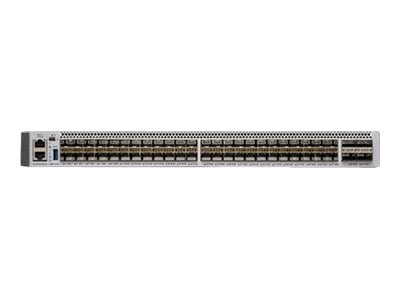

Cisco Catalyst 9500 - Network Advantage - switch - L3 - Managed - 48 x 25 Gigabit SFP28 - rack-mountable
| Product Description | Cisco Catalyst 9500 - Network Advantage - switch - 48 ports - Managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 48 x 25 Gigabit SFP28 |
| Performance | Switching capacity (full duplex): 3.2 Tbps ? Forwarding rate: 1 Bpps |
| Capacity | Routing table entries: 80000 ? Indirect IPv4 routes: 212000 ? Host IPv4 routes: 90000 ? Indirect IPv6 routes: 212000 ? Host IPv6 routes: 90000 ? Multicast scale: 32000 ? QoS ACL scale: 16000 ? Security ACL scale: 270000 ? FNF entries: 96000 ? VLAN IDs: 4000 ? Switched virtual interfaces (SVIs): 4000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF |
| Features | DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), MACsec support, Control plane protection (CoPP), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, CoAP support, Switched Port Analyzer (SPAN) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 45.7 cm x 4.39 cm |
| Weight | 9.96 kg |
| Manufacturer Warranty | Limited lifetime warranty |
Catalyst 9500 48-port x 1/10/25G + 4-port 40/100G, Advantage
