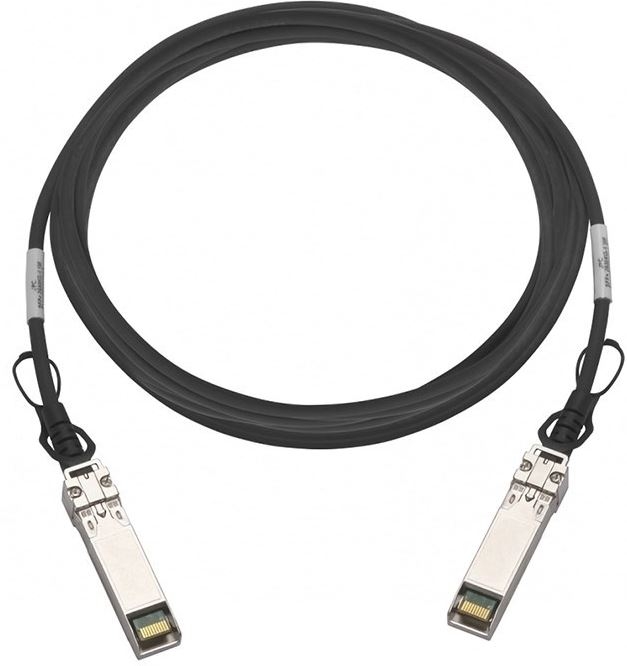

Qnap - Cab-Dac30M-Sfpp-Dec02 Sfp+ 10GbE Twinaxial Direct Attach Cable, 3.0M, S/N And Fw Update CAB-DAC30M-SFPP
SKU
367103
Brand
MPN
CAB-DAC30M-SFPP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$132.00
Buy Now And Earn 132 Reward Points!
QNAP - CAB-DAC30M-SFPP-DEC02 SFP+ 10GbE twinaxial direct attach cable, 3.0M, S/N and FW update
| SKU | CAB-DAC30M-SFPP |
|---|---|
| UPC | 885022019007 |
| ECCN | 5A991 (reported) |
| Brand | QNAP |
| Media | Copper (twinax) |
| Model | CAB-DAC30M-SFPP |
| Length | 3.0 m |
| Features | Passive twinax DAC for short-reach 10GbE interconnects Individually programmed, serialized and tested Low power, single 3.3V supply Lead-free / RoHS compliant |
| HTS Code | 85176200 (reported) |
| Standard | 10GBASE-CU |
| Warranty | Limited lifetime warranty (reported by multiple sources) |
| Cable Type | Direct-Attach Cable (DAC), Passive Twinax Copper |
| Wire Gauge | 30 AWG |
| Description | 3.0 m (9.8 ft) passive SFP+ direct-attach twinax copper cable (DAC) compatible with QNAP and many SFP+ devices. Supports 10GBASE-CU / 10 Gb/s links (listings also report up to 10.5 Gbps), SFP+ to SFP+ connectors (male on both ends), 30 AWG twinax conductors, single 3.3V power supply, and low power consumption. Cable is MSA- and IEEE-compliant, individually programmed/serialized and tested. Typical operating temperature 0 to 70°C. Limited lifetime warranty reported by multiple sources. |
| Form Factor | SFP+ to SFP+ |
| Length (ft) | 9.8 ft (approx. 9.84 ft) |
| Power Supply | +3.3V |
| Max Data Rate | 10 Gbit/s (some sources list up to 10.5 Gbps) |
| Product Title | QNAP CAB-DAC30M-SFPP 3m SFP+ 10Gb/s Passive Twinax Direct-Attach Cable (SFP+ to SFP+) |
| TAA Compliant | Yes — TAA-compliant variant reported (e.g., CAB-DAC30M-SFPP-DEC02) on some listings |
| Connector Type | SFP+ (male) to SFP+ (male) |
| RoHS Compliant | true |
| Jacket Material | PVC (OFNR reported) |
| Weight (approx.) | 0.16 lb / ~0.6 lb reported on different listings |
| Country of Origin | Reported variably (China, Taiwan, USA/UK) — varies by source/lot |
| Minimum Bend Radius | 23 mm (reported) |
| Low Power Consumption | <0.5 W (reported) |
| Manufacturer Part Number | CAB-DAC30M-SFPP |
| Compliance / Certifications | MSA compliant IEEE/10GBASE-CU CE (reported) FCC (reported) REACH (reported) |
| Operating Temperature Range | 0°C to 70°C |
| MPN / Alternate Part Numbers | CAB-DAC30M-SFPP CAB-DAC30M-SFPP-HPC CAB-DAC30M-SFPP-DEC02 CABDAC30MSFPP SFP-10G-DAC3M-QNA |
| Packaging / What's in the box | 1 x direct attach cable |
| Vendor / Device Compatibility | QNAP compatible; listings indicate compatibility with many OEM SFP+ ports and devices including Cisco, Dell, Arista, Juniper, HP, Intel, Mellanox, Brocade, NetApp and others (per vendor compatibility lists) |
QNAP - CAB-DAC30M-SFPP-DEC02 SFP+ 10GbE twinaxial direct attach cable, 3.0M, S/N and FW update
