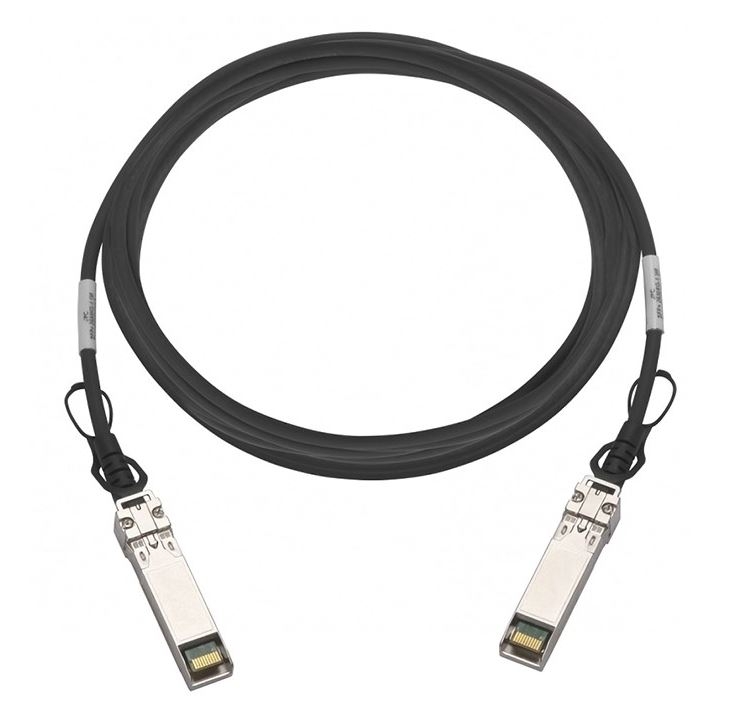

Qnap - Cab-Dac50M-Sfpp Sfp+ 10GbE Twinaxial Direct Attach Cable, 5.0M, S/N And Fw Update CAB-DAC50M-SFPP
SKU
388517
Brand
MPN
CAB-DAC50M-SFPP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$219.00
Buy Now And Earn 219 Reward Points!
QNAP - CAB-DAC50M-SFPP-DEC02 SFP+ 10GbE twinaxial direct attach cable, 5.0M, S/N and FW update
| MPN | CAB-DAC50M-SFPP |
|---|---|
| UPC | 885022018994 |
| GTIN | 0885022018994 |
| Brand | QNAP |
| Color | Black |
| Model | CAB-DAC50M-SFPP |
| Notes | Several listings market this as QNAP-compatible and/or factory-programmed for QNAP devices; at least one third-party listing explicitly states the product is NOT certified or endorsed by QNAP. Warranty information varies between sellers/listings (examples include 1 year, 24 months and lifetime). |
| Length | 5.0 m |
| Weight | ≈0.3–0.4 kg (listed variably: 0.3 kg / 0.33 kg / 0.4 kg / 0.6 lb) |
| Features | SFP+ to SFP+ direct attach cable Passive twinax copper Low power consumption Some listings show S/N and firmware programming/update Designed for short-reach 10GbE interconnects |
| Warranty | Varies by seller/listing (examples shown: 1 year; 24 months; lifetime) |
| Data Rate | 10 Gbit/s |
| Impedance | 100 Ω |
| Cable Type | Twinaxial (twinax) direct attach copper |
| Connectors | SFP+ to SFP+ (male) |
| Description | 5.0 meter (16.4 ft) SFP+ to SFP+ twinaxial direct-attach (DAC) copper cable for 10 Gigabit Ethernet connections. Passive SFP+ DAC supporting 10GbE (listings also report support up to ~10.5 Gbps), designed for short-reach, high-density connections between switches, NICs, storage systems and servers. Features a 3.3V supply, low power consumption (<0.5W reported), PVC jacket, 24 AWG conductors and RoHS/lead-free compliance. Operating environment listed as 0°C to 70°C (storage to -40°C to 85°C in some datasheets). Several listings note the cable is programmed/tested for QNAP devices and indicate S/N and firmware programming/update; some third-party vendors state the product is not certified/endorsed by QNAP. |
| Form Factor | SFP+ DAC |
| Length (ft) | 16.4 ft |
| Part Numbers | CAB-DAC50M-SFPP CAB-DAC50M-SFPP-HPC |
| Product Title | QNAP CAB-DAC50M-SFPP 5.0m (16.4') SFP+ 10GbE Twinaxial Direct Attach Cable (Passive) |
| Cable Standard | 10GBASE-CU |
| Passive/Active | Passive |
| Supply Voltage | +3.3 V |
| Jacket Material | PVC |
| Wire Gauge (AWG) | 24 AWG |
| Country of Origin | Taiwan (listed on some listings) |
| Power Consumption | <0.5 W (reported) |
| Package Dimensions | 11.7 x 9.3 x 1.15 in (listed on one package specification) |
| Minimum Bend Radius | 35 mm (listed in some datasheets) |
| Storage Temperature | -40°C to 85°C (listed in some datasheets) |
| Conductor / Material | Copper (twinax) |
| Operating Temperature | 0°C to 70°C |
| Compliance / Standards | RoHS Compliant Lead-free SFF-8472 SFF-8431 IEC/EN 61000-4-2 MIL-STD-883E |
| Max Data Rate (as listed) | Up to 10.5 Gbps (reported by some listings) |
| Compatible Devices / Applications | SFP+ 10GbE switches Network adapters / NICs NAS / SAN storage systems Servers High-density networking equipment / data center cabling |
QNAP - CAB-DAC50M-SFPP SFP+ 10GbE twinaxial direct attach cable, 5.0M, S/N and FW update
