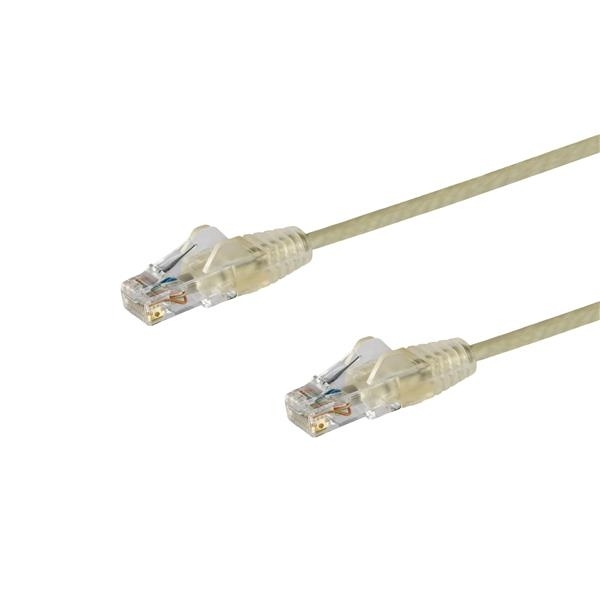

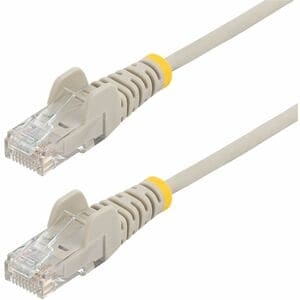

Startech 0.5 m CAT6 Cable - Slim CAT6 Patch Cord - Grey - Snagless RJ45 Connectors - Gigabit Ethernet Cable - 28 AWG N6PAT50CMGRS

SKU
296743
Brand
MPN
N6PAT50CMGRS
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$8.00
Buy Now And Earn 8 Reward Points!

This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit network connection in high-density data center applications.

Easy Cable Runs

The design of this slim CAT6 patch cord is 36% thinner than standard networking cables, which allows better airflow and heat dissipation in tight spaces. The cable is also more flexible than standard Ethernet cables, so cable runs are easier in crowded network racks.

This cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break as you pull them through narrow spaces.

Protect Your Equipment

This CAT6 patch cable is tested to comply with ANSI/TIA 568 C.2 Category 6 requirements ensuring a reliable connection to your networking equipment. Certified with Low Smoke Zero Halogen (LSZH) fire rating, this patch cord ensures a safe connection.

The 50-micron gold connectors on the patch cable deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.

High-Quality Construction

Each CAT6 cable is manufactured using high-quality copper conductors and is carefully constructed and tested to keep Near-End Crosstalk (NEXT) well within acceptable limits. Plus, each cable is built with 28 AWG copper wire, to ensure peak performance for your demanding Ethernet applications.

N6PAT50CMGRS is backed by StarTech.com lifetime warranty and free lifetime technical support.

HARDWARE
  Cable Jacket Material Al(OH)3 (Aluminium Hydroxide), EVA (Ethylene-Vinyl Acetate Copolymer)
  Cable Type Snagless
  Connector Plating Gold
  Fire Rating LSZH Rated (Low Smoke Zero Halogen)
  Number of Conductors 4 pair UTP
  Wiring Standard TIA/EIA-568-B.1-2001 T568B
PERFORMANCE
  Cable Rating CAT6 - 250 MHz
CONNECTOR(S)
  Connector A 1 - RJ-45 Male
  Connector B 1 - RJ-45 Male
PHYSICAL CHARACTERISTICS
  Cable Length 0.5 m [1.6 ft]
  Color Gray
  Conductor Type Stranded Copper
  Product Height 1 cm [0.4 in]
  Product Length 0.5 m [1.6 ft]
  Product Width 20 mm [0.8 in]
  Weight of Product 14 g [0.5 oz]
  Wire Gauge 28 AWG
PACKAGING INFORMATION
  Package Height 0.1 mm [0 in]
  Package Length 20 cm [7.9 in]
  Package Width 22 cm [8.7 in]
  Shipping (Package) Weight 24 g [0.8 oz]
WHAT'S IN THE BOX
  Included in Package 1 - 50 cm Slim CAT6 Cable
