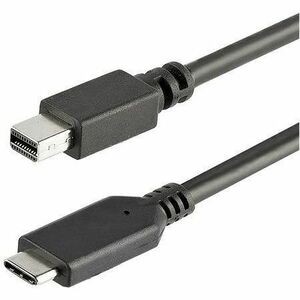

Startech Usb-c To Mini Displayport Cable - 3 Ft / 1m - Black - 4k 60hz - Usb C To Mdp - Usb 3.1
QUICK OVERVIEW
Overview
This USB-C™ to Mini DisplayPort adapter cable offers a convenient solution for directly connecting your DisplayPort over USB Type-C™ device to your Mini DP monitor. The adapter offers a connection distance of up to 1 m (3 ft.) and works with USB-C devices that support DP Alt Mode, such as the MacBook, Chromebook Pixel™ and Dell™ XPS™ models 15 and 13. It's also compatible with Thunderbolt™ 3 ports.
Clutter-free installation
At 1 m (3 ft.) in length, this adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation.
For longer installations, StarTech.com also offers a 1.8 m (6 ft.) USB-C to Mini DisplayPort cable (CDP2MDPMM6B), enabling you to choose the right cable length for your custom installation needs.
Astonishing picture quality
At four times the resolution of high-definition 1080p, you’ll be amazed at the picture quality of a 4K 60Hz monitor or television. This adapter cable lets you harness the video capabilities that are built into your USB Type-C connection, to deliver the astonishing quality of Ultra HD to your 4K display.
Plus, the adapter is still compatible with lower display resolutions, such as 1080p, which makes it a great accessory for your current home, office or other HD work environment, while future-proofing for 4K 60Hz implementation.
The CDP2MDPMM1MB is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| PRODUCT NUMBERS | ||
|---|---|---|
| TechData Dis | 13164870 | |
| ASI | 215703 | |
| D and H | CDP2MDPMM1MB | |
| Ingram Micro USA | 3FM609 | |
| Synnex US | STA-CDP2MDPMM1MB | |
| UPC Code | 065030878739 | |
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Adapter Style | Cable Adapters | |
| AV Input | USB Type-C | |
| AV Output | Mini-DisplayPort | |
| Chipset ID | STMicroelectronics - STM32F072CBU6 | |
| Ports | 1 | |
| PERFORMANCE | ||
| Audio Specifications | 7.1 surround sound | |
| Maximum Digital Resolutions | 3840x2160 @ 60 Hz | |
| Supported Resolutions | 1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1440 2560x1600 3840x2160 (Ultra HD 4K) | |
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Connector A | 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input | |
| Connector B | 1 - Mini-DisplayPort (20 pin) Male Output | |
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. | |
| ENVIRONMENTAL | ||
| Humidity | 25%-60%RH | |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 3.3 ft [1 m] | |
| Color | Black | |
| Product Height | 0.4 in [10 mm] | |
| Product Length | 3.3 ft [1 m] | |
| Product Weight | 0.9 oz [25 g] | |
| Product Width | 0.8 in [20 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 0.1 lb [0 kg] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - USB-C to Mini DisplayPort cable | |
