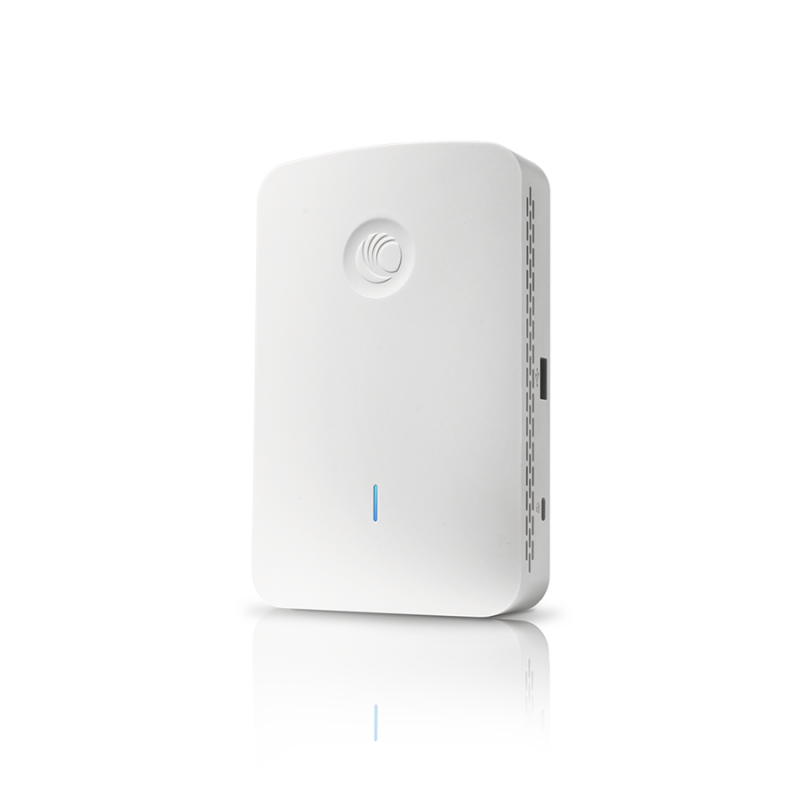

Cambium CnPilot E425H Indoor (Row) 802.11ac Wave 2, Wall Plate Wlan Ap W/ Single-gang Wall Bracket PL-E425H00A-RW
SKU
289561
Brand
MPN
PL-E425H00A-RW
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$296.00
Buy Now And Earn 296 Reward Points!
cnPilot e425H Indoor (ROW) 802.11ac wave 2, Wall plate WLAN AP w/ single-gang wall bracket
| SKU | PL-E425H00A-RW |
|---|---|
| Brand | Cambium Networks |
| Model | cnPilot e425H |
| Notes | Features and capacities consolidated from product documentation. No seller-specific availability or pricing included. |
| Region | ROW |
| Weight | 0.5 kg |
| Category | Networking |
| Standard | IEEE 802.11ac Wave 2 |
| Management | cnMaestro cloud cnMaestro on-premises Controller-less operation |
| Description | The Cambium Networks cnPilot e425H is an indoor wall-plate access point purpose-built for hospitality, multi-dwelling units (MDUs) and other multi-tenant environments. It delivers 802.11ac Wave 2 performance with 2x2 MIMO, multiple Gigabit Ethernet ports for wired access, and a single-gang wall mount bracket included. The e425H supports both cnMaestro cloud and on-premises management or controller-less operation with network-wide roaming, guest portal features (splash page, vouchers, social login, payment gateway), and mesh capability with other Cambium APs. Per-AP capacity supports up to 100 concurrent client associations, with support for network roaming up to 1,024 clients, up to 16 SSIDs, airtime fairness, autoRF, band steering and dual active/standby memory banks for high availability. |
| Form Factor | Wall Plate |
| Installation | Indoor |
| Mesh Support | Supported with e425H and other Cambium indoor/outdoor APs |
| SSID Support | 16 |
| Sub-Category | Wireless Networking |
| Product Title | Cambium Networks cnPilot e425H Indoor 802.11ac Wave 2 Wall-Plate AP (single-gang bracket, ROW) |
| Ethernet Ports | Multiple Gigabit Ethernet ports (includes uplink Gigabit interface) |
| High Availability | Dual on-board active/standby memory banks |
| Included Accessories | Single-gang wall mount bracket |
| Optional Accessories | On-wall bracket Dual-gang wall bracket |
| Antenna Configuration | 2x2 MIMO |
| Guest Access Features | Splash page guest portal Vouchers for temporary guest access Social login Payment gateway support |
| Manufacturer Part Number | PL-E425H00A-RW |
| Performance & QoS Features | Airtime fairness autoRF (automatic RF optimization) Band steering |
| Max Concurrent Clients (per AP) | 100 |
| Max Roaming Clients (network-wide) | 1024 |
Cambium cnPilot e425H Indoor (ROW) 802.11ac wave 2, Wall plate WLAN AP w/ single-gang wall bracket
