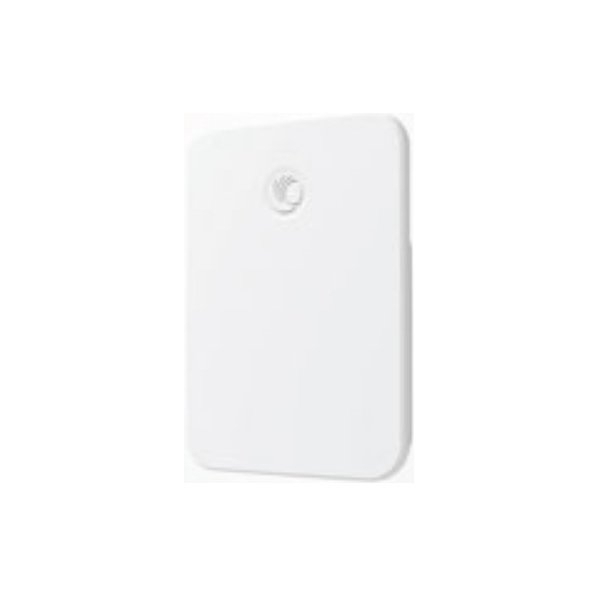

Cambium CnPilot E510 Outdoor (Row) 802.11ac Wave 2, 2x2, 8 DBi, Wlan Ap PL-E510X00A-RW
SKU
289563
Brand
MPN
PL-E510X00A-RW
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$815.00
Buy Now And Earn 815 Reward Points!

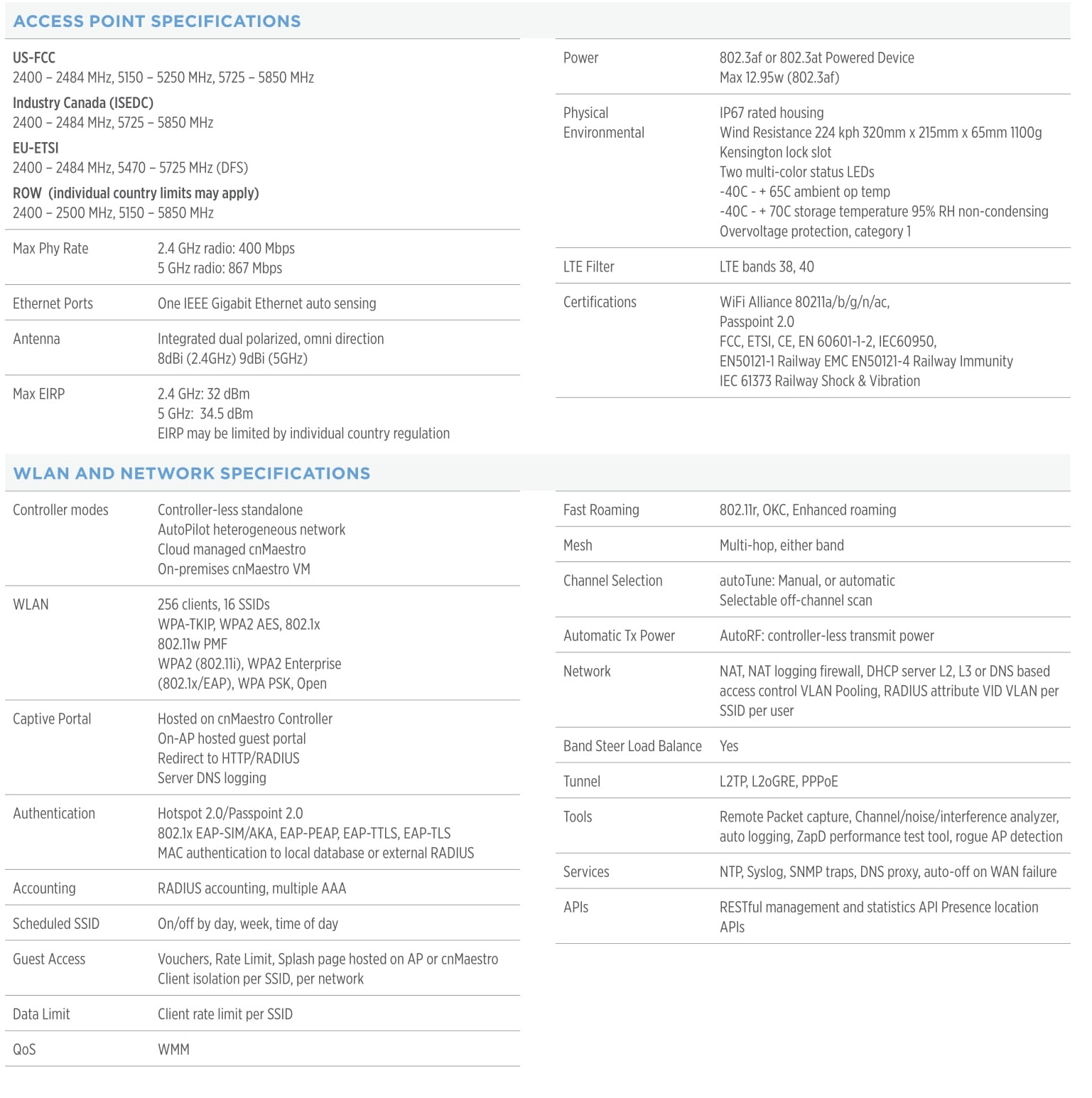

cnPilot e510 Outdoor (ROW) 802.11ac wave 2, 2x2, 8 dBi, WLAN AP
| SKU | PL-E510X00A-RW |
|---|---|
| MIMO | 2x2 |
| Bands | Dual-band (2.4 GHz and 5 GHz) |
| Brand | Cambium Networks |
| Model | cnPilot e510 |
| Ports | 1 × Gigabit Ethernet (auto-sensing) |
| Region | ROW |
| Weight | Less than 1100 g |
| Use Cases | Outdoor public Wi‑Fi, hospitality, education campuses, industrial and enterprise outdoor coverage |
| LTE Filter | Yes |

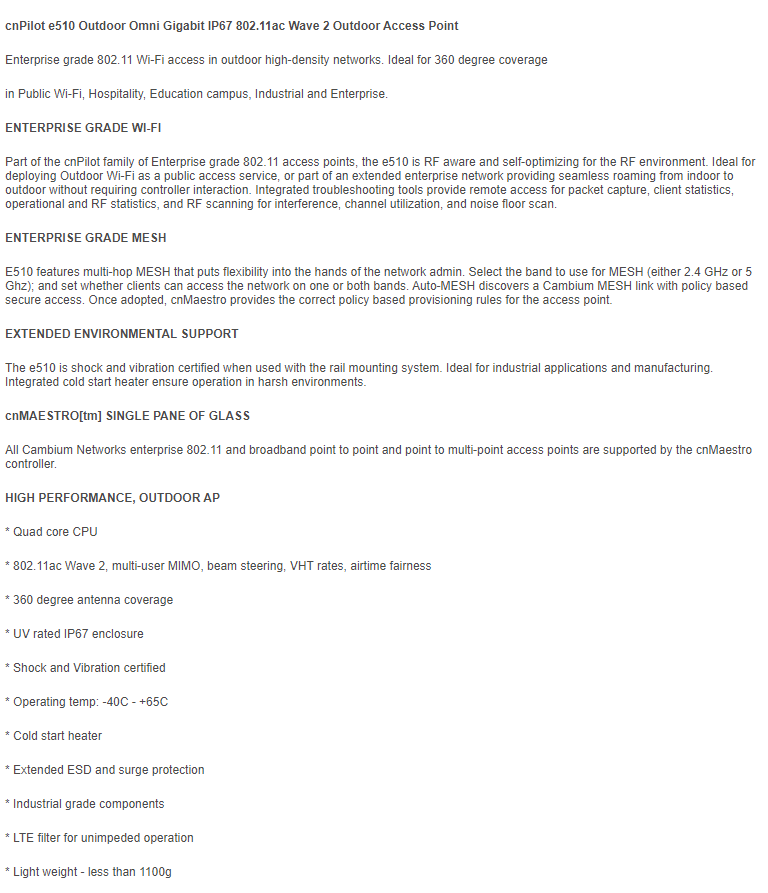

| Description | Enterprise-grade outdoor Wi‑Fi access point designed for high-density public, hospitality, education, industrial and campus deployments. The cnPilot e510 delivers 802.11ac Wave 2 (Wi‑Fi 5) performance with 2x2 MU‑MIMO, beamforming and airtime fairness for improved client experience. It features an IP67 UV-rated enclosure, 8 dBi omnidirectional antenna with 360° coverage, multi-hop mesh capability, and seamless roaming. Hardened for harsh environments with shock and vibration certification (with rail mount), an integrated cold-start heater, extended ESD/surge protection and an LTE filter. Centralized management is supported via Cambium cnMaestro (cloud or on-premises), controller-less modes and AutoPilot. PoE powered (802.3af/802.3at) with one Gigabit Ethernet port, suitable for robust outdoor deployments. |
| Form Factor | Outdoor Omni |
| Power (PoE) | 802.3af or 802.3at (Powered Device). Max 12.95 W (802.3af) |
| Antenna Gain | 8 dBi |
| Antenna Type | Omnidirectional |
| Mesh Support | Multi-hop mesh (selectable band for mesh; policy-based secure Auto-MESH) |
| Product Title | Cambium Networks cnPilot e510 (PL-E510X00A-RW) Outdoor 802.11ac Wave 2 Wi-Fi 5 Access Point |
| Antenna Coverage | 360° |
| Wi-Fi Generation | Wi‑Fi 5 |
| Cold Start Heater | Yes |
| Country of Origin | China |
| Wireless Standard | 802.11ac Wave 2 |
| Ingress Protection | IP67 |
| Key Wireless Features | MU-MIMO, beamforming, VHT rates, airtime fairness, seamless roaming |
| Max Power Consumption | Max 12.95 W (802.3af) |
| Operating Temperature | -40°C to +65°C |
| ESD and Surge Protection | Extended ESD and surge protection |
| Shock and Vibration Certified | Yes (when used with rail mounting system) |
| Network Management / Controller Support | Controller-less standalone, AutoPilot heterogeneous network, cnMaestro cloud-managed, cnMaestro on-premises VM |
Cambium cnPilot e510 Outdoor (ROW) 802.11ac wave 2, 2x2, 8 dBi, WLAN AP
