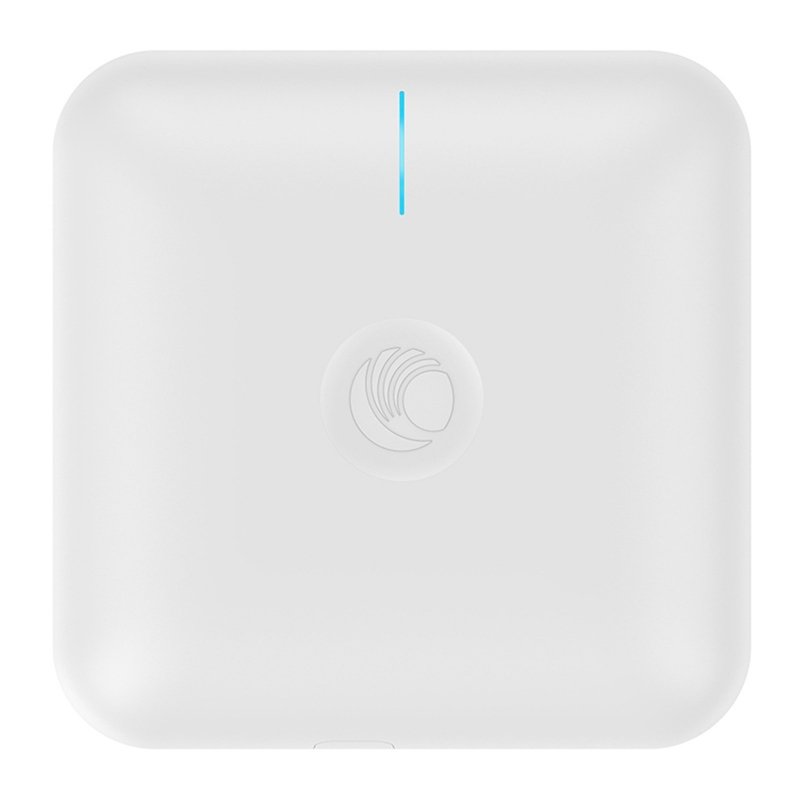

Cambium CnPilot E600 Indoor (Row) 802.11ac Wave 2, 4x4, Ap PL-E600X00A-RW
SKU
289564
Brand
MPN
PL-E600X00A-RW
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$650.00
Buy Now And Earn 650 Reward Points!
cnPilot E600 Indoor (ROW) 802.11ac wave 2, 4x4, AP

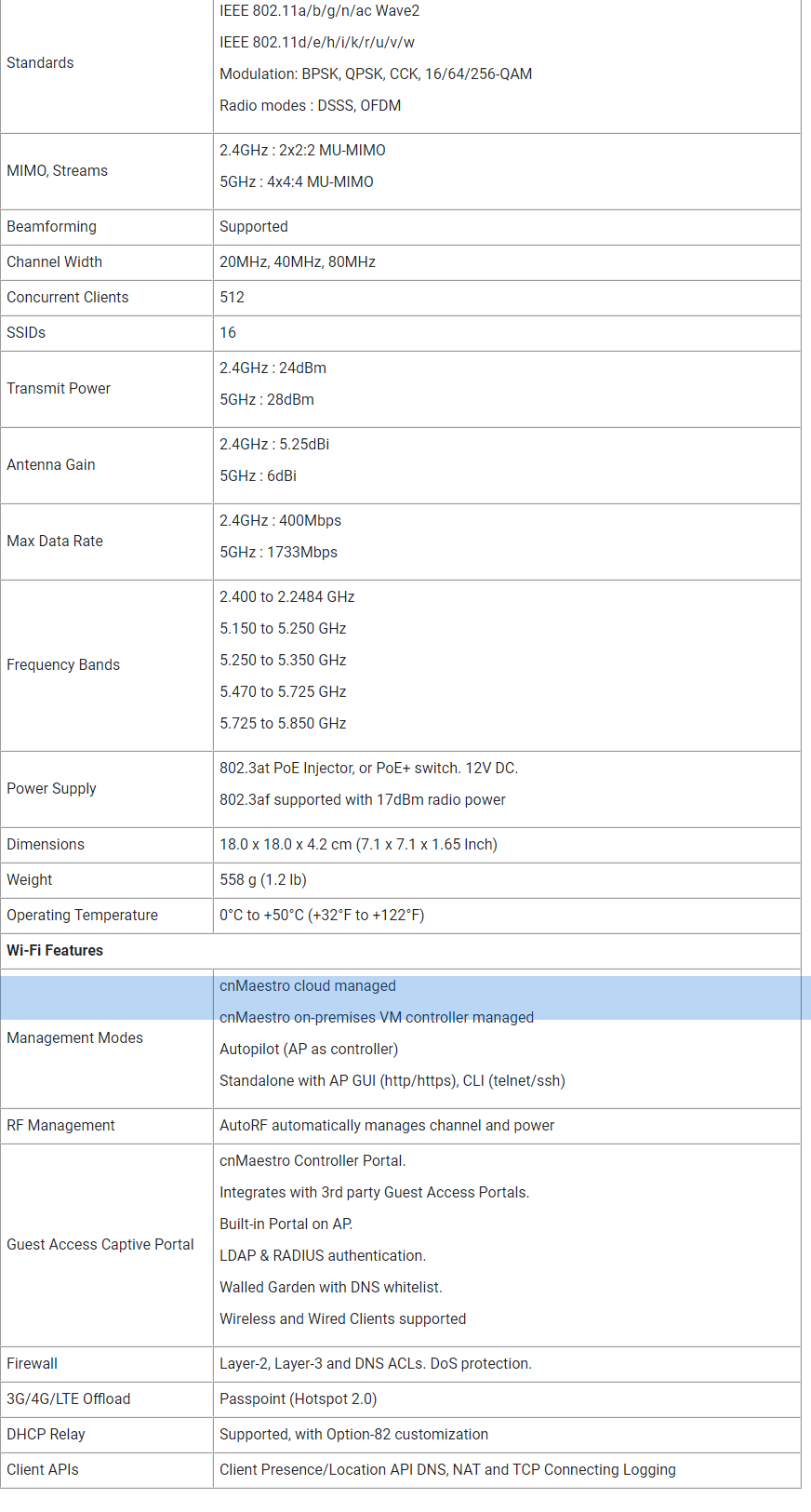

| MPN | PL-E600X00A-RW |
|---|---|
| SKU | PL-E600X00A-RW |
| MIMO | MU-MIMO 4x4 (5 GHz) |
| Bands | Dual-band (2.4 GHz and 5 GHz) |
| Brand | Cambium Networks |
| Model | cnPilot E600 |
| Notes | Some sources list differing maximum concurrent client counts (256 vs. 512); consolidated value reflects majority reporting. IP67/outdoor rating claim from one source conflicts with multiple sources that identify this SKU as an indoor access point; the unit is listed as indoor/plenum-rated and power is sold separately. |
| SSIDs | 16 |
| Colour | Black |
| Warranty | 5 year (listed as standard/limited 5-year warranty) |
| Beamforming | Yes |

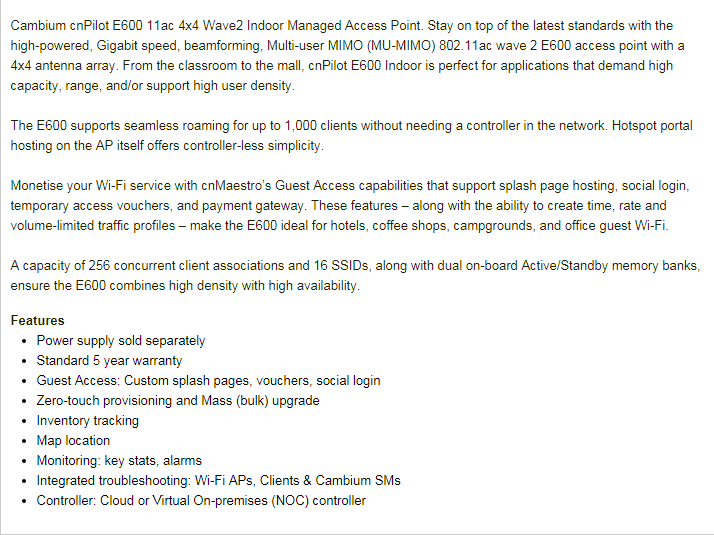

| Description | The Cambium Networks cnPilot E600 is a high-performance 802.11ac Wave 2 indoor access point designed for high-density environments. It delivers dual-band (2.4 GHz / 5 GHz) Gigabit Wi‑Fi with MU-MIMO and beamforming to improve client speeds and capacity. Manage devices centrally with Cambium's cnMaestro cloud or on‑premises controller (free cloud/on‑premises controller included) or operate controller-less with seamless roaming for up to 1,000 clients. The E600 supports guest access features (custom splash pages, vouchers, social login, payment gateway), airtime fairness, automatic channel scanning (ACS), band steering, indoor meshing (including mesh with outdoor E500), and high availability with dual on‑board active/standby memory banks. The AP is plenum-rated, DFS certified, and optimized for environments such as schools, hotels, shopping malls, and enterprise offices. Note: power supply/PoE injector sold separately. |
| Part Number | PL-E600X00A-RW |
| Mesh Support | Indoor meshing; indoor/outdoor mesh interoperability with cnPilot E500 |
| Plenum Rated | Yes |
| Antenna Array | 4x4 (overall / 5 GHz focused) |
| DFS Certified | Yes |
| Power Options | Requires external PoE injector or separate power supply (sold separately) |
| Product Title | Cambium Networks cnPilot E600 802.11ac Wave 2 Dual-Band Indoor Access Point (PL-E600X00A-RW) |
| WLAN Security | WPA-TKIP, WPA2 AES, WPA3 (as listed by sources), 802.11w (Protected Management Frames) |
| Authentication | RADIUS-based 802.1x (EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS), MAC authentication, secure web page |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Mounting / Use | Indoor |
| Roaming Capacity | Supports controller-less roaming for up to 1,000 clients |
| Country of Origin | China |
| High Availability | Dual on-board Active/Standby memory banks |
| Wireless Standard | 802.11ac Wave 2 (Wi-Fi 5) |
| Controller Support | Managed by cnMaestro cloud or on‑premises controller; free cloud/virtual on‑premises controller available |
| Max Transmit Power | 28 dB |
| Controller Included | Free cloud or virtual on‑premises controller (no AP management license fees) |
| Radio Configuration | 5 GHz: 4x4; 2.4 GHz: 2x2 |
| Guest Access Features | Splash pages, social login, temporary vouchers, payment gateway support, time/rate/volume-limited traffic profiles |
| PoE Injector Included | No |
| Power Supply Included | No |
| Concurrent Client Associations | 256 |
Cambium cnPilot E600 Indoor (ROW) 802.11ac wave 2, 4x4, AP
