Cambium E430H Indoor (Row) 802.11ac Wave 2, 2x2, Wall Plate Wlan Ap With Single Gang Wall Bracket PL-E430H00A-RW
SKU
289566
Brand
MPN
PL-E430H00A-RW
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$459.00
Buy Now And Earn 459 Reward Points!
E430H Indoor (ROW) 802.11ac wave 2, 2x2, Wall plate WLAN AP with single gang wall bracket

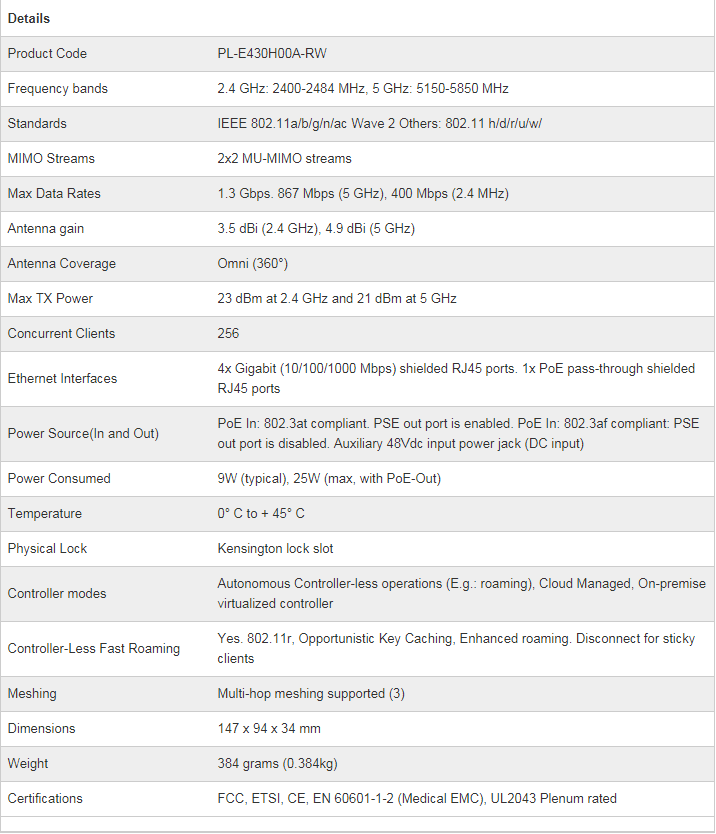

| SKU | PL-E430H00A-RW |
|---|---|
| Mesh | Indoor meshing supported (indoor-indoor and indoor-outdoor with compatible Cambium APs) |
| Brand | Cambium Networks |
| Model | cnPilot e430H |
| SSIDs | Up to 16 |
| EAN/UPC | 5704174394228 |
| Category | Networking |
| Security | WPA-TKIP WPA2 WPA2-AES 802.1x RADIUS EAP-AKA EAP-FAST EAP-GTC EAP-PEAP EAP-SIM EAP-TLS EAP-TTLS MSCHAPv2 PEAP WDS |
| Warranty | 5 years |
| Base Type | Wall Plate AP |
| Bluetooth | Yes, Bluetooth 4.0 (BLE) |
| Placement | Wall or table |
| Management | cnMaestro (cloud and on-premises) Standalone operation AutoPilot (local controller for small networks) SNMP v1/v2c/v3 Command-line interface (CLI) Syslog |
| Modulation | BPSK QPSK 16-QAM 64-QAM 256-QAM CCK |

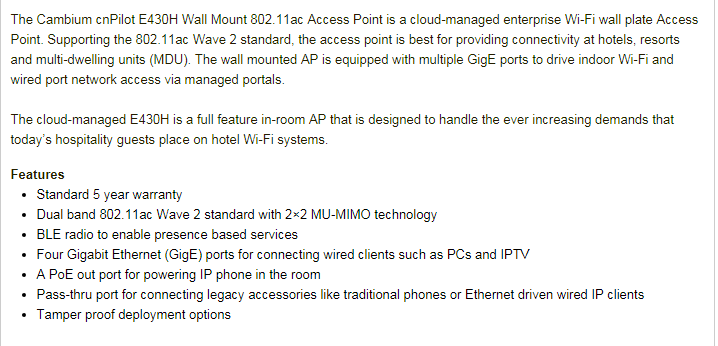

| Description | The Cambium Networks cnPilot e430H is an enterprise-class indoor wall-plate access point supporting 802.11ac Wave 2 with beamforming and 2x2 MU-MIMO. Designed for hospitality, multi-dwelling units (MDUs) and other indoor deployments, the e430H provides Gigabit Ethernet connectivity with PoE, internal omni-directional antennas, integrated Bluetooth 4.0, and advanced software features. Management options include standalone operation, cnMaestro cloud or on-premises controller, and AutoPilot for small networks. Features include zero-touch onboarding, inventory and configuration management, monitoring and troubleshooting, guest splash-page portals with voucher and social-login monetization, controller-less roaming, indoor meshing, airtime fairness, band steering, support for up to 16 SSIDs, and a high-availability design with dual active/standby memory banks. The package includes a single-gang wall-mount bracket; optional dual-gang bracket and desktop stand are available. |
| PoE Support | Yes (IEEE 802.3af, IEEE 802.3at) |
| Antenna Gain | 4.9 dBi |
| Antenna Type | Internal, omni-directional |
| Reset Button | Yes |
| Sub-Category | Wireless Networking |
| VLAN Support | Yes |
| Documentation | Datasheet and product brief available from manufacturer |
| Product Color | White |
| Product Title | Cambium Networks cnPilot e430H Wall-Plate 802.11ac Wave 2 2x2 MU-MIMO Indoor Access Point (PoE, Bluetooth 4.0) |
| Auto MDI/MDI-X | Yes |
| Certifications | FCC CE IC UL WEEE RoHS |
| Ethernet Ports | 1 x RJ-45 (10/100/1000Base-T) |
| LED Indicators | Yes |
| Frequency Bands | 2.4 - 2.2484, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| Spread Spectrum | DSSS OFDM |
| Wi-Fi Standards | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac (Wave 2) IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11u IEEE 802.11v IEEE 802.11w |
| Wireless Features | Beamforming Band steering Automatic channel scanning (ACS) Airtime fairness |
| Networking Features | DHCP server IGMP snooping MAC address filtering |
| Storage Temperature | 5 - 95 °C |
| Wireless Technology | 2x2 MU-MIMO (Wave 2) |
| Included Accessories | Single-gang wall mount bracket |
| Optional Accessories | Dual-gang wall bracket Desktop stand |
| Operating Temperature | 0 - 45 °C |
| Antenna Direction Type | Omni-directional |
| Max Concurrent Clients | 256 |
| Ethernet LAN Data Rates | 10/100/1000 Mbps |
| Power Consumption (Max) | 25 W |
| Antenna Gain Level (Max) | 4.9 dBi |
| Quality of Service (QoS) | Yes (WMM/WME, QoS support, airtime fairness) |
| Seamless Roaming Support | Supports network-wide seamless roaming for up to 1,000 clients |
| Memory / High Availability | Dual on-board Active/Standby memory banks |
| Guest Access / Monetization | Splash page guest portal, vouchers, social login, payment gateway support (via cnMaestro) |
| Power Consumption (Typical) | 9 W |
| Manufacturer Part Number (MPN) | PL-E430H00A-RW |
Cambium E430H Indoor (ROW) 802.11ac wave 2, 2x2, Wall plate WLAN AP with single gang wall bracket
