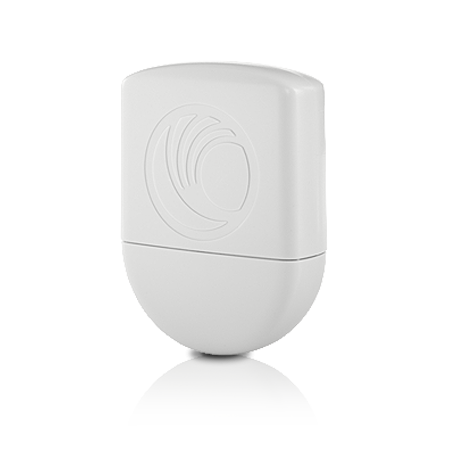

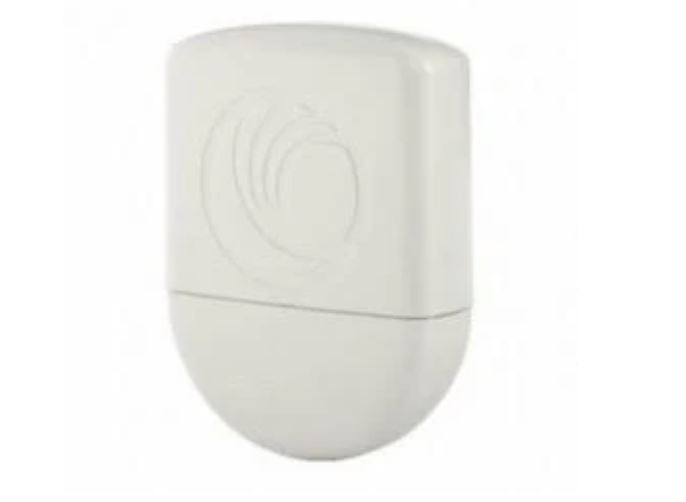

Cambium Gigabit Surge Suppressor (30V) C000000L065A
SKU
293268
Brand
MPN
C000000L065A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$75.00
Buy Now And Earn 75 Reward Points!
Cambium Networks Cambium Gigabit Surge Suppressor (30V) is a supplier-matched product available from Spot IT.
Use this item for compatible business, office, and IT requirements. Manufacturer part number: CB00AGBS.
Order online for Australia-wide delivery with local support.
Use this item for compatible business, office, and IT requirements. Manufacturer part number: CB00AGBS.
Order online for Australia-wide delivery with local support.
| MPN | C000000L065A |
|---|---|
| UPC | 748528970848 |
| ASIN | B07PV4VLT6 |
| Brand | Cambium Networks |
| Color | White |
| Model | C000000L065A |
| Notes | C000000L065A is the 30V version; C000000L033A is the 56V version — select the appropriate voltage version for the radio being deployed. |
| Voltage | 30 Volts |
| Ethernet | Gigabit Ethernet (1000Base-T / 1000 Mbps) |
| Material | Rugged metal housing |
| Mounting | Pole mount or wall mount; ships suitable for mounting to a wall or pole; includes mounting hardware |
| Warranty | Manufacturer 1 year (from delivery date) |
| Datasheet | https://wdi.rfwel.com/cdn/techdocs/30V-Gigabit-Ethernet-Surge-Suppressor-Spec-Sheet.pdf |
| Description | Outdoor Gigabit Ethernet surge suppressor designed by Cambium Networks to protect mast-mounted radios from lightning-induced surges. Nominal 30V device provides line-to-line and line-to-ground protection using TVS diodes, with a surge current rating L-G total 216A (10/1000 µs) and a typical response time of 5 ns. Rugged metal housing in a compact, slim rectangular form factor for pole or wall mounting; compatible with Cambium 30V radios including PMP 450/450b Subscriber Modules, F180 and F200. Supports 1000Base-T (Gigabit Ethernet) and ships with mounting hardware. |
| Item Weight | 7 ounces |
| Compatibility | Cambium 30V radios (PMP 450 and 450b Subscriber Modules, F180, F200 and other 30V Gigabit products) |
| Product Title | Cambium C000000L065A - Gigabit Surge Suppressor 30V |
| Response Time | 5 ns (typical) |
| Wireless Type | Radio Frequency |
| Nominal Voltage | 30 V |
| Protection Mode | Line-to-line and line-to-ground |
| Special Feature | Radio |
| Package Dimensions | 5.12 x 3.94 x 2.36 inches |
| Product Dimensions | 2 x 3 x 5 inches |
| Total Power Outlets | 1 |
| Surge Current Rating | L-G total 216 A (10/1000 µs) |
| Surge Protection Type | TVS diodes (Transient Voltage Suppression) |
| Manufacturer Part Number | C000000L065A |
