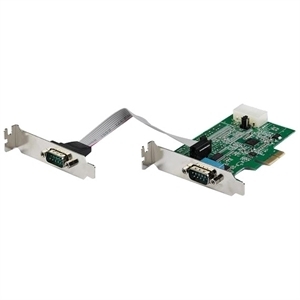

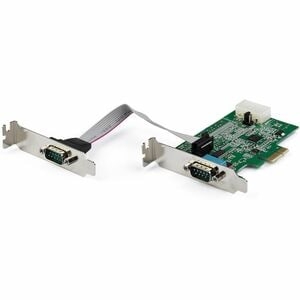

Startech Card - 2 Port Rs232 Serial Adapter Pcie Pex2S953Lp

SKU
284808
Brand
MPN
PEX2S953LP
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$102.00
Buy Now And Earn 102 Reward Points!

This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

  • Compatible with industry standard 16950 UART
  • Supports max baud rate of up-to 921.4Kbps
  • Provides 5/12V power output on Pin 9 when external power is connected
  • 128-byte depth FIFO per transmitter and receiver
  • Supports 9, 8, 7, 6, 5 data bits
  • Asix AX99100 chipset
  • PCI Express 1.1 compliant

PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Basic
Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express
Number of Serial Ports (External): 2
Product Type: Serial Adapter
General Information
Brand Name: StarTech.com
Manufacturer Website Address: http://www.startech.com/au
Manufacturer: StarTech.com
Packaged Quantity: 1
Product Name: 2-Port RS232 Serial Adapter Card with 16950 UART
Product Type: Serial Adapter
Interfaces/Ports
Number of Serial Ports (External): 2
Physical Characteristics
Card Height: Low-profile
Form Factor: Plug-in Card
Technical Information
Host Interface: PCI Express
Platform Supported: Linux
PC
