SPECIFICATIONS

• Material: Phosphor bronze contacts with 60 to 50u” gold plating
• Jack insertion life > 750 mating cycles
• IDC insertion life > 250 mating cycles
• Operating temperature -40 to + 60 degrees Celsius
• Contact resistance: 20m ohm
• DC Current rating: 1.5Amps
• DC resistance : Max 0.1 ohm
• Insulation Resistance: 500 ohm
• Dielectric withstanding voltage: 1000v

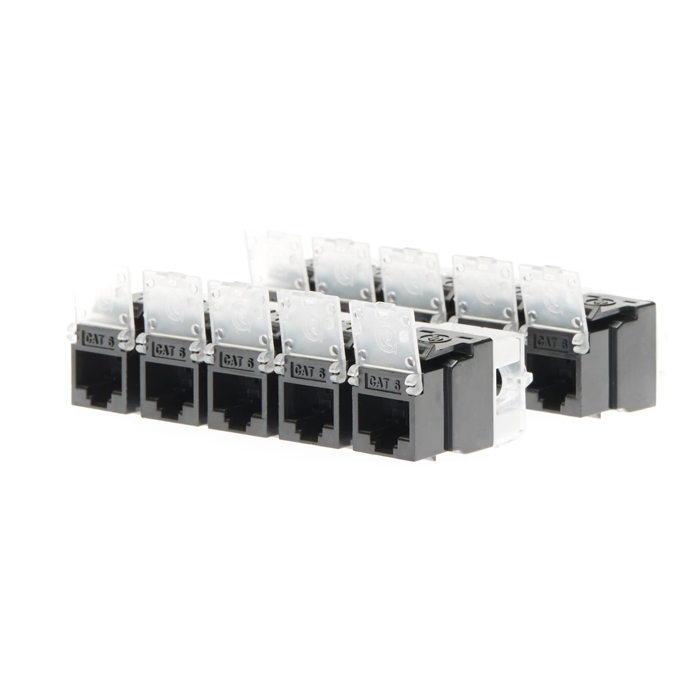

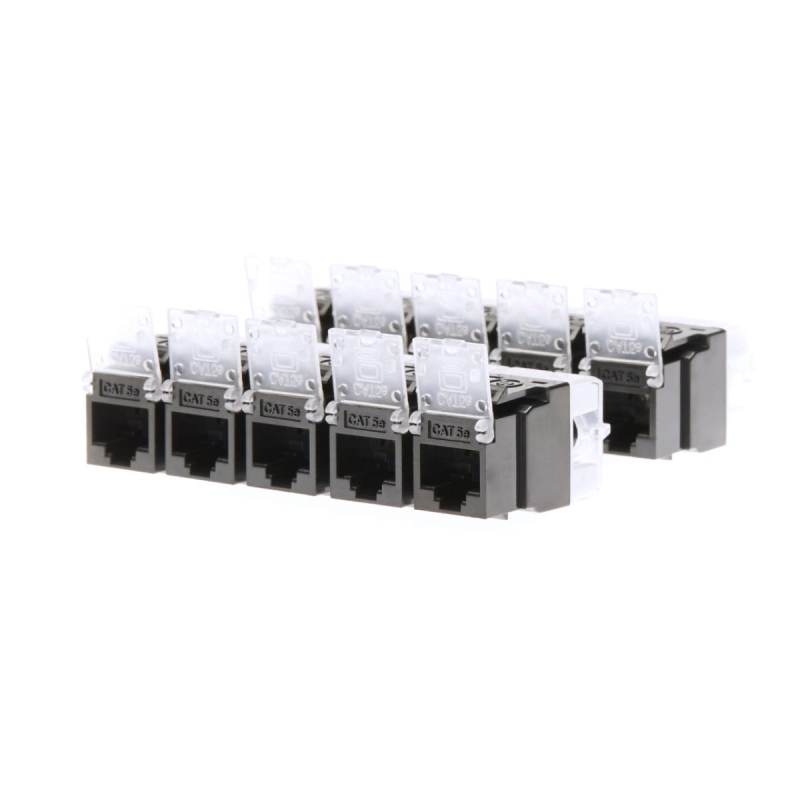

Cat 5E RJ45 Keystone Jack - 10 Pack BlackBulk buy of 4Cabling universal range of Cat5E Keystone Jacks can be terminated using both a KATT & 110 style punch down tool. These jacks are designed for 22-26 AWG solid conductors. They are designed for use with UTP network cable and are ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications. Each outlets features PCB technology which maintains low insertion loss, return loss and cross talk.Approved by the ACMA (Atick). FEATURESBlack finishDesigned for 22-26 AWG Solid Conductors.Termination Cap keeps the wires firmly in place.Jacks are UL Listed, Comply with TIA/EIA 568-B-2.1Terminated with both a KATT & 110 Punch Down Tools.Combined T568A & T568B color coding for easy installation.Compatible with keystone face plates, surface mount boxes and patch panels.Unique patented removable dust caps are handy to protect your outlets when not in use.RJ45 Complies with FCC Part 68 Standard.3 Year Warranty SPECIFICATIONSMaterial: Phosphor bronze contacts with 60 to 50u” gold platingJack insertion life > 750 mating cyclesIDC insertion life > 250 mating cyclesOperating temperature -40 to + 60 degrees CelsiusContact resistance: 20m ohmDC Current rating: 1.5AmpsDC resistance : Max 0.1 ohmInsulation Resistance: 500 ohmDielectric withstanding voltage: 1000v WHY 4CABLING?100% Aussie owned and operated.Expert advice and sales team.Trusted by over 100,000 Aussie customersISO 9001, NSW & QLD government approved supplierMassive stock levels, ready to goLightning fast delivery nationwideWarranty & easy return policySecure online shopping 24/7
