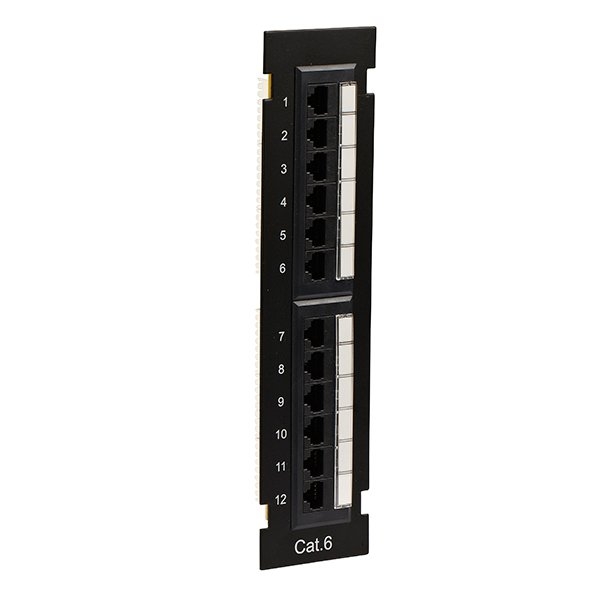

4Cabling CAT6 Wall Mount Patch Panel 12 Port Universal Termination

This 4Cabling patch panel is a wall mount with RJ45 jack panels. The unit can be terminated using both a KATT & 110 style punch down tool. Blank anodized panels can be mounted directly for easy port identification.

FEATURES

Port numbering enables fast identification of outlets
Meet or exceed the requirement of ANSI/TIA/EIA 568B. 2
Keystone jacks and keystone inserts configure to accommodate a variety of schemes
Sturdy Aluminum Plate around RJ45 Jacks
Phosphor bronze with 6-50 micro inches gold plated
Available with T568A/B wiring pattern and meeting the requirement of Cat 6 standard
Termination accepts 22, 24 26 AWG (0.64, 0.5 and 0.4 )solid wires
Colour coded for both EIA / TIA 568 A or B wiring style
The unit can be terminated using both a KATT & 110 style punch down tool
This product has an RCM approved A-Tick*
The package contains 1 x 12 Port Patch Panel, 1 x Mounting bracket and 1 x Set of screws to suit

Measurements:

Width 60mm x Length 252mm x Depth 45mm

WARRANTY

1-year limited warranty.

*The A-tick and RCM supplier code indicates compliance with Australian telecommunications requirements and that the equipment can be legally connected to the Australian Telecommunications Network. Our RCM supplier code is N15442
