4cabling Cat 6 1ru 48 Port Patch Panel 006.004.0048
Details

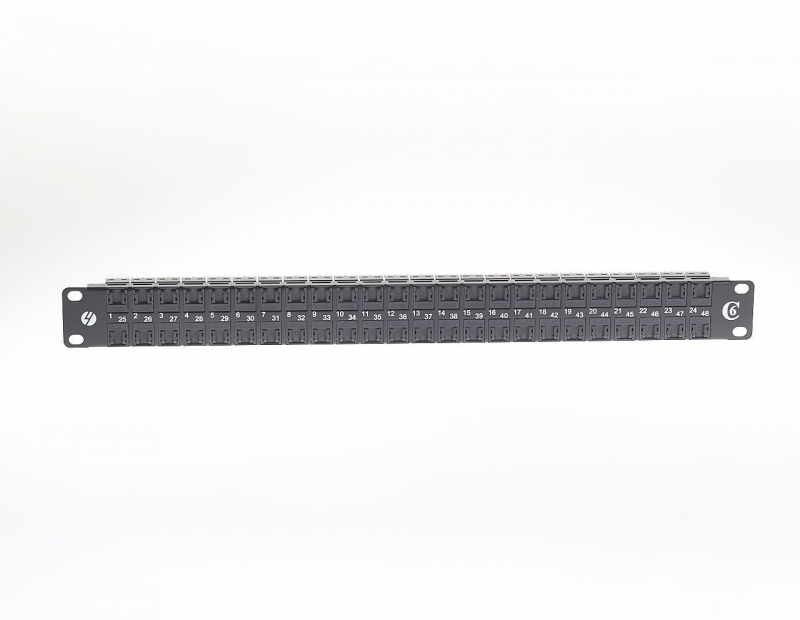

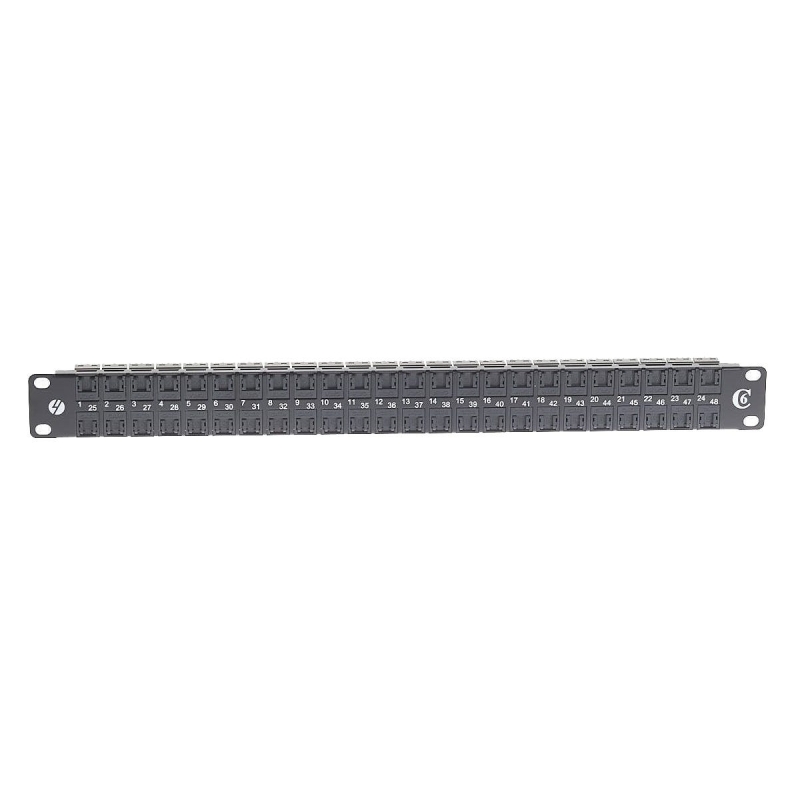

Cat 6 1RU 48 Port Patch Panel - Universal Termination
Patch Panels are the backbone of a structured cabling solution and we understand the importance of installing quality products. Unique to 4Cabling, these Cat 6 RJ45 48 Port Keystone Style Patch Panels provide a fast and simple way to terminate. With the built-in cable management and write-on labels, organising your cabinet will no longer be a hassle. The Cat 6 1RU 48 Port Patch Panel is supplied with a plastic cable management rail which keeps the installation neat and tidy as well as reducing strain on the cables. The main advantage of using the Keystone Jack Patch Panel is that the outlets are easily replaceable so if an outlet gets damaged there is no need to replace the entire patch panel - simply replace the individual jack.
FEATURES
- T-568A/B Wiring
- RJ45 complies with FCC Part 68 Standard
- 110/KATT Dual IDC connector compatible
- Provides termination for 22-26 AWG.
- Can be terminated using both a KATT & 110 Tool.
- Patented dust covers.
- Provides termination for 22-26 AWG.
- Cable Management lacing supplied with the panel.
- Contacts are 50u” gold-plated
- Jack insertion life >750 mating cycles
- IDC insertion life cycles >250 mating cycles
- Operating Temperature: -40 - +60 C
- Contact Resistance: 20m ohm
- Current Rating 1.5Amps
- DC Resistance: Max. 0.1 ohm
- Insulation Resistance: 500m ohm
- Dielectric Withstanding Voltage: 1000V
- ROHS Compliant
The Patch Panels comply with the following standards:
- TIA/EIA 568-B-2.1
- ISO/IEC 11801
- EN 50173-1:2002
- UL cUL Listed
- EIA-310-D
- Delta EC
- ACMA Approved (N-Tick)
