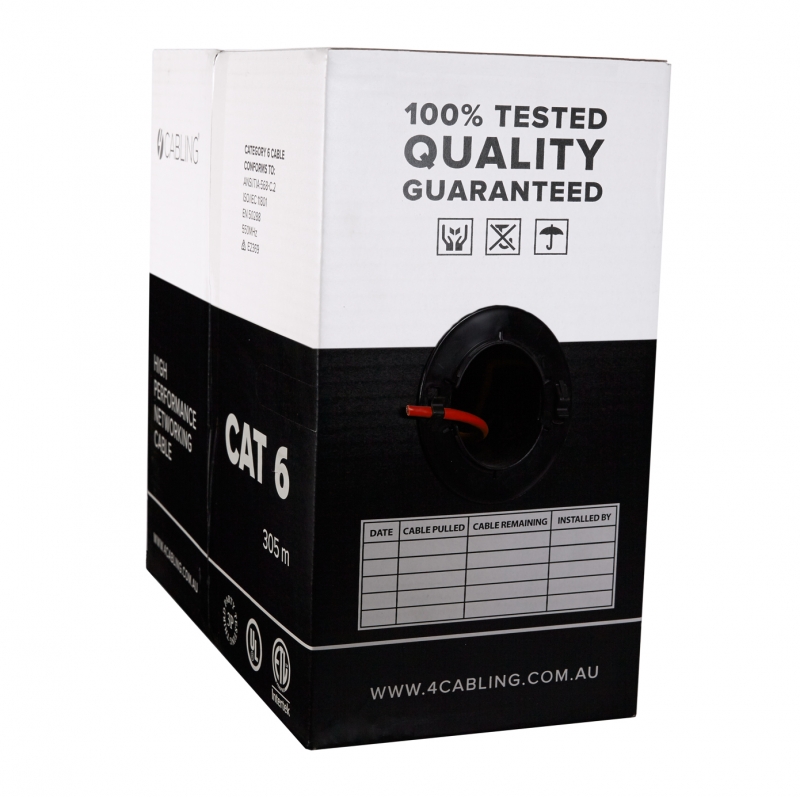

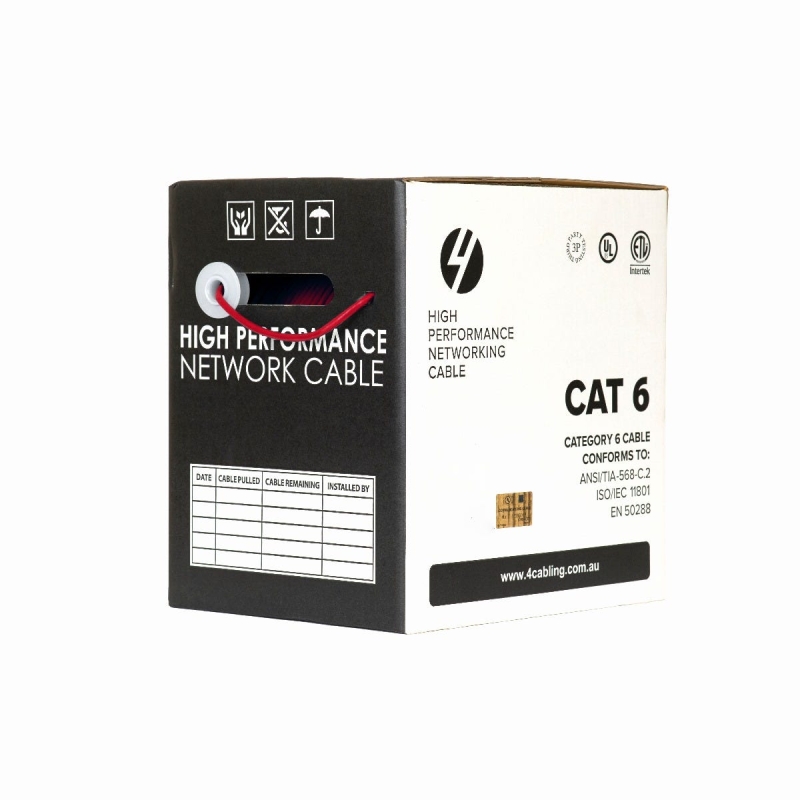

CAT6 Ethernet 305m Cable Reel Box. Utp LAN Cable With Solid Conductor. Red SLD.C6UTP.RED.R
SKU
263503
Brand
MPN
SLD.C6UTP.RED.R
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$247.00
Buy Now And Earn 247 Reward Points!
CAT6 Ethernet 305m Cable Reel Box. UTP LAN Cable with Solid Conductor. Red
Cat 6 Ethernet Cables allow for better signal to noise ratio with minimal loss - which translates to faster and more reliable networks for today 's applications.
Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5e and Category 3 cable standards.
Compared with Cat-5 and Cat-5e, Cat-6 ethernet cable features more stringent specifications for crosstalk and system noise. The cable standard provides the performance of up to 550 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).
APPLICATIONS:
Gigabit Ethernet, Multimedia, video, voice & data
Horizontal wiring in Local Area Networks (LAN)
550MHz Broadband Video
CABLE SPECIFICATIONS
Cable Type: Cat 6
Connectors: Unterminated
Length: 305m (1000ft)
Colour: Red
Jacket Material: PVC
Diameter: 6.2mm
Max. Rated Operating Temperature: 75°C
FEATURES
Unterminated Cat 6 in Reel Box
PVC Outer Jacket
Metre Marked
305m Reel Box
23 AWG
CERTIFICATIONS
UL listed
EIA/TIA and RCM approved
ANSI/TIA/EIA 568-B.2-1 CAT.6
ISO/IEC 11801 CLASS E, 2nd Edition
IEC 61156-6
CENELEC EN 50173-1 CENELEC EN 50288-5-1
CENELEC EN 50288-5-2
Flame Retardancy is verified according to IEC 60332-1-2
RoHS compliance the European Union issued Directive 2002/95/EC
WARRANTY
3-year warranty.
WHY 4CABLING?
Australia's leading importer & wholesaler of 19" server racks, copper, ethernet cable, fibre optic leads & structured networking products
ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier
Secure online shopping 24/7
A loyal customer base of 100k+ who trust us for their data & electrical needs
Over 3000 quality products in stock ready to go
All products are approved as per local Australian standards
Warranty & peace of mind return policy
Lightning fast delivery nationwide
Expert advice
Proudly 100% Australian owned & operated
Cat 6 Ethernet Cables allow for better signal to noise ratio with minimal loss - which translates to faster and more reliable networks for today 's applications.
Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5e and Category 3 cable standards.
Compared with Cat-5 and Cat-5e, Cat-6 ethernet cable features more stringent specifications for crosstalk and system noise. The cable standard provides the performance of up to 550 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).
APPLICATIONS:
Gigabit Ethernet, Multimedia, video, voice & data
Horizontal wiring in Local Area Networks (LAN)
550MHz Broadband Video
CABLE SPECIFICATIONS
Cable Type: Cat 6
Connectors: Unterminated
Length: 305m (1000ft)
Colour: Red
Jacket Material: PVC
Diameter: 6.2mm
Max. Rated Operating Temperature: 75°C
FEATURES
Unterminated Cat 6 in Reel Box
PVC Outer Jacket
Metre Marked
305m Reel Box
23 AWG
CERTIFICATIONS
UL listed
EIA/TIA and RCM approved
ANSI/TIA/EIA 568-B.2-1 CAT.6
ISO/IEC 11801 CLASS E, 2nd Edition
IEC 61156-6
CENELEC EN 50173-1 CENELEC EN 50288-5-1
CENELEC EN 50288-5-2
Flame Retardancy is verified according to IEC 60332-1-2
RoHS compliance the European Union issued Directive 2002/95/EC
WARRANTY
3-year warranty.
WHY 4CABLING?
Australia's leading importer & wholesaler of 19" server racks, copper, ethernet cable, fibre optic leads & structured networking products
ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier
Secure online shopping 24/7
A loyal customer base of 100k+ who trust us for their data & electrical needs
Over 3000 quality products in stock ready to go
All products are approved as per local Australian standards
Warranty & peace of mind return policy
Lightning fast delivery nationwide
Expert advice
Proudly 100% Australian owned & operated
Specifications
STANDARD COMPLIANCES
All Proposed Category 6 requirements as per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards.
ANSI/TIA/EIA 568-B.2-1 CAT.6
ISO/IEC 11801 CLASS E, 2nd Edition IEC 61156-6
CENELEC EN 50173-1 CENELEC EN 50288-5-1,CENELEC EN 50288-5-2
Flame Retardancy is verified according to IEC 60332-1-2.
We implemented RoHS compliance for the requirement of European Union issued Directive 2002/95/EC.
CONSTRUCTION & CHARACTERISTICS
| Conductor | Material/Size | Bare Copper/23 AWG |
| Insulation | Material | HDPE |
| Thickness | Normal Avg.: 0.22 mm | |
| Diameter | Normal: 1.00 mm | |
| Colours | Blue/White-Blue Orange/White-Orange | |
| Green/White-Green Brown/White-Brown | ||
| Elongation | Min. 300% | |
| Tensile Strength | Min. 1.682 Kg/mm2 | |
| Sheath | Material | PVC |
| Thickness | Average: 0.50 mm | |
| Diameter | 6.3 ± 0.3 mm | |
| Colour | Assorted upon request | |
| Elongation | Min. 100% | |
| Tensile Strength | Min. 1.407 Kg/mm2 | |
| Aging at 100°C for 168Hrs | Min. elongation retention:50% Min. tensile strength retention:75% | |
| Marking | CAT.6 UTP ISO/IEC 11801 & EN 50288 & TIA/EIA-568-B.2-1 ELT/3P VERIFIED - 23AWGX4P SOLID TYPE CM (UL) c(UL) E164469XXXXXXM | |
| or as customer request. | ||
| Flame Test | Burning five times, every time is less than 60 seconds and paper flag can't be burned. | |
APPROVALS
- UL/cUL Listed
- ELT/3P Certified ANSI/TIA/EIA-568-B.2-1 Category 6 testing safety/performance requirements.
APPLICATIONS
- 000BASE-Tx Gigabit Ethernet
- 10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3)
- 100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM
- 550MHz Broadband Video
- Voice, T1, ISDN
ELECTRICAL PERFORMANCES
| Spark Test | 2000 ± 250 V ac | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dielectric Strength | 2500 V dc / 3 seconds | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Insulation Resistance Test | Min. 150 MΩ/Km | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Conductor Resistance | Max.9.38Ω/100m at 20°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resistance Unbalance | Max. 2% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacitance Unbalance | Max. 160 pF/100m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mutual Capacitance | Max. 5600 pF/100m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The asterisked (*) values are for information only. The minimum Next coupling loss for any pair combination at room temperature is to be greater than the value determined using the formula:
NEXT(f MHZ) ≥ NEXT(0.772)-15LOG10(f MHZ/0.772)
CONFIGURATION
CAT6 Ethernet 305m Cable Reel Box. UTP LAN Cable with Solid Conductor. Red
