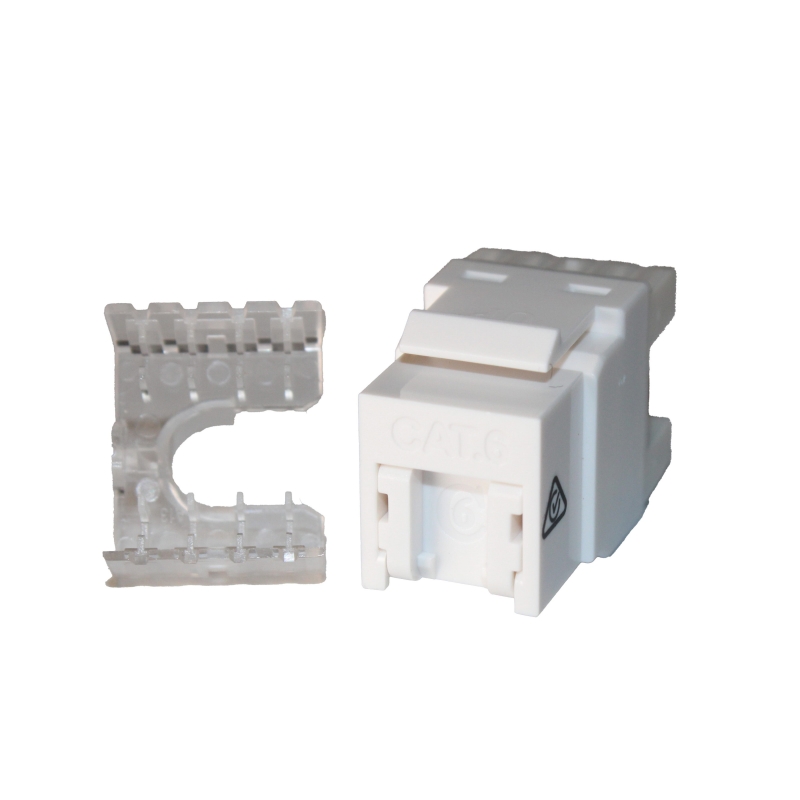

CAT6 RJ45 Keystone Jack | 10 Pack White

Compatible with keystone face plates, surface mount boxes and patch panels. Can be used with Australian HPM and Clipsal plates with the use of a bezel. Unique patented removable dust caps are handy to protect your outlets when not in use.

FEATURES
Dual T568A and T568B Wiring
RJ45 Complies with FCC Part 68 Standard
Can be terminated with both a KATT & 110 Punch Down Tool
Provides termination for 22-26 AWG Wire
Unshielded
SPECIFICATIONS
Contact: 0.46mm Diameter Phosphor Bronze Gold Plated over Nickel
Gold-Plating: 1.27um/50u inch
Colour: White
Jack insertion life: > 750 mating cycles
IDC insertion life: > 250 mating cycles
Operating temperature: -40 to + 60°C
Contact resistance: 20m ohm
DC Current rating: 1.5Amps
DC resistance: Max 0.1 ohm
Insulation Resistance: 500 ohm
Dielectric withstanding voltage: 1000v
WARRANTY

3-years limited warranty
