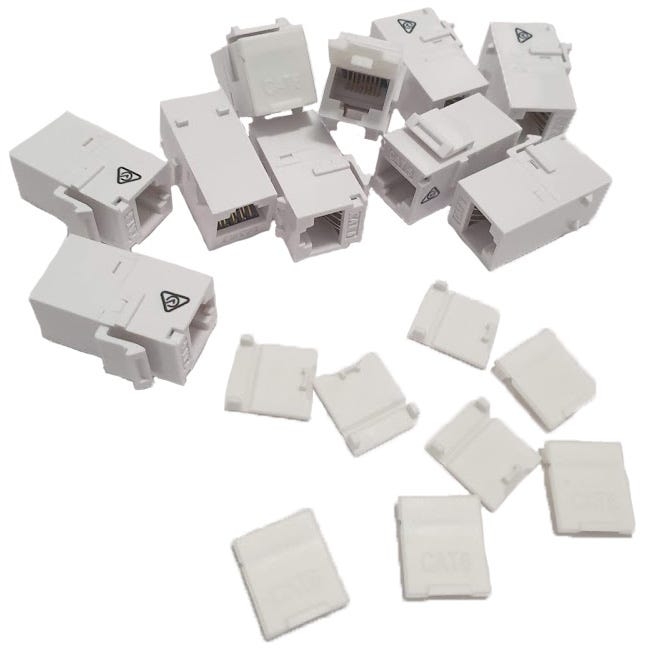

Cat 6 Rj45 Snap In Keystone Coupler. Pack Of 10 005.005.0002
SKU
278628
Brand
MPN
005.005.0012
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$75.00
Buy Now And Earn 75 Reward Points!
DETAILS

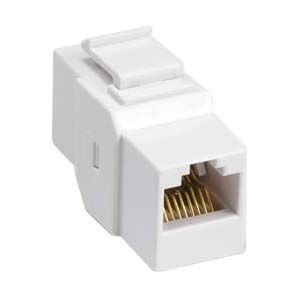

CAT 6 RJ45 SNAP-IN KEYSTONE COUPLER. QTY 10
CAT6 Unshielded Snap In coupler with for use with keystone patch panels or keystone wall plates. The snap-in coupler provides a full range of solution for voice, home networking, audio, video and more.
4Cabling CAT6 UTP snap-in coupler is compliant with Australian Standard AS/CA S008:2010
FEATURES:
- RCM compliant
- ROHS compliant
- For use with CAT6 Ethernet cables.
- Fit to Australian wall-plates by using a Bezel.
- The 1-1 wiring configuration is compatible with both T568A and T568B wiring schemes.
- Allows ready-made CAT6 patch leads to be used in fixed installations eliminating the use of solid cable, IDC terminations and tools.
SPECIFICATIONS:
- Colour: White
- Socket: RJ45
- Housing: ABS plastic
- Jack insertion life >750 mating cycles
- Operating temperature: -40°C to +60°C
- Contact: Phosphor bronze with 50µ gold plating
- Dimensions (outer) W16.7 x H22.15 x D30.26mm
ELECTRICAL SPECIFICATIONS:
- Contact resistance: 20mΩ
- DC current rating: 1.5A
- DC resistance: Max. 0.1Ω
- Insulation resistance: 500mΩ
- Dielectric withstanding voltage: 1000V
WARRANTY:
- 3 year
SPECIFICATIONS:
- Colour: White
- Socket: RJ45
- Housing: ABS plastic
- Jack insertion life >750 mating cycles
- Operating temperature: -40°C to +60°C
- Contact: Phosphor bronze with 50µ gold plating
- Dimensions (outer) W16.7 x H22.15 x D30.26mm
ELECTRICAL SPECIFICATIONS:
- Contact resistance: 20mΩ
- DC current rating: 1.5A
- DC resistance: Max. 0.1Ω
- Insulation resistance: 500mΩ
- Dielectric withstanding voltage: 1000V
4Cabling CAT6 Keystone Coupler. Pack of 10 Cat 6 Snap coupler for use with Keystone patch panels or Keystone wall plates. This is pack of 10. Features Allows ready-made Cat 6 patch cords to be used in fixed installations eliminating the use of solid cable, IDC terminations and tools. Can also be fitted to Australian HPM or Clipsal wall-plates by using a Bezel. The 1-1 wiring configuration is compatible with both T568A and T568B wiring schemes. Colour is white. Warranty 1 Year limited Why 4Cabling?: 100% Aussie Owned and Operated Expert Advice and Sales Team Trusted by Over 100,000 Aussie Customers ISO 9001, NSW & QLD Government Approved Supplier Massive Stock Levels, Ready to Go Lightning Fast Delivery Nationwide Warranty & Easy Return Policy Secure Online Shopping 24/7
