4cabling Cat 6a Ftp Shielded Keystone Jack 010.005.1005
SKU
259254
Brand
MPN
010.005.1005
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $13.00 Regular Price $15.00
Buy Now And Earn 13 Reward Points!

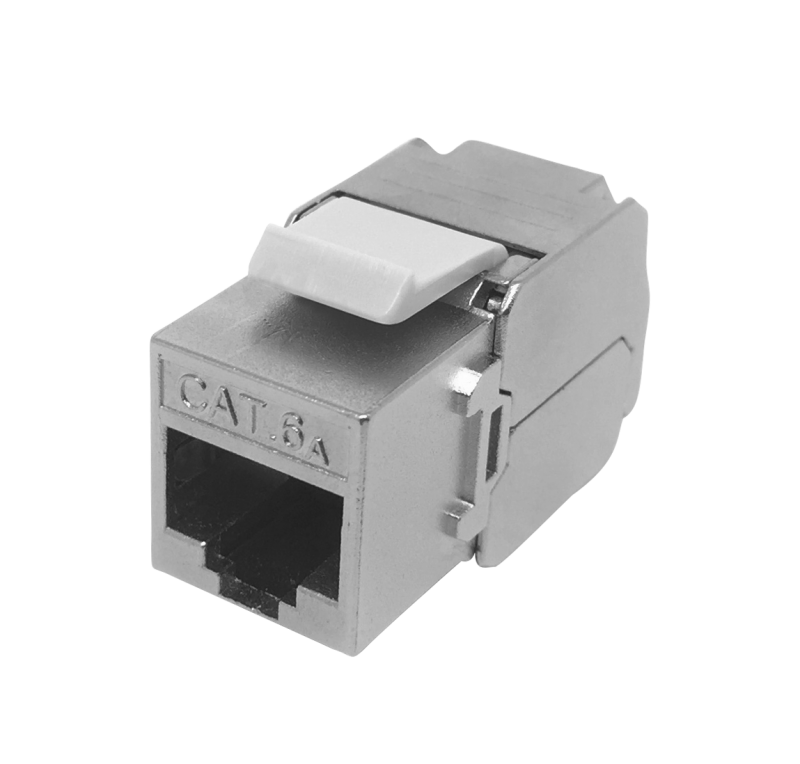

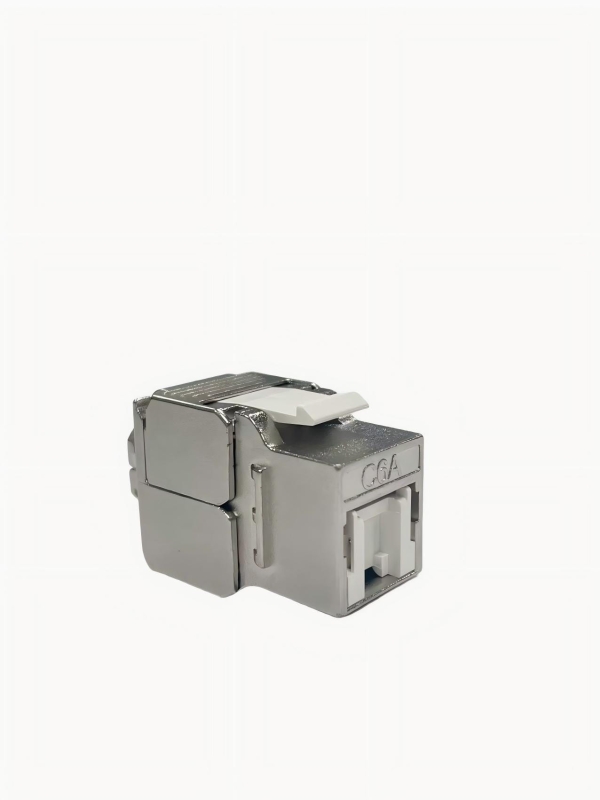

CAT 6A FTP SHIELDED KEYSTONE JACK - TOOLLESS 180 DEGREE IDC
This screened keystone jack features a mechanical design tuned to provide optimum signal quality. The tool-less design requires no punch down tool. Terminating shielded modular jack is now so much simpler - it's done in 90 seconds. 4Cabling - making Installation a breeze!
For use with shielded Ethernet cable.
Suitable to use with 4Cabling CAT6A FTP Keystone Jack Crimp Tool 001.006.0500
FEATURES
- Compatible both T568A and T568B wiring schemes
- Cat6A RJ-45 Jack is engineered to provide full shield protection and reliability, supporting up to 10G Ethernet
- Tool-free type, easy installation
- For shielded Ethernet cable installation
- Compatible with 24 port applications in 1U, as well as high-density 48 port panels
- Easily snaps in and out of patch panels, surface boxes or other applications
- UL Certified & RoHS Compliant
- 50U" gold plating
- With two caps in the design, use a punch down or go tool-free
WARRANTY
1-year limited warranty.
WHY 4CABLING?
- Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products
- ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier
- Secure online shopping 24/7
- A loyal customer base of 100k+ who trust us for their data & electrical needs
- Over 3000 quality products in stock ready to go
- All products are approved as per local Australian standards
- Warranty & peace of mind return policy
- Lightning fast delivery nationwide
- Expert advice
- Proudly 100% Australian owned & operated
pecifications
- Material: PC/ABS, Phosphor Bronze with NIckel plate
- Contact Area Material: Gold plated
- IDC Housing Material: ABS
- Suitable for 23-26 AWG solid core cable
- Insertion Force: 900gms for 8 contacts
- The sticker colour codes combine wirings of T568A
- >Retention Strength: 7.7kgs between Jack and Plug
- Operation Temperature: -30 C to 60 C
- Durability: Jack: 750 cycles plug to jack matting and matting; Insertion cycles at 20 cycles/minute max; Contact resistance test per 100 cycles; IDC Max 200 punching times
