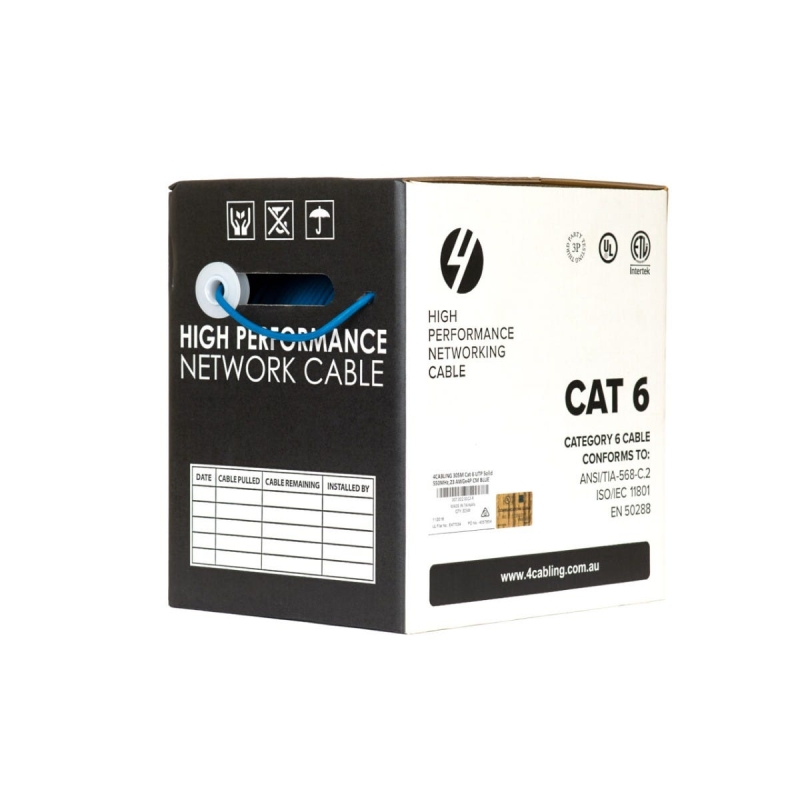

4Cabling Cat6 Ethernet 305M Cable Reel Box. Solid Conductor. Blue Sld.C6Utp.Blue.R

SKU
278620
Brand
MPN
SLD.C6UTP.BLUE.R
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $182.00 Regular Price $184.00
Buy Now And Earn 182 Reward Points!

DETAILS

CAT 6 ETHERNET CABLE WITH SOLID CONDUCTORS 305M REEL BOX - BLUE

Cat 6 Ethernet Cables allow for better signal to noise ratio with minimal loss - which translates to faster and more reliable networks for today’s applications.

Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5e and Category 3 cable standards.

Compared with Cat-5 and Cat-5e, Cat-6 ethernet cable features more stringent specifications for crosstalk and system noise. The cable standard provides the performance of up to 550 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).

Applications:

  • Gigabit Ethernet, Multimedia, video, voice & data
  • Horizontal wiring in Local Area Networks (LAN)
  • 550MHz Broadband Video

CABLE SPECIFICATIONS

  • Cable Type: Cat 6
  • Connectors: Unterminated
  • Length: 305m (1000ft)
  • Colour: Blue
  • Jacket Material: PVC
  • Diameter: 6.2mm

FEATURES

  • Unterminated Cat 6 in Reel Box
  • PVC Outer Jacket
  • Metre Marked
  • 305m Reel Box
  • 23 AWG

CERTIFICATIONS

  • UL listed
  • EIA/TIA and ACMA approved
  • ANSI/TIA/EIA 568-B.2-1 CAT.6
  • ISO/IEC 11801 CLASS E, 2nd Edition
  • IEC 61156-6
  • CENELEC EN 50173-1 CENELEC EN 50288-5-1
  • CENELEC EN 50288-5-2
  • Flame Retardancy is verified according to IEC 60332-1-2
  • RoHS compliance the European Union issued Directive 2002/95/EC





WARRANTY

  • 3-year warranty.

SPECIFICATIONS

STANDARD COMPLIANCES

All Proposed Category 6 requirements as per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards.
ANSI/TIA/EIA 568-B.2-1 CAT.6
ISO/IEC 11801 CLASS E, 2nd Edition IEC 61156-6
CENELEC EN 50173-1 CENELEC EN 50288-5-1,CENELEC EN 50288-5-2
Flame Retardancy is verified according to IEC 60332-1-2.
We implemented RoHS compliance for the requirement of European Union issued Directive 2002/95/EC.

CONSTRUCTION & CHARACTERISTICS
Conductor Material/Size Bare Copper/23 AWG
Insulation Material HDPE
Thickness Normal Avg.: 0.22 mm
Diameter Normal: 1.00 mm
Colours Blue/White-Blue Orange/White-Orange
Green/White-Green Brown/White-Brown
Elongation Min. 300%
Tensile Strength Min. 1.682 Kg/mm2
Sheath Material PVC
Thickness Average: 0.50 mm
Diameter 6.3 ± 0.3 mm
Colour Assorted upon request
Elongation Min. 100%
Tensile Strength Min. 1.407 Kg/mm2
Aging at 100°C for 168Hrs Min. elongation retention:50%
Min. tensile strength retention:75%
Marking CAT.6 UTP ISO/IEC 11801 & EN 50288 & TIA/EIA-568-B.2-1
ELT/3P VERIFIED - 23AWGX4P SOLID TYPE CM (UL)
c(UL) E164469XXXXXXM
or as customer request.
Flame Test Burning five times, every time is less than 60
seconds and paper flag can't be burned.
APPROVALS
  • UL/cUL Listed
  • ELT/3P Certified ANSI/TIA/EIA-568-B.2-1 Category 6 testing safety/performance requirements.
APPLICATIONS
  • 000BASE-Tx Gigabit Ethernet
  • 10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3)
  • 100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM
  • 550MHz Broadband Video
  • Voice, T1, ISDN
ELECTRICAL PERFORMANCES
Spark Test 2000 ± 250 V ac
Dielectric Strength 2500 V dc / 3 seconds
Insulation Resistance Test Min. 150 MΩ/Km
Conductor Resistance Max.9.38Ω/100m at 20°C
Resistance Unbalance Max. 2%
Capacitance Unbalance Max. 160 pF/100m
Mutual Capacitance Max. 5600 pF/100m
Impedance 64KHz 125Ω ± 20%
1~250Mhz 100Ω ± 15%
Attenuation &
Near End Cross Talk
Frequency
(MHz)
Attenuation
(db/100meters at
20°C),Max.
NEXT
(dB), Min
Power Sum
(dB), Min
1MHz -- 74.3* 64.0*
4 MHz 3.8* 65.3* 63.3*
10 MHz 6.0* 59.3* 57.3*
16 MHz 7.6* 56.2* 54.2*
20 MHz 8.5* 54.8* 52.8*
31.25 MHz 10.7* 51.9* 49.9*
62.5 MHz 15.5* 47.4* 45.4*
100 MHz 19.9* 44.3* 42.3*
150 MHz 25.3* 41.4* 39.4*
200 MHz 29.2* 39.8* 37.8*
250 MHz 33.0* 38.3* 36.3*

The asterisked (*) values are for information only. The minimum Next coupling loss for any pair combination at room temperature is to be greater than the value determined using the formula:
NEXT(f MHZ) ≥ NEXT(0.772)-15LOG10(f MHZ/0.772)
