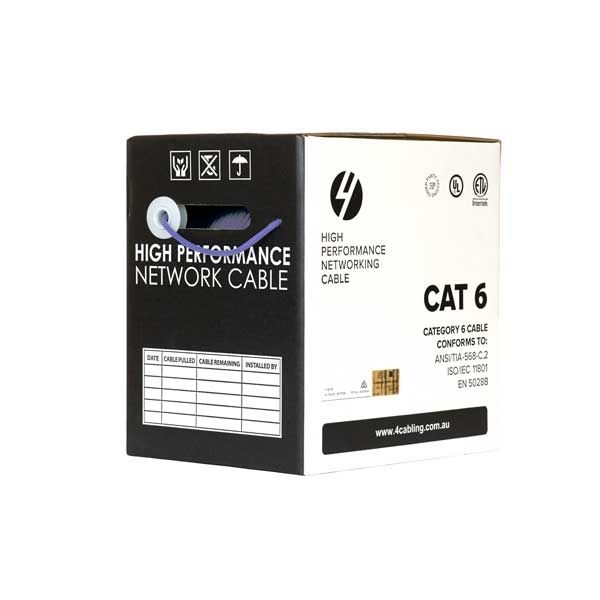

main product photo

Cat6 Ethernet 305M Cable Reel Box. Solid Conductor. Purple Sld.C6Utp.Purple.R

SKU
283934
Brand
4cabling
Manufacturer Link
MPN
SLD.C6UTP.PURPLE.R
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$215.00
Buy Now And Earn 215 Reward Points!
Add to Compare

DETAILS

CAT 6 ETHERNET CABLE WITH SOLID CONDUCTORS 305M REEL BOX - PURPLE

Cat 6 Ethernet Cables allow for better signal to noise ratio with minimal loss - which translates to faster and more reliable networks for today’s applications.

Category 6 cable, commonly referred to as CAT6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5e and Category 3 cable standards.

Compared with Cat-5 and Cat-5e, Cat-6 ethernet cable features more stringent specifications for crosstalk and system noise. The cable standard provides the performance of up to 550 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).

Stay ahead of the game with reliable cable from 4Cabling.

APPLICATIONS:

  • Gigabit Ethernet, Multimedia, video, voice & data
  • Horizontal wiring in Local Area Networks (LAN)
  • 550MHz Broadband Video

CABLE SPECIFICATIONS:

  • Cable Type: Cat 6
  • Connectors: Unterminated
  • Length: 305m (1000ft)
  • Jacket Material: PVC
  • Diameter: 6.2mm
  • Colour: Purple

FEATURES:

  • 23 AWG
  • Metre Marked
  • 305m Reel Box
  • PVC Outer Jacket
  • Unterminated Cat 6 in Reel Box

CERTIFICATIONS:

  • UL listed
  • IEC 61156-6
  • EIA/TIA and ACMA approved
  • ANSI/TIA/EIA 568-B.2-1 CAT.6
  • ISO/IEC 11801 CLASS E, 2nd Edition
  • CENELEC EN 50173-1 CENELEC EN 50288-5-1
  • CENELEC EN 50288-5-2
  • Flame Retardancy is verified according to IEC 60332-1-2
  • RoHS compliance the European Union issued Directive 2002/95/EC

WARRANTY

  • 3-year warranty.

WHY 4CABLING?:

4Cabling is Australia’s leading importer & wholesaler of 19” server racks, copper cable, fibre optic leads & structured networking products.

  • Expert advice
  • Secure 24/7 online shopping
  • Lightning fast delivery nationwide
  • Warranty & peace of mind return policy
  • Loyal customer base of 100k+ who trust us for their data & electrical needs
  • ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier
  • All products are approved as per local Australian standards
  • Over 3000 quality products in stock ready to go
  • Proudly 100% Australian owned & operated


NEED HELP?

Email sales@4cabling.com.au or phone 1300 855 235 to talk with one of our expert advisers.

SPECIFICATIONS

COMPLIANCES

  • ANSI/TIA/EIA 568-B.2-1 CAT.6
  • ISO/IEC 11801 CLASS E, 2nd Edition IEC 61156-6
  • CENELEC EN 50173-1 CENELEC EN 50288-5-1,CENELEC EN 50288-5-2
  • Flame Retardancy is verified according to IEC 60332-1-2.
  • RoHS compliance for the requirement of the European Union issued Directive 2002/95/EC.

CONSTRUCTION & CHARACTERISTICS

Conductor Material/Size Bare Copper/23 AWG
Insulation Material HDPE
Thickness Normal Avg.: 0.22 mm
Diameter Normal: 1.00 mm
Colours Blue/White-Blue Orange/White-Orange
Green/White-Green Brown/White-Brown
Elongation Min. 300%
Tensile Strength Min. 1.682 Kg/mm2
Sheath Material PVC
Thickness Average: 0.50 mm
Diameter 6.3 ± 0.3 mm
Colour Assorted upon request
Elongation Min. 100%
Tensile Strength Min. 1.407 Kg/mm2
Aging at 100°C for 168Hrs Min. elongation retention:50%
Min. tensile strength retention:75%
Marking CAT.6 UTP ISO/IEC 11801 & EN 50288 & TIA/EIA-568-B.2-1
ELT/3P VERIFIED - 23AWGX4P SOLID TYPE CM (UL)
c(UL) E164469XXXXXXM
or as customer request.
Flame Test Burning five times, every time is less than 60
seconds and paper flag can't be burned.

APPROVALS

  • UL/cUL Listed
  • ELT/3P Certified ANSI/TIA/EIA-568-B.2-1 Category 6 testing safety/performance requirements.

APPLICATIONS

  • 000BASE-Tx Gigabit Ethernet
  • 10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3)
  • 100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM
  • 550MHz Broadband Video
  • Voice, T1, ISDN

ELECTRICAL PERFORMANCES

Spark Test 2000 ± 250 V ac
Dielectric Strength 2500 V dc / 3 seconds
Insulation Resistance Test Min. 150 MΩ/Km
Conductor Resistance Max.9.38Ω/100m at 20°C
Resistance Unbalance Max. 2%
Capacitance Unbalance Max. 160 pF/100m
Mutual Capacitance Max. 5600 pF/100m
Impedance 64KHz 125Ω ± 20%
1~250Mhz 100Ω ± 15%
Attenuation &
Near End Cross Talk		 Frequency
(MHz)		 Attenuation
(db/100meters at
20°C),Max.		 NEXT
(dB), Min		 Power Sum
(dB), Min
1MHz -- 74.3* 64.0*
4 MHz 3.8* 65.3* 63.3*
10 MHz 6.0* 59.3* 57.3*
16 MHz 7.6* 56.2* 54.2*
20 MHz 8.5* 54.8* 52.8*
31.25 MHz 10.7* 51.9* 49.9*
62.5 MHz 15.5* 47.4* 45.4*
100 MHz 19.9* 44.3* 42.3*
150 MHz 25.3* 41.4* 39.4*
200 MHz 29.2* 39.8* 37.8*
250 MHz 33.0* 38.3* 36.3*

The asterisked (*) values are for information only. The minimum Next coupling loss for any pair combination at room temperature is to be greater than the value determined using the formula:
NEXT(f MHZ) ≥ NEXT(0.772)-15LOG10(f MHZ/0.772)
