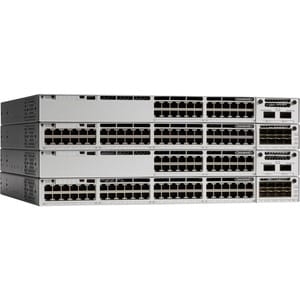

main product photo

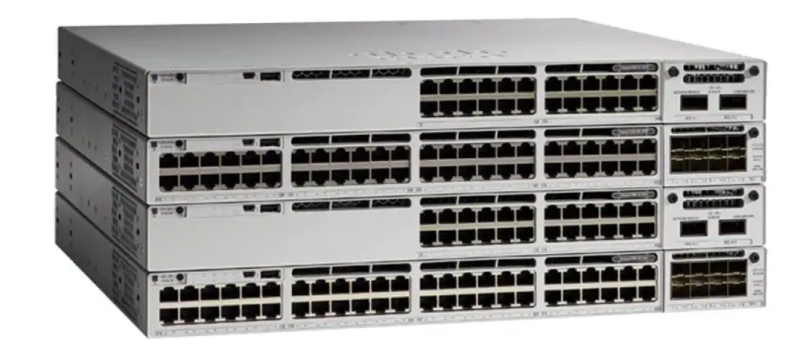

Cisco Catalyst 9300 48-port PoE+ Network Essentials C9300-48P-E

SKU
296654
Brand
Cisco
Manufacturer Link
MPN
C9300-48P-E
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$8,320.00
Buy Now And Earn 8320 Reward Points!
Add to Compare
The Cisco Catalyst 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access
DIMENSIONS
Depth (mm): 445.0
Height (mm): 44.0
Width (mm): 445.0
Weight (Kg): 7.6
OTHER FEATURES
Layer Support: 2 - 3
Management Features: * Element management * Unified management of wired and wireless networks
Memory: 8 GB
Network Technology: 10/100/1000
PoE Enabled: Yes
MTBF: 277770 hours
VLAN: * VLAN IDs: 4000 * Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning tree (IEEE 802.1w) reconvergence on a per-VLAN spanning tree basis, providing simpler configuration than MSTP. In both MSTP and PVRST+ modes, stacked units behave as a single spanning tree node.
Security Features: * MACsec-256 * Encrypted Traffic Analytics (ETA)
Quality of Service (QoS): * Static QoS configuration and monitoring * QoS scale entries: 5120
Diagnostics LED: * "AC OK": Input power to the power supply is OK * "PS OK": Output power from the power supply is OK
Multi-Cast Features: * Multicast routing scale: 8000 * Multicast DNS (mDNS) gateway
Other Features: * Up to 480 Gbps of local stackable switching bandwidth * Flexible downlink options with 1G and Multigigabit links * Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy
PERFORMANCE
Switching Fabric: 256 Gbps
Forwarding Rate: 190.48 Mpps
Packet Buffer: 16 MB
Mac Address: 32K entries
Jumbo Frame Size: 9198 Bytes
PORTS
Gigabit Ethernet Port: Yes
No. of Ports: 48
Type: 10/100/1000
Console Ports: 1
Other Ports: 1 x RJ-45 ,1 x USB 3.0
POWER
Output Power: 437 Watt
PRODUCT
Brand Name: Cisco
Manufacturer Web Site: http://www.cisco.com
Product Line: Catalyst
Product Model: C9300-48P
Product Type: Switch
STACKING
Stacking Speed: 480 Gbps
