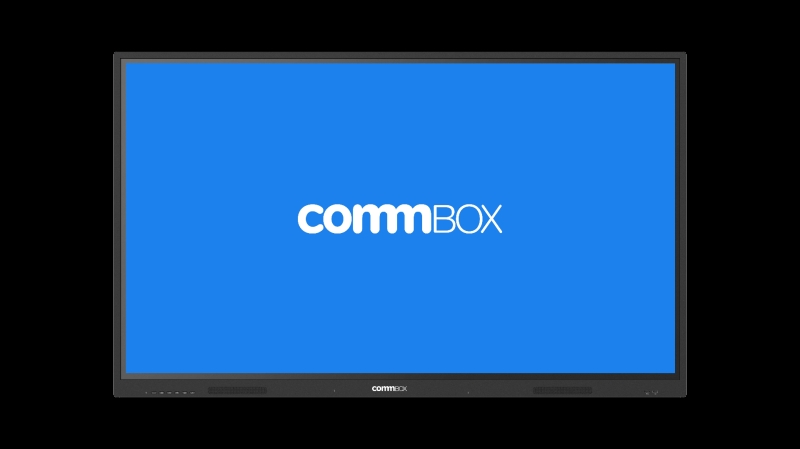

Commbox (CBIN86)86"4K LCD Interactive Display(Neo), 40-Pt Touch, Neocore Os, 5Y Wty CBIN86
SKU
439584
Brand
MPN
CBIN86
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$4,792.00
Buy Now And Earn 4792 Reward Points!
CommBox Neo is the simple, secure interactive display for classrooms, meeting rooms and training spaces.
No Android and no Wi-Fi, it stays predictable and easy to manage – plug in your laptop and start working. Neo gives you whiteboarding, annotation and USB saving built in, with no accounts, updates or subscriptions to slow you down.
The bright 4K anti-glare display, durable glass and precise touch are made for daily use. Neo connects to any device with USB-C, HDMI, DisplayPort and wireless sharing via CommBox Connect Lite. Designed in Australia and backed by a 5-year AU/NZ swap-out warranty, it delivers reliable interactivity you can deploy at scale – simple, secure and ready to go.
No Android and no Wi-Fi, it stays predictable and easy to manage – plug in your laptop and start working. Neo gives you whiteboarding, annotation and USB saving built in, with no accounts, updates or subscriptions to slow you down.
The bright 4K anti-glare display, durable glass and precise touch are made for daily use. Neo connects to any device with USB-C, HDMI, DisplayPort and wireless sharing via CommBox Connect Lite. Designed in Australia and backed by a 5-year AU/NZ swap-out warranty, it delivers reliable interactivity you can deploy at scale – simple, secure and ready to go.
| Led Size | 86" |
| Screen Type | LCD IPS 4K |
| Glass Type and Thickness | 3.2mm Tempered Glass Mohs level 7 |
| Glass Protection | Anti-Glare |
| Backlight Type | D-LED |
| Orientation | Landscape |
| Aspect Ratio | 16:9 |
| Resolution (H x V) | 3840 x 2160 |
| View Area (H x V) (mm) | 1895 x 1065 |
| Brightness (cd/m2) | 350 |
| Contrast Ratio | 1200:1 |
| LCD Refresh Rate | 60Hz |
| Viewing Angle | 178 Degrees |
| Response Time | 8ms |
| Life of Screen (Hrs) | > 30,000 |
| Operation Time (Days x Hrs) | 7 x 16 |
| Display Colours | 1.07B |
| Colour Gamat | 72% |
| Touch Type | Infrared Recognition |
| Touch Points | 40 |
| Touch Accuracy | 2mm |
| LCD Size | 65" |
| Touch Resolution (W x D) | 32768 x 32768 |
| Touch Tool | Finger, Passive Stylus, Eraser |
| Pen Type | 2 x Dual Tip Stylus |
| Speaker Type | Dual front facing |
| Sound channel | 2.0 |
| Speaker (W) | 2x20w |
| Operation System | CommBox Neo Core OS |
| RS232 Control | Yes |
| Wake on Lan | Yes |
| Power Requirements | 240V |
| Power Consumption | 215W |
| Power Consumption w Slot in PC | 425W |
| Stand by | 0.5W |
| INPUT AND OUTPUTS | Front: 2x USB-A 2.0, 1x Sensor light, 6x Bezel buttons Back: 3x HDMI in, 1x USB A 2.0, 2x USB A 3.0, 2x USB-B Touch, 1x USB-C 65w charging, 1x Display Port, 1x Audio In, 1x Audio Out, 1x SPDIF, 2x LAN RJ45 (IN/.OUT), 1x OPS Slot |
| Operation Temperature (°C) | 0-40 |
| Operation Humidity (RH) | 10% - 90% |
| Storage Temperature (°C) | -20-60 |
| Storage Humidity (RH) | 10% - 90% |
| Altitude (m) | < 5000 |
| Housing | Aluminium/Metal Plate |
| Product Size (L x H x D) (mm) | 1957 x 1159.9 x 97 |
| Package Size (L x H x D) (mm) | 2110 x 1283 x 185 |
| Net Weight (kg) | 50.37 |
| Gross Weight (kg) | 64.2 |
| VESA | 800 x 400 |
| Thickness of machine and wall mount (mm) | 127.4 |
| Wall-hanging screw spec (mm) | M8 x25 |
| What's in the box | 2x AAA Batteries, 1x Remote, 2x Stylus, 1x 3m Powercord - AU/NZ, 1x 3m USB-C cable, 1x 3m HDMI cable, 1x Wall Bracket and Mounting Kit |
CommBox Neo is the simple, secure interactive display for classrooms, meeting rooms and training spaces.
