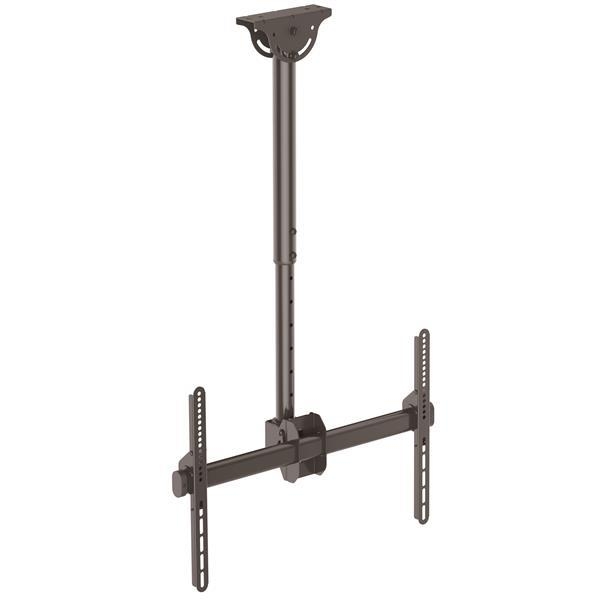

Startech Flat Screen Tv Ceiling Mount - Short Pole - Full Motion - Heavy Duty Steel - Ceiling Tv
QUICK OVERVIEW
Save space and create the ultimate viewing environment for your flat-screen television, by suspending it from the ceiling. This flat-screen TV ceiling mount supports VESA mount compatible TVs 32" to 70” in size. For maximum viewing versatility, the ceiling mount makes it easy to adjust the distance from the ceiling and offers a full-motion design that lets you change your screen position and angle.
Mount your TV in a prominent place, while saving space
The ceiling TV mount lets you mount your flat-panel LCD, LED or plasma TV in a prominent and comfortable viewing area while saving wall, desk and floor space. It’s ideal for use in corporate boardrooms, hotel lobbies, restaurants, bars and meeting spaces.
The heavy-duty steel TV ceiling mount is compatible with a wide selection of TVs, able to securely support a 32" to 70” display, with a weight capacity of up to 110 lb. (50 kg). To keep the cables concealed and organized, you simply run the cables through the cable management channel inside of the pole, exiting near the top.
Adjust the distance from the ceiling
With an adjustable pole length, the telescopic-style pole makes it easy to mount your display at the desired distance from the ceiling and works well with a range of ceiling heights. The robust steel pole can extend from a minimum of 22" to 35.8" (560 mm to 910 mm) at maximum length, with a total lift (height extension) of 13.7" (350 mm).
Swivel the ceiling TV mount to suit your ceiling type
The flat-screen TV ceiling mount is designed to accommodate a wide variety of ceiling types. The ceiling mount swivels, so you can adjust the mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60°), and pitched or horizontal (flat) ceilings. The extension pole also swivels + 180° / - 180° for optimum viewing.
Adjust your display for the ideal viewing angle
You can adjust your flat-screen TV to create a comfortable viewing angle, by tilting it (up to -25°) down towards your audience for optimum visibility. The full-motion mount lets you tilt or swivel your display around the pole, without using tools. The ceiling mount also features a 360° pan, which makes it easy to set up for viewing from any direction you choose.
Easy and secure setup
The hook-and-mount design of the TV ceiling mount makes setup fast and easy. You simply attach the vertical brackets, with built-in hooks, to the back of your TV. Once the brackets are attached, you can hang your TV securely onto the ceiling mount. The preset leveling adjustments ensure ideal positioning after hanging.
The FPCEILPTBSP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Safely and securely suspend your flat-screen TV from the ceiling for easy viewing in boardrooms, lobbies, lecture halls, classrooms and meeting spaces
- Keep your guests informed or entertained, ideal in hotels, restaurants and other hospitality venues
- Save wall and desk space in your home theater
Product Numbers
TechData Dis | 12578256 |
ASI Distribution USA | 195802 |
D and H | FPCEILPTBSP |
Ingram Micro USA | 8Q6554 |
Synnex US | STA-FPCEILPTBSP |
UPC Code | 065030870405 |
Hardware | |
# of Displays Supported | 1 |
Cable Management | Yes |
Mounting Options | Ceiling Mount |
VESA Hole Pattern(s) | 200x200 mm |
300x300 mm | |
400x200 mm | |
400x400 mm | |
600x400 mm | |
Wallmountable | No |
Packaging Information | |
Shipping (Package) Weight | 6.9 kg [15.2 lb] |
Performance | |
Anti-theft | No |
Display Rotation | 360? |
Height Adjustment | Yes |
Maximum Display Size | 70" |
Maximum Height | 910 mm [35.8 in] |
Minimum Display Size | 32" |
Minimum Height | 560 mm [22 in] |
Mounting Surface Thickness | 560 mm to 910 mm |
Swivel / Pivot | +180? to -180? |
Tilt | +0? / -25? |
Video Wall | No |
Weight Capacity (Per Display) | 50 kg [110.5 lb] |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel |
Product Height | 1150 mm [45.3 in] |
Product Length | 680 mm [26.8 in] |
Product Weight | 5 kg [11.1 lb] |
Product Width | 435 mm [17.1 in] |
What's in the Box | |
Included in Package | 6.3x55 mm screws |
bolts | |
ceiling mount and pole | |
circular washers | |
concrete anchor | |
extension pole | |
hex key | |
horizontal bracket | |
instruction manual | |
large spacers | |
M5x14 mm screws | |
M6x14 mm screws | |
M6x30 mm screws | |
M8x30 mm screws | |
M8x50 mm screws | |
mounting template | |
nuts | |
rectangular washers | |
small spacers | |
vertical brackets | |
wrench |
