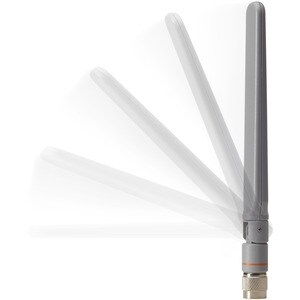

Cisco 2.4 Ghz 2dbi/ 5 Ghz 4dbi Ant. Air-ant2524dg-r=
Aironet Antenna Cisco Systems, Inc AIR-ANT2524DG-R
Dipole - 2 dBi, 4 dBi - RP-TNC
Product Type Antenna
Brand Name Cisco
Manufacturer Cisco Systems, Inc
Product Name Aironet Antenna
Product Line Aironet
Manufacturer Part Number AIR-ANT2524DG-R
Manufacturer Website Address www.cisco.com
Form Factor Dipole
Frequency 2.40 GHz5 GHz
Application/Usage Wireless Data Network
Gain 2 dBi - 2.40 GHz4 dBi - 5 GHz
Connectors RP-TNC
Standard Warranty 90 Day Limited
Aironet Antenna Cisco Systems, Inc AIR-ANT2524DG-R Cisco Wireless Antennas
Manufacturer: Cisco Systems, Inc
Mfg Number: AIR-ANT2524DG-R
General Information
Product Type Antenna
Brand Name Cisco
Manufacturer Cisco Systems, Inc
Product Name Aironet Antenna
Product Line Aironet
Manufacturer Part Number AIR-ANT2524DG-R
Manufacturer Website Address www.cisco.com
Physical Characteristics
Form Factor Dipole
Technical Information
Frequency 2.40 GHz
Frequency 5 GHz
Application/Usage Wireless Data Network
Gain 2 dBi - 2.40 GHz
Gain 4 dBi - 5 GHz
Interfaces/Ports
Connectors RP-TNC
Warranty
Standard Warranty 90 Day Limited
| Marketing Text | The next generation of Cisco Aironet 802.11n access points – the Cisco Aironet 3600e Series and 1550 Series – requires the use of dual-band external antennas to make them fully functioning units. As these access points take greater advantage of the multiple-input multiple-output (MIMO) features supported under the 802.11n standard, the number of radio transceivers per frequency band has increased. |
| PI Date | Sep 2012 |
| Brand Name | Cisco |
| Manufacturer Web Site | http://www.cisco.com |
| Product Type | Antenna |
| Typical Application | Indoor |
| Antenna Type | Dual Band |
| Band | Dual |
| Frequency | 2.4GHz |
| Gain | 2dBi |
| Input Impedance | 50Ohms |
| VSWR | 2:1 |
| Connector | RP-TNC |
| Depth (mm) | 168.5 |
| Weight (Grams) | 0.6 |
| Width (mm) | 21.0 |
| Device Colour | Gray |
