Cisco (4g-lte-antm-d=) 4g Ltearticulating Dipole Antenna 700mhz-2600mhz Bands 4g-lte-antm-d=
Overview

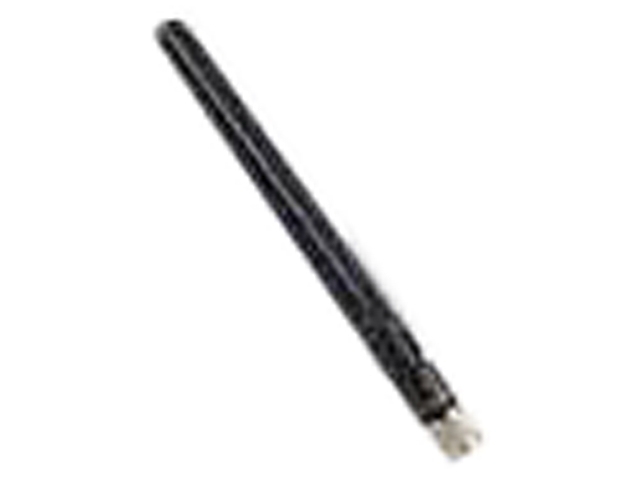

The 4G-LTE-ANTM-D omnidirectional dipole antenna is designed for indoor use with Cisco 4G and Cisco 3G wireless Integrated Services Routers Generation 2 (ISRs G2) and Enhanced High-Speed WAN Interface Cards (EHWICs).
The 4G-LTE-ANTM-D antenna is marked with a green band and the product ID (PID) to indicate that it supports 4G Long Term Evolution (LTE) networks. It has the following hardware features:
•
Articulating Joint—It can be rotated 360 degrees and is capable of maneuvering into three stop positions: 0 degrees, 45 degrees, and 90 degrees.
•Male threaded Neill-Concelman (TNC) Connector—It lets you directly mount the antenna to any Cisco 4G and Cisco 3G wireless Integrated Services Router (ISR) EHWIC with a TNC connector (Figure 1). The threads on the connector must comply with the ANSI 7/16-28 UNEF 2B thread specification.
Frequency Band Type: UHF
Frequency: 698 MHz to 806 MHz, 824 MHz to 894 MHz, 925 MHz to 960 MHz, 1.71 GHz to 1.89 GHz, 1.92 GHz to 1.98 GHz, 2.11 GHz to 2.17 GHz, 2.50 GHz to 2.69 GHz
Antenna Gain: 2 dBi
Impedance: 50 Ohm
Number of Connectors: 1
Connector Type: TNC
Compatibility:
Cisco 4G and Cisco 3G Wireless Integrated Services Routers Generation 2 (ISRs G2)
Enhanced High-Speed WAN Interface Cards (EHWICs)
Specifications
| Specification | Description |
|---|---|
| Maximum input power | 3W |
| Connector | TNC male |
| VSWR1 | 2.5:1 or less |
| Characteristic impedance | 50 ohm |
| Antenna base and radome color | Cisco Raven Black |
| Antenna dimensions | 9 (L) x 1.2 (W) x 7/16 in (D) |
| Operating temperature | -22° to 158°F (-30° to 70°C) |
| Operating frequency ranges | • • • • • • • |
| Maximum Peak Gain | 2 dBi |
